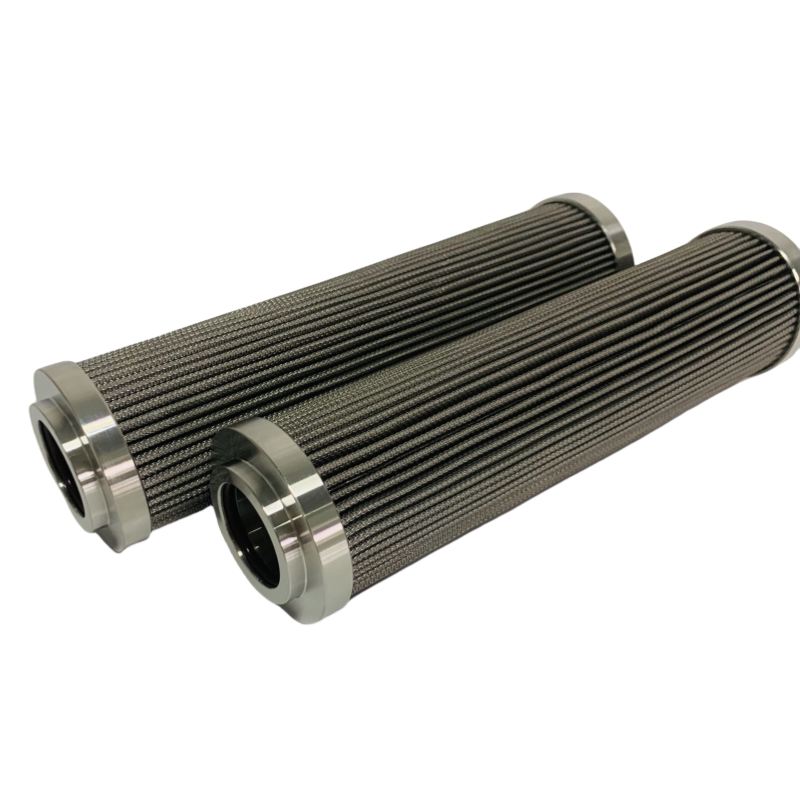

SFP10S Marine Oil Filter Element

SFP10S Marine Oil Filter Element Basic Information

1. Filtration Accuracy

Standard supply 0.01–500 µm, optional glass fiber 1–70 µm, metal mesh 3–400 µm, filter paper 5–40 µm; filtration ratio β≥1000 (ISO 16889).

2. Operating Pressure and Temperature

- Rated pressure ≤420 kg·f/cm² (≈41 MPa), custom-made up to 450 bar

- Operating temperature -30 ℃～+115 ℃ (general purpose), high-temperature type up to 120 ℃.

3. Flow Rate Range

Rated flow rate 2–2600 L/min; initial differential pressure ≤0.2 MPa, recommended replacement differential pressure 1 bar, maximum allowable 3.5 bar.

4. Filter Media and Structure

Folded cylindrical design; filter media options include glass fiber, stainless steel mesh, sintered felt/powder, polypropylene, and filter paper; iron outer shell, screw-on or flange-mounted, with optional bypass valve and blockage indicator.

5. Testing Standards

ISO 2941 (burst resistance), ISO 2942 (structural integrity), ISO 2943 (material compatibility), ISO 3723 (end load), ISO 3724 (fatigue), ISO 3968 (differential pressure-flow), ISO 4572/16889 (multiple passes).

6. Typical Applications

Marine main/auxiliary engine fuel and lubricating oil circuits; fuel-water separators; also suitable for high-pressure oil filtration in power plants, steel mills, tunnel boring machines, mining, petrochemical, chemical, textile, and engineering vehicles.
