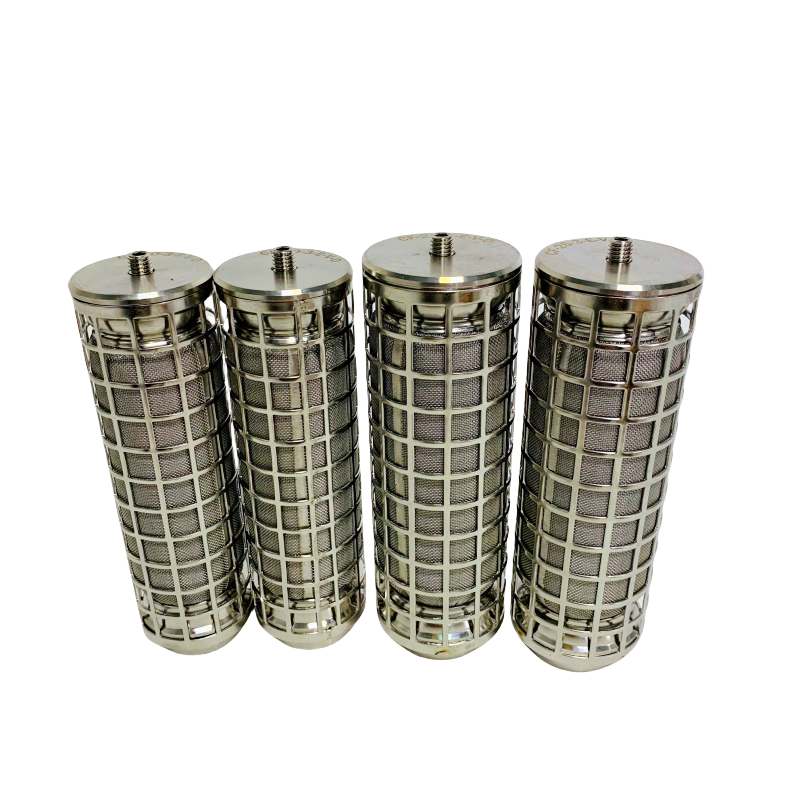

PF-25-10-E-V-0 hydraulic oil filter element
PF-25-10-E-V-0 hydraulic oil filter element
PF-25-10-E-V-0 Hydraulic Oil Filter Element Basic Information
1. Filtration Accuracy
Glass fiber 1–70 µm, metal mesh 3–400 µm, filter paper 5–40 µm, selectable according to system cleanliness requirements; filtration ratio β≥1000 (ISO 16889) [¹⁰⁶].
2. Operating Pressure and Temperature
- Rated pressure ≤450 bar (450 kg·f/cm²)
- Operating temperature -30 ℃～+120 ℃ [¹⁰⁶].
3. Flow Rate Range
Rated flow rate 6–9 100 L/min; initial differential pressure ≤0.2 MPa, recommended replacement with a differential pressure of 1 bar, maximum allowable 3.5 bar [¹⁰⁶].
4. Filter Media and Structure
Pleated fiberglass/metal mesh/sintered felt, iron housing, screw-on or flange mounting; available with bypass valve and clogging indicator [¹⁰⁶].
5. Testing Standards
ISO 2941 (burst resistance), ISO 2942 (structural integrity), ISO 2943 (material compatibility), ISO 3723 (end load), ISO 3724 (fatigue), ISO 3968 (differential pressure-flow), ISO 4572/16889 (multiple passes) [¹⁰⁶].
Leah Sales Manager
Email: [email protected]
Mob & WhatsApp & Wechat&Skype: (+86)19937372138
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
