  • Polypropy Lene Pleated Filter Cartidge

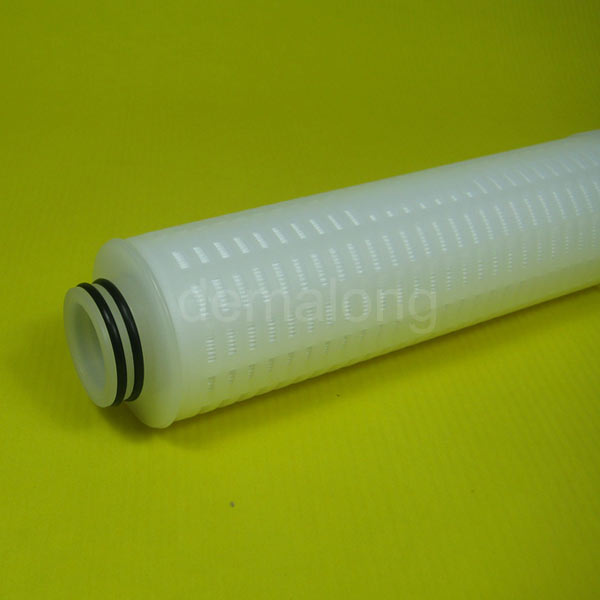

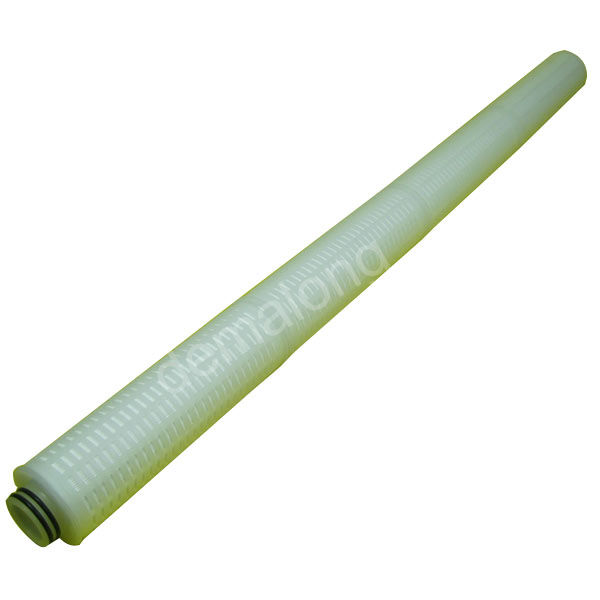

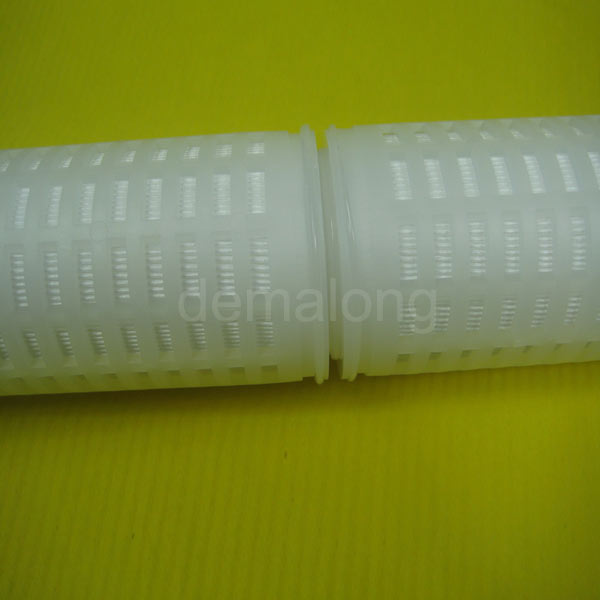

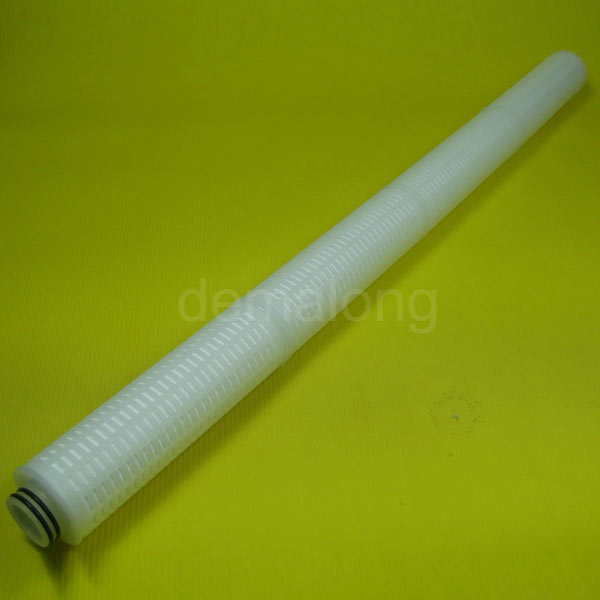

POLYPROPY LENE PLEATED FILTER CARTIDGE

We're here to help: Easy ways to get the answers you need.

send email get price

FOLLOW US:

  • Introduction
  • Technical Data
 PP Meltblown Filter Element

Introduction
PP meltblown filter element made of hot-melt entangled polypropylene microfiber, do not use any chemical adhesives, fiber bonding is formed in the space random from three-dimensional microporous structure, fabric collection surface, deep, coarse filter in one, As the fiber and density form high filtration precision and assimilative capacity in the diameter direction of the filter element, the pressure difference is small, deep filtration structure within the outer sparse density gradient pore size, strong pollutant that can remove suspended solids in the liquid flow effectively, particulates, rust and other impurities, high filtering effect, life is long.

Property

PP meltblown filter element aperture compact and uniform, filtration efficiency is high. Due to particle bridging phenomenon occurs in PP meltblown filter element pores, make less than pore blocking particles can be live, filtration efficiency is above 99%, PP meltblown filter element itself cleanness of water pollution, resist acid , alkali and other chemicals and organic solvents corrosion.

Specifications

Filtration precision: 0.5μm, 1μm, 3μm, 5μm, 10μm, 20μm, 30μm, 40μm, 50μm, 75μm

filter element Length: 10 ", 20", 30 ", 40", 50 ", 60"

filter element outter diameter: 63mm, 115mm

filter element inner diameter: 28mm

Maximum pressure: 21 ℃, 2.0bar

Highest temperature: 50 ℃

Application

Use for the livelihood of drinking water filter RO reverse osmosis filter

Used for industrial process acid liquid filtration

Filter industrial water, electroplating filter

Imaging liquid,filter ink

Sterile water, ultra pure water pre-filtration treatment

Chemical raw materials, organic solvent filtration
