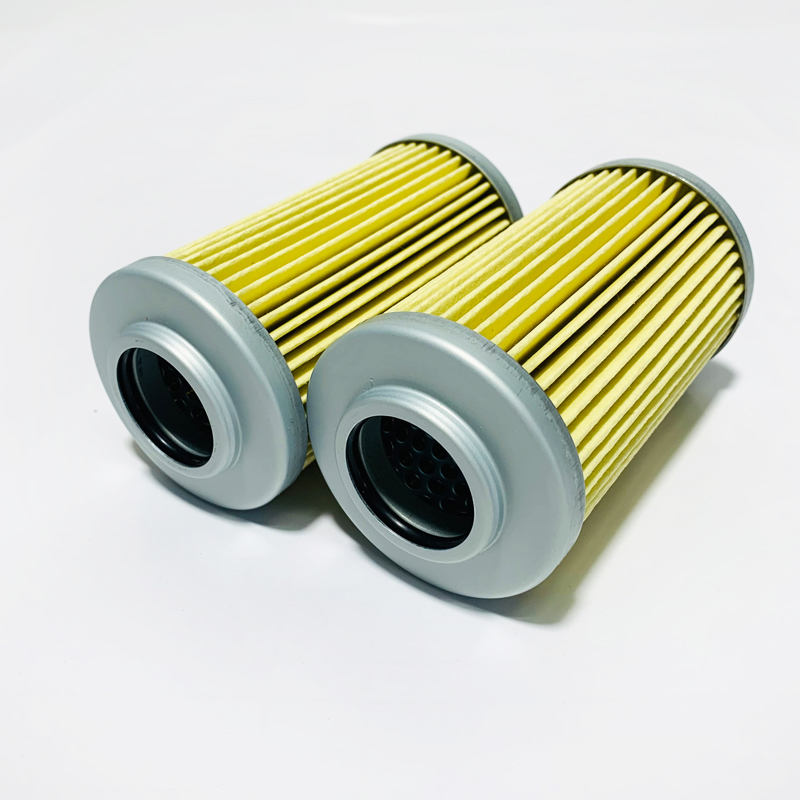

The basic information for the PAAF629330 fuel filter element (interchangeable part number WAR88679) is as follows:

1. Filtration Accuracy

Standard paper filter media: 10 µm; optional glass fiber: 1–70 µm, metal mesh: 3–400 µm, filter paper: 5–40 µm, measured according to ISO 16889 multiple pass method (β≥1000).

2. Operating Pressure and Temperature

- Rated pressure: 0.6–6 MPa (6–60 bar, custom sizes up to 16 bar or 420 bar available)

- Operating temperature: 0–80 ℃ (general purpose), custom high-temperature models up to 120 ℃.

3. Flow Rate Range

Rated flow rate: 100 L/min (common value), series coverage: 2–2600 L/min, initial differential pressure ≤0.2 MPa, recommended differential pressure is 1 bar, maximum allowable 3.5 bar.

4. Filter Media and Structure

Pleated cylindrical filter element, outer shell made of iron or plastic; filter media options include paper, fiberglass, stainless steel mesh, sintered felt/powder; spin-on type, with bypass valve and blockage indicator (optional).

5. Testing Standards

ISO 2941 (burst resistance), ISO 2942 (structural integrity), ISO 2943 (material compatibility), ISO 3723 (end load), ISO 3724 (fatigue), ISO 3968 (differential pressure-flow), ISO 4572/16889 (multiple passes).

6. Typical Applications

Marine main and auxiliary engine fuel, fuel-water separators, gearbox lubrication systems; also used for fuel, hydraulic oil, and lubricating oil filtration in power plants, steel mills, tunnel boring machines, mining, petrochemical, chemical, and textile industries.
