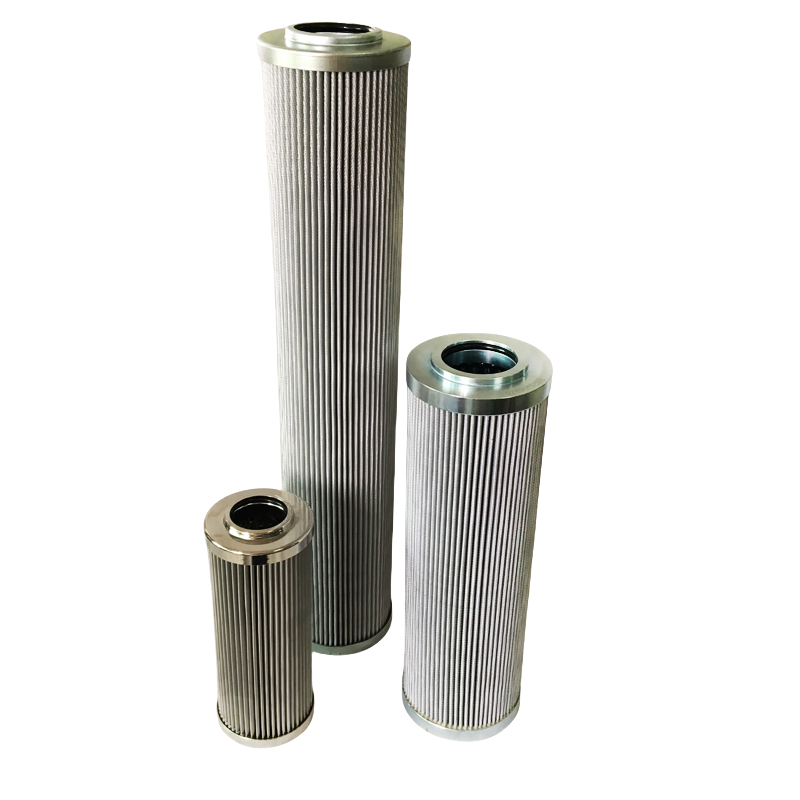

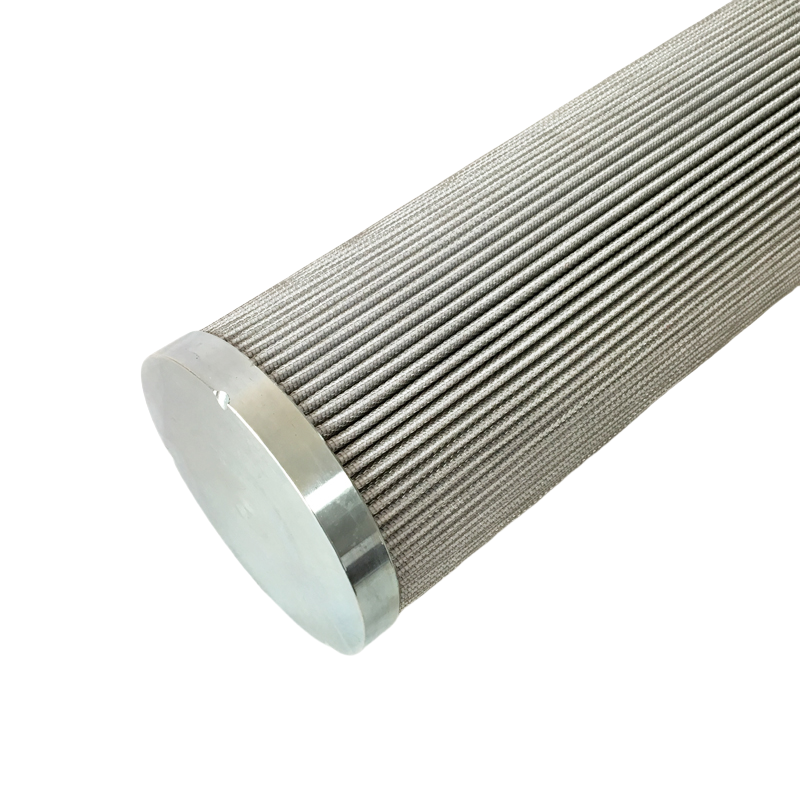

The following is basic information about the HPQ210116-10M hydraulic filter element:

 Technical Parameters

- Working Pressure: 16 bar, customizable upon request.

- Maximum Operating Temperature: 120°C.

- Operating Flow: 2-2600 L/min.

- Differential Pressure Alarm: 1 bar, 3 bar, 3.5 bar.

- Filtration Refinement: Depending on the filter material, the filtration refinement range is 1-70 μm (micrometers). Specific refinements are as follows:

- Glass Fiber Filter Media: 1-70 μm

- Metal Mesh Filter Media: 3-400 μm

- Filter Paper Filter Media: 5-40 μm

- Filter Media: Glass fiber, filter paper, metal mesh, metal powder, sintered metal, sintered felt, etc.

- Dimensions: Outer diameter 150 mm, inner diameter 90 mm, length 1050 mm or 1000 mm

 Performance Features

- High Dirt Holding Capacity: High-quality imported filter media is used, resulting in a high particle holding capacity per unit area and a long service life.

- Stable Filtration Accuracy: Advanced processing technology reduces mechanical damage to the filter media during pleating, which can lead to filtration failure, ensuring consistent and stable filtration accuracy.

- High Structural Integrity: The filter element has passed ISO 2942:2004 testing multiple times, demonstrating no decrease in the initial bubble point and no structural defects that could affect its filtration accuracy rating. The required accuracy is consistent with the actual accuracy level.

- Strict Factory Inspection: A complete and rigorous factory inspection process is implemented for raw materials, semi-finished products, and finished products. All products undergo 100% inspection to ensure impeccable quality.

 Testing Standards

- ISO 2941: Test method for filter element rupture resistance.

- ISO 2942: Test method for structural integrity of hydraulic filter elements. - ISO 2943: Test methods for compatibility of hydraulic filter elements with fluids.

- ISO 3723: End-to-end compliance test for filter elements.

- ISO 3724: Determination of fatigue properties of filter elements.

- ISO 3968: Differential pressure flow characteristics of filter elements.

- ISO 4572: Determination of filtration properties of filter elements by the multiple-pass method.

- ISO 16889: Filtration ratio/dirt holding capacity.

 Applications

- Hydraulic systems: Used in hydraulic oil systems to continuously filter impurities, moisture, and other contaminants from the oil to ensure proper system operation.

- Industrial applications: Widely used in power plants, steel mills, shield tunneling, mining, papermaking, petroleum, shipbuilding, chemicals, textiles, and various power machinery industries.

- Petrochemical industry: Separation and recovery of products and intermediates in oil refining and chemical production processes; purification of liquids; purification of magnetic tapes, optical disks, and photographic films in manufacturing; and particle removal and filtration of oilfield injection water and natural gas. - Electronic Precision Industry: Painting, assembly, cleaning, electroplating.

- Fiber Industry: Automatic machinery, wire suction guns, drying, dyeing.

- Foundry Industry: Hot metal car positioning, cleaning equipment, sand conveying, pneumatic tool driving, sanding machines, grinding machines, hoists and lifts, pneumatic picks, compactors, steel brushes, sandblasting, sand screening, and mud blasting cores.

- Forging Industry: Scale blowing, furnace door air curtains, hoists and lifts, driven bending and straightening machines, driven clutches, brakes, and clamping devices, driven forging hammers, and oil burners.

- Sheet Metal Industry: Solution stirring, chip transport, air jet cleaning, driven packaging presses, driven platen chuck clutches and positioners, pneumatic tools, finishing hammers, pneumatic picks, drills, grinding machines, hoists and lifts, combination tools, riveting machines, sandblasting, lubricant spraying, paint spraying, and container leak detection.
