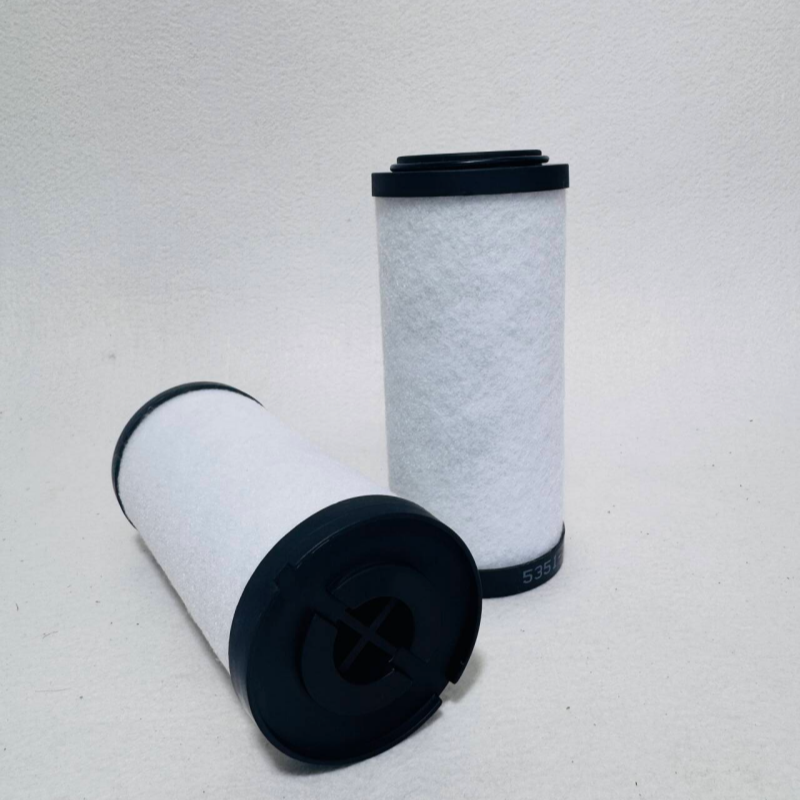

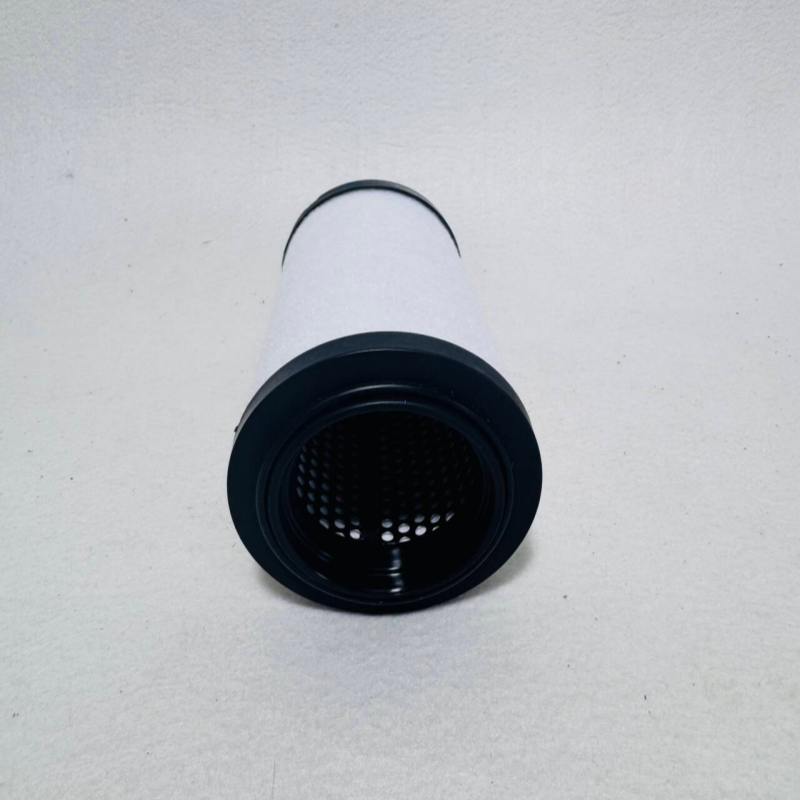

5351-03 oil mist removal filter element

The following is basic information about the 5351-03 oil mist removal filter element:

 Technical Parameters

- Filtration accuracy: 0.3μm.

- Operating temperature: -10~80°C.

- Operating pressure: Up to 1.0 MPa (approximately 10 bar).

- Filter material: High-efficiency glass fiber + polypropylene composite material.

- Connection type: Standard threaded connection (M20×1.5).

- Applicable media: Air, oil, water.

- Replacement interval: Approximately 3000 hours.

 Performance Features

- High-efficiency filtration: Capable of intercepting particles ≥ 0.3 microns with a filtration efficiency of up to 99.9%.

- Low pressure drop: Reduces energy consumption and improves system economics.

- Long life: Reduces maintenance frequency and lowers operating costs.

- Excellent air permeability: Reduces resistance during passage. - Excellent Air Tightness: Prevents impurities from entering the downstream without passing through the filter element.

- Excellent Corrosion Resistance: Suitable for use under harsh operating conditions.

 Applications

- Railway Industry: Used in railway equipment air systems to ensure stable operation.

- Industrial Automation: Used for precision oil mist filtration in pneumatic systems.

- Compressed Air Treatment: Removes oil mist, water vapor, and fine particles from compressed air.

- Hydraulic System: Used in hydraulic oil systems to continuously filter impurities, moisture, and other contaminants from the oil.

 Testing Standards

- ISO 2941: Test method for filter element rupture resistance.

- ISO 2942: Test method for structural integrity of hydraulic filter elements.

- ISO 2943: Test method for compatibility of hydraulic filter element materials with fluids.

- ISO 3723: End-to-end compliance test for filter elements.

- ISO 3724: Determination of fatigue properties of filter elements.

- ISO 3968: Differential pressure and flow characteristics of filter elements. - ISO 4572: Filter elements - Determination of filtration characteristics - Multiple-pass method.

- ISO 16889: Filtration ratio/dirt holding capacity.
