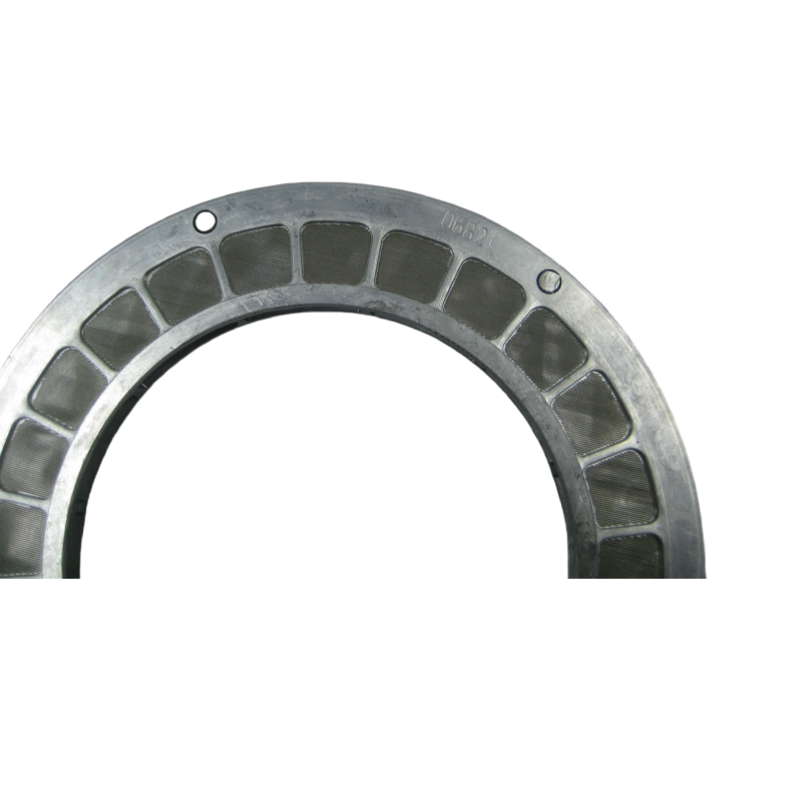

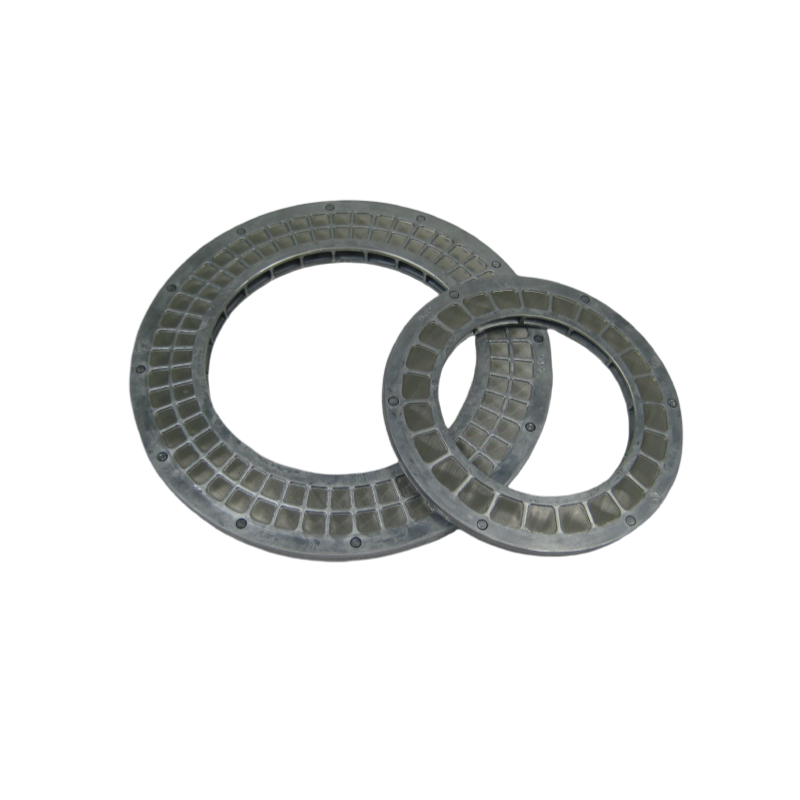

The following is basic information for the 1800-03417 and 1800-03420 marine accessory filters:

 Technical Parameters

- Operating Pressure: 16 bar, custom orders available.

- Maximum Operating Temperature: 120°C.

- Operating Flow: 2-2600 L/min.

- Differential Pressure Alarm: 1 bar, 3 bar, 3.5 bar.

- Filter Media: Glass fiber, metal mesh, filter paper, sintered felt, sintered mesh, powder sintered.

- Filtration Rating: Glass fiber filter media: 1-70 μm; metal mesh filter media: 3-400 μm; filter paper filter media: 5-40 μm.

- Operating Temperature: -30-120°C.

- Maximum Operating Pressure: 420 kg.

 Testing Standards

- ISO 2941: Test method for resistance to rupture of filter elements.

- ISO 2942: Hydraulic filter elements - Test method for structural integrity.

- ISO 2943: Hydraulic filter element material compatibility test method.

- ISO 3723: End-to-end compliance test for filter elements.

- ISO 3724: Determination of fatigue properties of filter elements.

- ISO 3968: Differential pressure flow characteristics of filter elements.

- ISO 4572: Determination of filtration properties of filter elements - Multiple-pass method.

- ISO 16889: Filtration ratio/dirt holding capacity.

 Applications

- Hydraulic systems: Used in hydraulic oil systems to continuously filter impurities, moisture, and other contaminants from the oil to ensure normal operation of the system.

- Industrial applications: Widely used in power plants, steel mills, shield tunneling, mining, papermaking, petroleum, shipbuilding, chemical, textile, and various power machinery industries. - Petrochemical Industry: Separation and recovery of products and intermediates in oil refining and chemical production processes; liquid purification; purification of magnetic tapes, optical discs, and photographic films during manufacturing; and particle removal and filtration of oilfield injection water and natural gas.

- Electronic Precision Industry: Painting, assembly, cleaning, and electroplating.

- Fiber Industry: Automatic machinery, wire drawing guns, drying, and dyeing.

- Foundry Industry: Molten iron car positioning, cleaning equipment, sand conveying, pneumatic tool driving, sand blasting machines, grinding machines, hoists and lifts, pneumatic picks, compactors, steel brushes, sandblasting, sand screening, and mud core spraying.

- Forging Industry: Scale blowing, furnace door air curtains, hoists and lifts, bending and straightening machine driving, clutch brakes and clamping devices, forging hammers, and oil burners. - Sheet Metal Industry: Mixing solutions, transporting chips, jet cleaning, driving packaging presses, driving platen chuck clutches and positioners, pneumatic tools, finishing hammers, picks, drills, grinders, hoists and lifts, combination tools, riveters, sandblasting, lubricant spraying, paint spraying, and container leak detection.

 Features

- High Dirt Holding Capacity: High-quality imported filter media is used, resulting in a high particle holding capacity per unit area and a long service life.

- Stable Filtration Accuracy: Advanced processing technology reduces mechanical damage to the filter media during pleating, which can lead to filtration failure, ensuring consistent filter element filtration accuracy.

- High Structural Integrity: The filter element has passed multiple ISO 2942:2004 tests, with no decrease in initial bubbling point and no structural defects that could affect its filtration accuracy rating. Required accuracy is consistent with actual accuracy. - Strict Factory Inspection: We undergo a comprehensive and rigorous factory inspection process for raw materials, semi-finished products, and finished products. All products undergo 100% inspection to ensure top-quality products.
