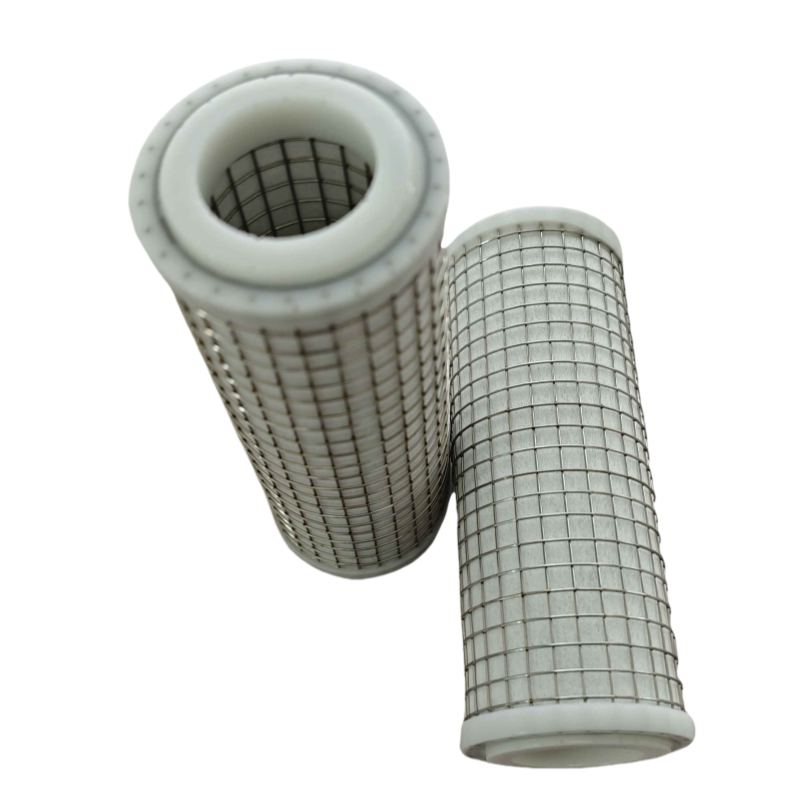

- Model Number: 16W406

- Product Type: Oil Filter Coalescing Filter Element Supplier

- Core Function: Removes water, free water, emulsified water, and tiny solid particles from hydraulic oil.

 Working Principle:

Hydraulic oil flows from the inside out through the filter element, completing three steps: demulsification-coalescing-separation:

1. Demulsification Layer: Breaks the oil-water emulsion, separating the oil-in-water or water-in-oil structure.

2. Coalescing Layer: Tiny water droplets adhere, move, and converge on the glass fiber surface, coalescing into large droplets.

3. Gravity Settling: Large droplets are carried to the outer surface of the filter element by the oil and, due to their greater density than oil, settle to the bottom water collection tank and are discharged through the drain valve.

4. Clean Oil: The dehydrated oil returns to the oil tank, while solid impurities are trapped inside the filter media.

---

 Product Features:

- Hydrophilic and Oleophobic Filter Media: Highly efficient at binding water while allowing smooth oil flow.

High Dirt Holding Capacity: Multi-layer composite structure with ample dirt-holding space, extending service life.

Structural Integrity: Metal support frame, pressure differential resistance >0.7 MPa.

Standard Compatibility: Typically conforms to API-1581 and GJB610-88 standards.

Strong Dehydration Capacity: Water content up to 15%, outlet free water content <10 ppm.

---

 Application Areas:

Specific Use for Oil Filter Machines:

Power Plants: Turbine oil purification, EH fire-resistant oil filtration

Steel Plants: Hydraulic station oil dehydration

Shield Tunneling Machinery: Main drive system oil purification

Mining Equipment: Hydraulic oil water and impurity removal

Paper, Petroleum, Shipbuilding, Chemical, Textile: Lubricating oil and hydraulic oil purification for various industrial equipment.
