Model Number Analysi

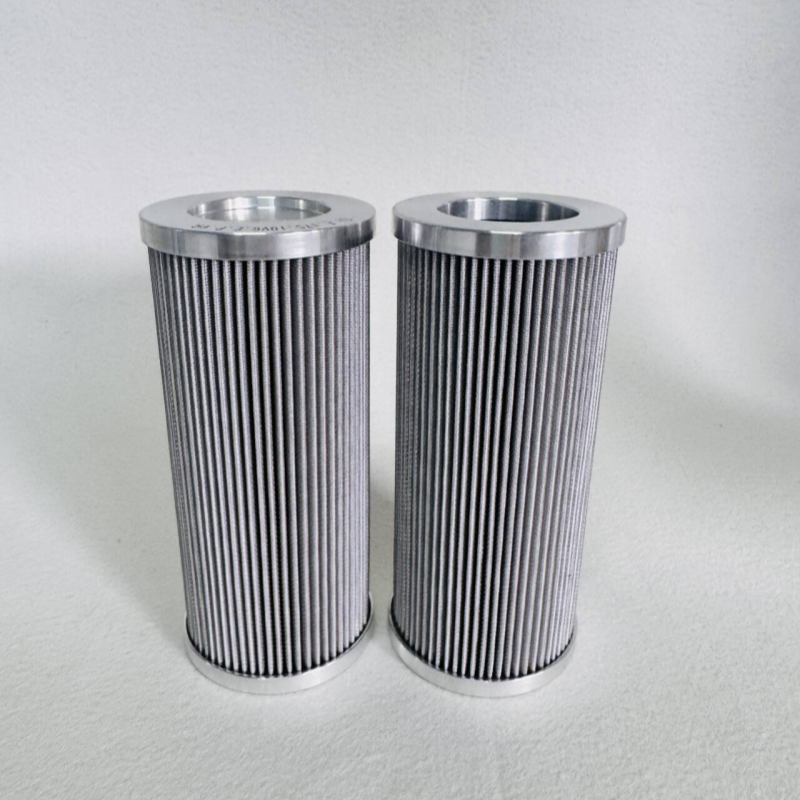

- 01.E: Product Series (01.E Series Return Oil Filter Element)

- 175: Specifications (Filter Element Length/Diameter Code)

- 10VG: Filtration Accuracy 10 microns, VG indicates glass fiber filter media

- 16: Working Pressure Rating 16 bar

- E: Sealing Material (NBR Nitrile Butadiene Rubber)

- P: With Bypass Valve Structure

- VA: Standard Version Identifier

 Technical Specifications

 Parameter Item  Specification Value

 Filtration Accuracy  10 μm (Absolute Accuracy)

 Working Medium  Hydraulic Oil, Lubricating Oil, etc.

 Working Pressure  Maximum 16 bar

 Working Temperature  -30°C to +100°C

 Filter Media Material  Glass Fiber (VG)

 Sealing Material  NBR (Nitrile Butadiene Rubber)

 Bypass Valve Opening Pressure  Approx. 3.5 bar (±10%)   Flow Characteristics  Depends on viscosity, typically 200-400 L/min

Filtration Direction  Out-to-in

 Structural Features

1. Multi-layer Composite Structure: Utilizes a composite of glass fiber filter media and a metal mesh support layer, offering high pressure resistance.

2. Bypass Protection: Built-in bypass valve automatically opens when the filter element is clogged and the differential pressure reaches 3.5 bar, preventing system oil supply interruption.

3. Slump Strength: ≥20 bar, ensuring the filter media does not deform under differential pressure impact.

4. Compatibility: Complies with ISO 2941, ISO 2942, ISO 2943, and ISO 3724 international standards.

5. Interface Type: Standard threaded connection or flange installation.

 Typical Applications

- Concrete Machinery: Hydraulic systems of pump trucks and mixer trucks from Sany, Zoomlion, etc.

- Construction Machinery: Return oil filtration for excavators, loaders, and cranes. Industrial Hydraulics: Hydraulic power units for metallurgical equipment, injection molding machines, and die-casting machines

Lubrication Systems: Oil filtration for gearboxes and transmission systems
