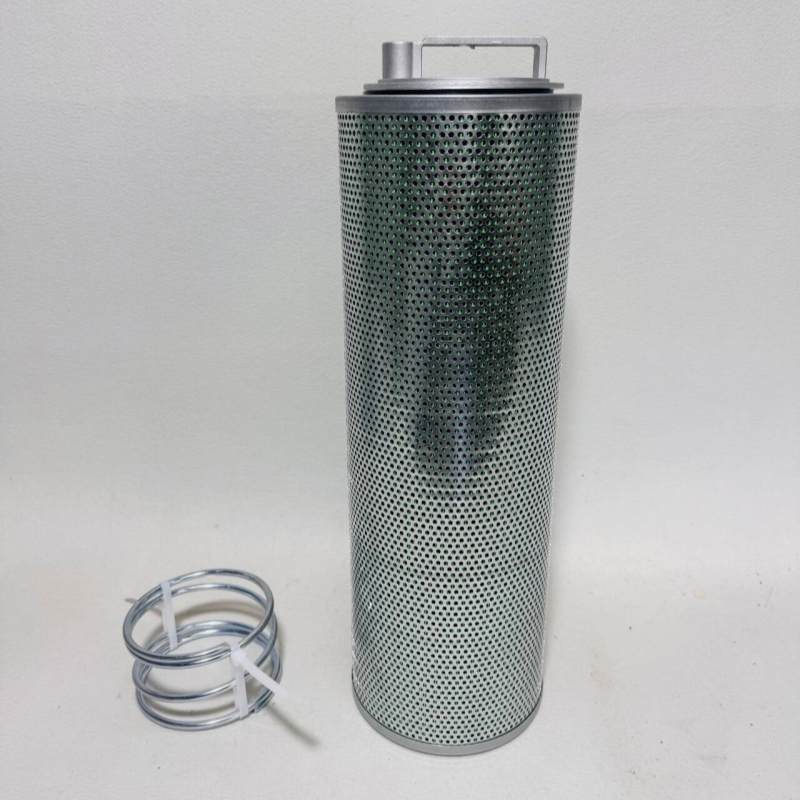

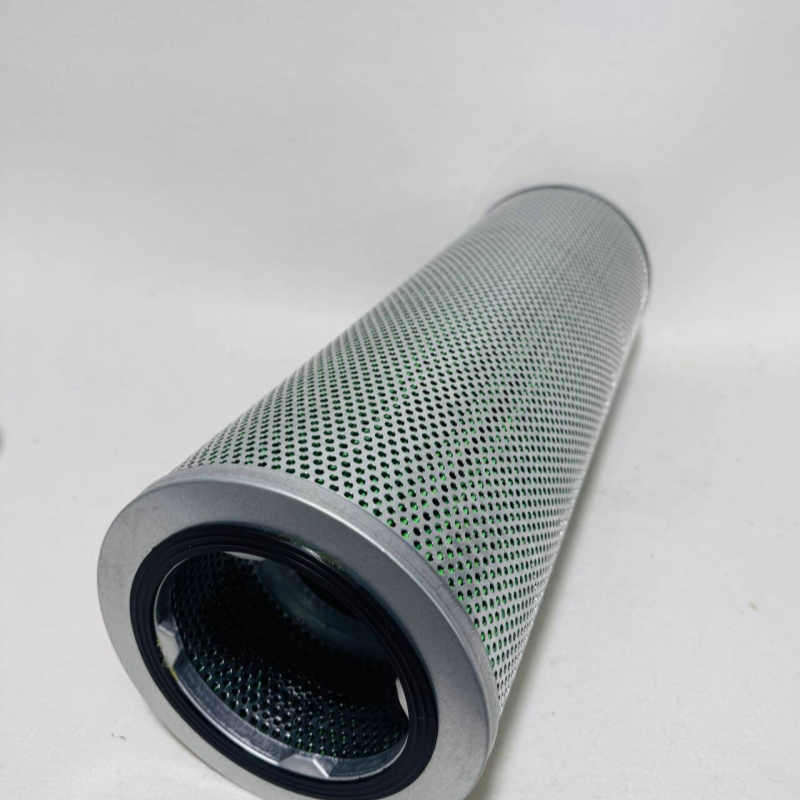

PO-CO-014-01420 Return Oil Filter

PO-CO-01-01420 is a return oil filter assembly for Sany Heavy Industry equipment (such as C8 pump trucks/vehicle-mounted pumps). The following is its basic information:

 Basic Information

- Product Model: PO-CO-01-01420

- Material Number: 60193266

- Product Description: Return oil filter assembly/return oil filter

- Applicable Equipment: Sany Heavy Industry C8 pump truck, truck-mounted pump, and other concrete machinery

 Technical Parameters

- Working Pressure: 10-16 bar (standard 10 bar, custom orders available)

- Maximum Working Temperature: 120°C

- Working Flow Rate: 2-2600 L/min

- Filtration Accuracy: Typically 10 microns (μm)

- Differential Pressure Alarm Value: 1-3 bar

- Interface Type: M12x1 or threaded connection

 Functional Features

1. Structural Composition: Filter head, housing, filter element, bypass valve, maintenance indicator, etc.

2. Maintenance Indicator: Equipped with a mechanical-optical maintenance indicator and electronic switching element, it can issue an alarm signal when the filter element is clogged.

3. Bypass Protection: When filter element clogging causes the differential pressure to reach approximately 0.35 MPa, the bypass valve automatically opens to protect the system's normal operation.

4. Installation Method: Typically installed directly on the hydraulic oil tank, vertically with the suction port facing downwards.

 Working Principle: Hydraulic oil enters the filter from the system return port, flowing from the outside to the inside of the filter element. Impurities are trapped on the outside of the filter element, and the cleaned hydraulic oil returns to the tank. When the filter element gradually becomes clogged, causing the inlet and outlet pressure difference to increase, the maintenance indicator will signal to replace the filter element. If the differential pressure continues to rise to the bypass valve opening pressure, the bypass valve will open to ensure continuous oil supply to the system.

 Application Areas: Primarily used for hydraulic system return oil filtration in Sany Heavy Industry's concrete pump trucks, truck-mounted pumps, and other construction machinery equipment to ensure the cleanliness of the hydraulic oil and protect hydraulic components from contamination and wear.
