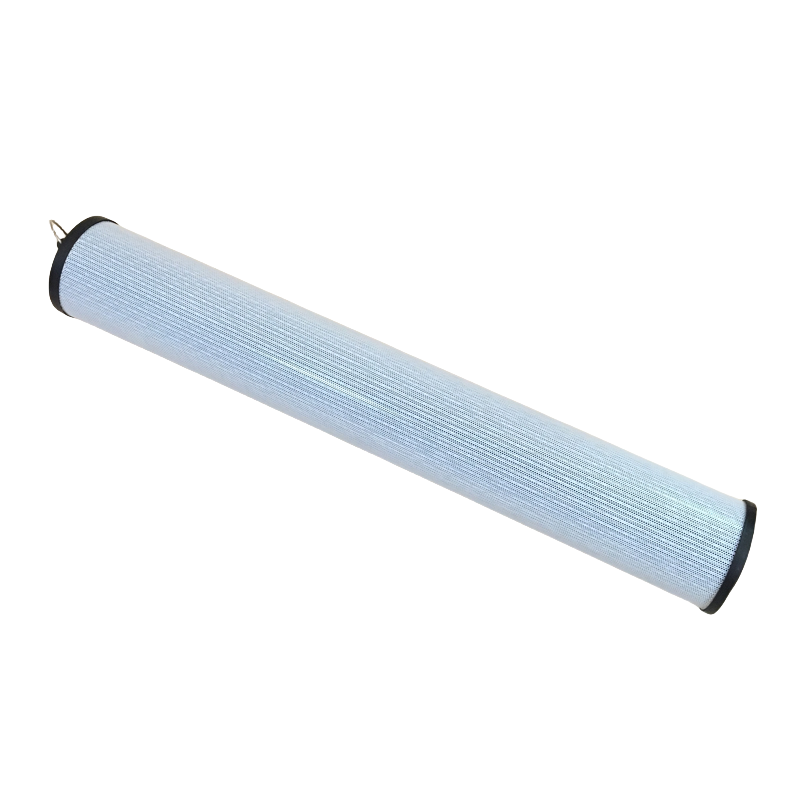

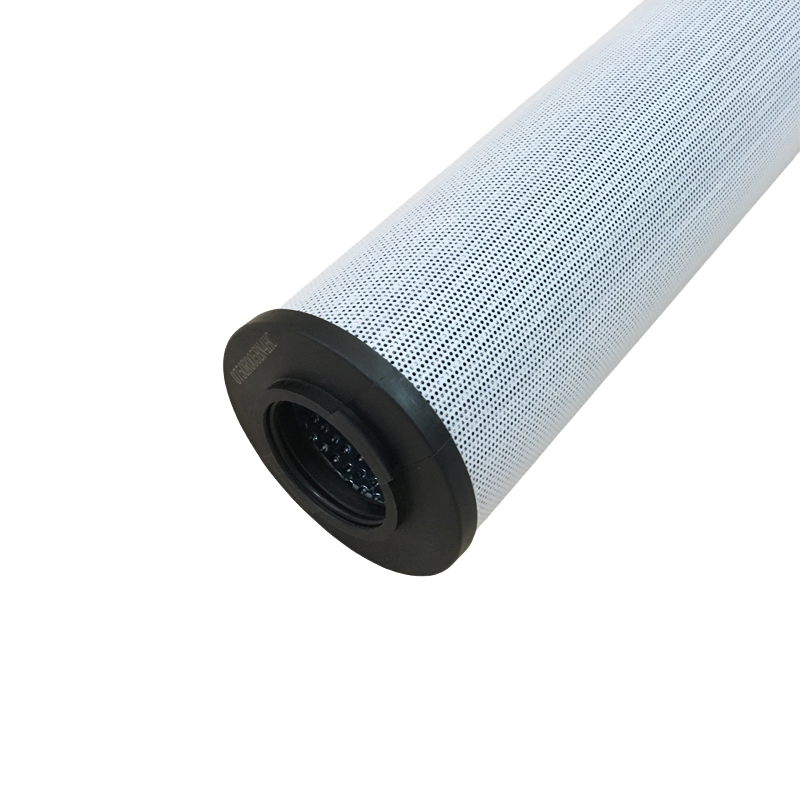

- 0950 R: 0950R series return oil filter element (nominal flow rate approx. 950 L/min)

- 010: Filtration accuracy 10 microns

- SN: Filter media type (cellulose or special filter paper material)

- -V: Sealing material is fluororubber (FKM), suitable for high temperature and corrosive oils

- -KB: With bypass valve structure

 Technical parameters (based on similar products)

 Filtration accuracy  10 μm (absolute accuracy)

 Working medium  Hydraulic oil, lubricating oil, water-glycol, etc.

 Working pressure  Maximum 10 bar (return line pressure)

 Working temperature  -30°C to +100°C (fluororubber seal)

 Flow rate  Nominal flow rate approx. 950 L/min

 Filter media material  Cellulose filter paper or special nonwoven fabric (SN)   Sealing material  FKM Fluororubber (-V)

 Bypass Valve Opening Pressure  Approx. 3.5 bar (±10%)

 Filtration Direction  Out-to-in

 Filter Element Collapse Pressure  ≥20 bar

 Structural Features

1. Multi-layer Composite Structure: Utilizes a composite of filter paper and metal mesh support layer, providing high pressure resistance.

2. Bypass Protection: Built-in bypass valve automatically opens when the filter element blockage pressure differential reaches 3.5 bar, preventing system oil supply interruption.

3. Anti-static Design: Discharges static electricity during operation, preventing static buildup in the oil.

4. Strong Compatibility: Complies with ISO 2941, ISO 2942, ISO 2943, and ISO 3724 international standards.

5. Installation Dimensions: Standard interface, interchangeable with filter elements in the same series.

 Typical Application Areas

- Construction Machinery: Hydraulic system return oil filtration for excavators, loaders, cranes, and concrete pump trucks.

- Metallurgical Equipment: Hydraulic system filtration for rolling mills and continuous casting machines

Petrochemical Industry: Oil purification for refining and chemical production processes

Power Industry: Oil filtration for steam turbines and boiler lubrication systems

Machine Tool Equipment: Hydraulic power units for machining centers and injection molding machines

Marine Machinery: Hydraulic systems for steering gear and cargo hoists
