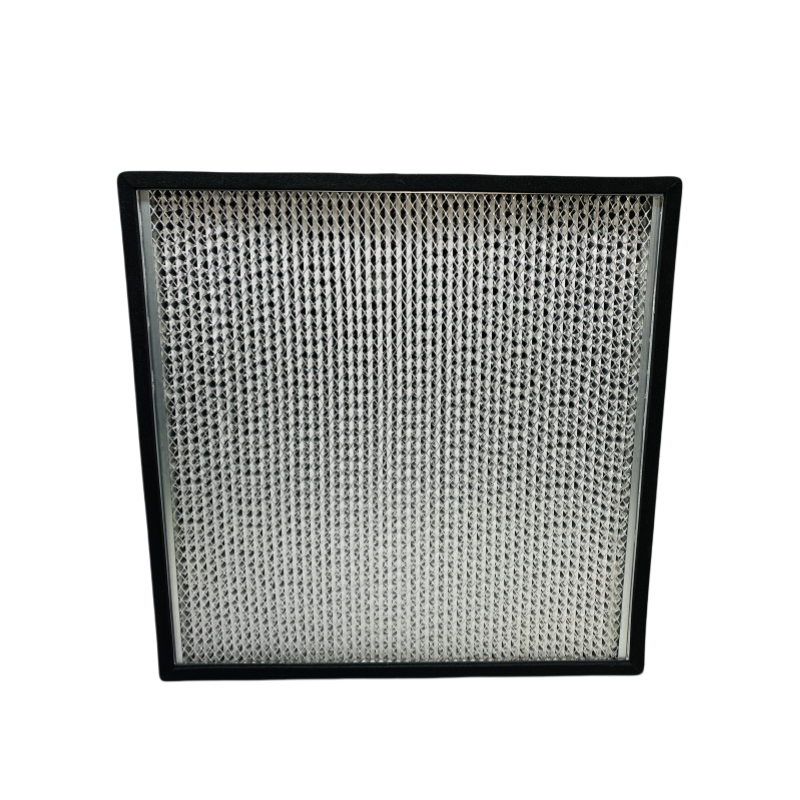

VE-1103-2424-517 Plate and Frame Filter Cartridge

 VE-1103-2424-517 Plate and Frame Air Filter Basic Information

VE-1103-2424-517 is a medium-efficiency plate and frame air filter specifically designed for steam turbines, primarily used in industrial dust removal and air purification systems. The following is its core information:

 1. Product Identification

- Model Number: VE-1103-2424-517

- Type: Steam Turbine Plate and Frame Air Filter Element / Medium Efficiency Plate and Frame Air Filter Element

- Matching Model: Often used in conjunction with models such as P034885-016-123



 2. Main Technical Parameters

 Parameter Item  Specification Range

 Filtration Accuracy  0.1~500μm (depending on filter media)<br>Glass fiber filter media: 1-70μm; Filter paper filter media: 5-40μm

 Rated Flow Rate  6~9100 L/min

 Working Pressure  ≤450 kg (approximately 45MPa)

 Working Temperature  -30~120℃

 Filter Media Material  Fiberglass, air filter paper, PP, polyester nonwoven fabric, etc.

 3. Product Uses and Applications

Main Function: Removes fine dust particles from the air, providing a clean air environment for steam turbines and other industrial systems, ensuring normal equipment operation.

Typical Application Areas:

- Steam turbine inlet filtration in thermal power plants and nuclear power plants

- Air compressor and compressor systems

- Heavy industrial environments such as steel mills and cement plants

- Petrochemical and chemical industries

- Shipbuilding, mining, and papermaking

- Various power machinery and industrial dust removal systems

 4. Standards Compliance

This filter element complies with multiple ISO testing standards:

- ISO 2941 (burst resistance)

- ISO 2942 (structural integrity)

- ISO 2943 (material compatibility)

- ISO 3723, 3724 (end load and fatigue characteristics)

- ISO 3968 (differential pressure flow characteristics)

- ISO 4572 (multi-pass filtration characteristics)

- ISO 16889 (filtration ratio/dirt holding capacity)
