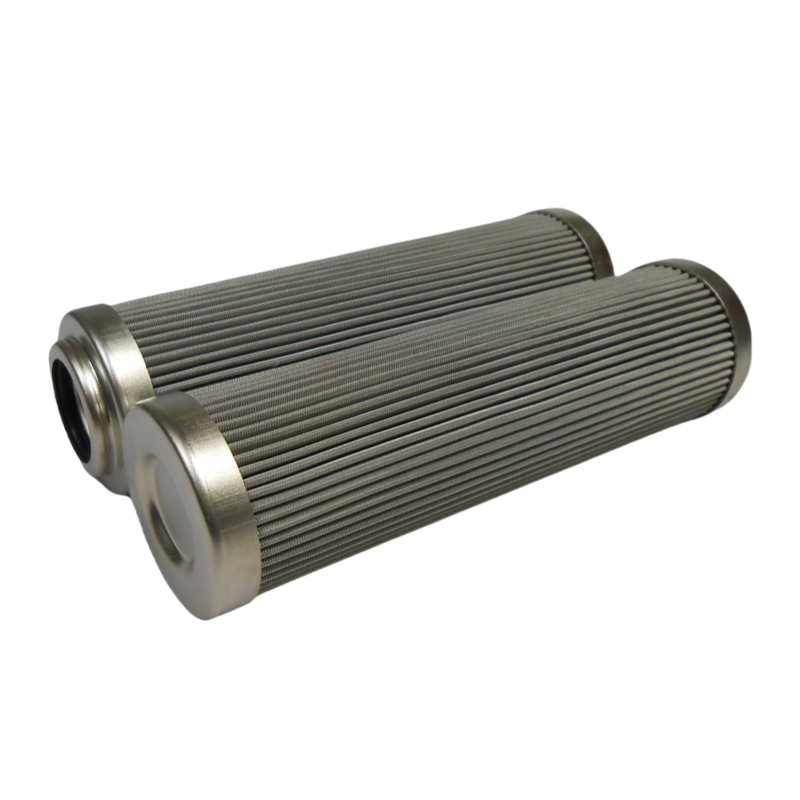

FPF-06-M100-F 3/4 Stainless Steel Mesh Filter Element Basic Information

FPF-06-M100-F 3/4 is a stainless steel mesh filter element for hydraulic systems, primarily used for oil filtration. The following is its core information:

 1. Product Identification

- Model Number: FPF-06-M100-F 3/4

- Thread Connection: 3/4 inch (3/4"), typically a standard pipe thread

 2. Main Technical Parameters

 Parameter Item  Specifications

 Working Pressure  16 bar (customizable for special requirements)

 Maximum Working Temperature  120℃

 Working Flow Rate  2-2600 L/min

 Filter Media Material  Stainless steel mesh (typically 304 or 316 stainless steel)

 Filtration Accuracy  M100 typically indicates 100 mesh (approximately 150μm), with a specific accuracy range of 2-200μm

 Differential Pressure Alarm Value  1 bar, 3 bar, 3.5 bar

 Sealing Material  Nitrile rubber (NBR) or fluororubber (FKM)

 3. Product Features

- Washable and Reusable: Stainless steel mesh material can be repeatedly washed, long service life.

- Pressure and Temperature Resistant: Excellent pressure and temperature resistance, suitable for harsh working conditions.

- Robust Structure: Metal frame support, strong resistance to deformation.

- High Flow Rate: Large filtration area, wide flow range.

 4. Application Areas

Mainly used in hydraulic oil systems to continuously filter impurities, moisture, and other contaminants from the oil, ensuring normal system operation:

- Hydraulic press circulating oil system

- Heavy industrial equipment such as power plants and steel mills

- Various hydraulic stations and lubrication systems

- Construction machinery equipment
