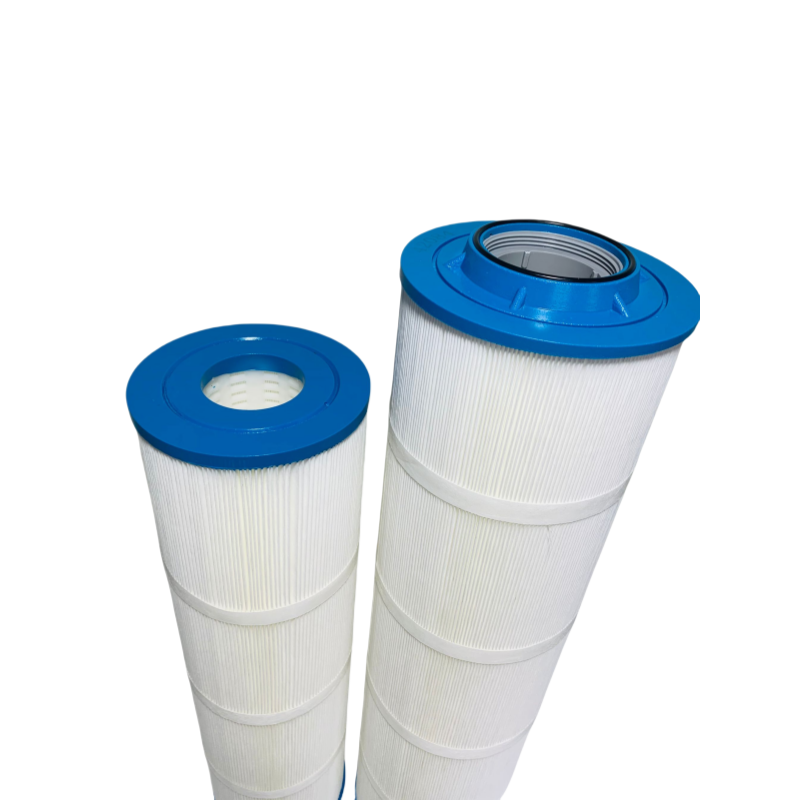

I. Basic Information

- Model: SPE-5-20BB (Main Model), 101202 (Alternative/Order Number), 30BHN520 (Specification/Batch Number)

- Type: Pleated Polypropylene/Polyester Filter Cartridge (Seawater Specific, Salt-Resistant, Corrosion-Resistant)

- Accuracy: 5μm (nominal)

- Dimensions: 20" × 4.5" (508mm × 114mm), Standard Large Blue Bottle Size

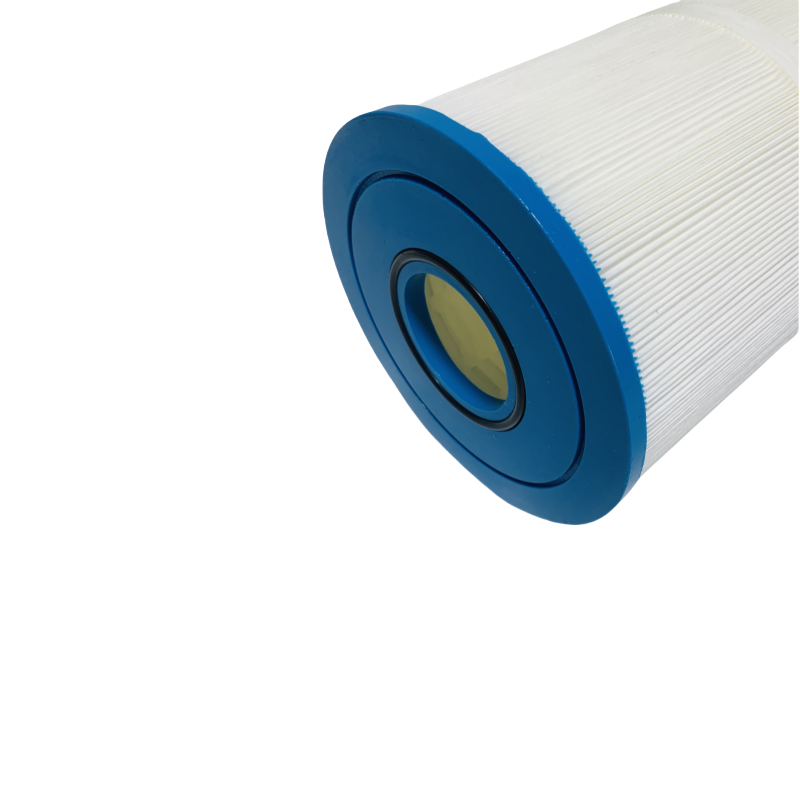

- Structure: External Pressure Pleated, PP skeleton + hot-melt welded end caps, glue-free, seawater corrosion resistant

- Filtration Area: Approx. 0.7–0.9㎡

 II. Operating Parameters

- Material: Filter Media Polypropylene/Polyester, Skeleton/End Caps PP, Sealing Ring EPDM (Seawater Resistant)

- Temperature: 4–52℃ (39–125°F)

- Flow rate: 15–25 L/min (4–6.5 gpm), standard flow rate for 20-inch bottles

- Pressure differential: Initial <7kPa (1psi)@10gpm; recommended replacement pressure differential 35–50kPa (5–7psi)

- pH: 6–10, suitable for seawater/high-salinity wastewater

 III. Model Breakdown (SPE-5-20BB)

- SPE: Series (Sea Water Pleated Element)

- 5: 5μm precision

- 20: 20-inch length

- BB: Big Blue (4.5" outer diameter)

 IV. Core Features

1. Seawater Dedicated: All PP material + EPDM sealing, salt-resistant, antimicrobial, corrosion-resistant, suitable for seawater desalination/high-salinity conditions.

2. High dirt-holding capacity + low pressure drop: Large pleated structure area, strong dirt-holding capacity and long service life, protecting downstream RO membranes.

3. High flow rate: 20-inch large diameter, sufficient flow rate and low pressure drop, suitable for marine/land-based seawater systems.

4. Economical and versatile: Compatible with Pentek ECP5-20BB, SPC-45-2005, etc., low cost and easy to procure.

 V. Typical Applications

- Seawater desalination: RO reverse osmosis pre-filter, intercepting sediment, shells, and colloids to protect the reverse osmosis membrane.

- Marine systems: Marine seawater filters, cooling water pretreatment.

- High-salinity wastewater: Chemical/power plant high-salinity wastewater pretreatment, ion exchange pre-filtration.

VI. Brief Comparison with the Previous Two Filter Cartridges

 Model  Accuracy  Material  Pressure Resistance  Application

 SPE-5-20BB  5μm  All PP (seawater)  ≤7bar  Seawater/High-salinity liquid  MCS1001UV  10μm  Glass fiber (gas/liquid dual-purpose)  4.13bar  Low-pressure gas/liquid

130M205QEBM3KR401  5μm  Glass fiber (high pressure)  70bar  High-pressure hydraulic oil
