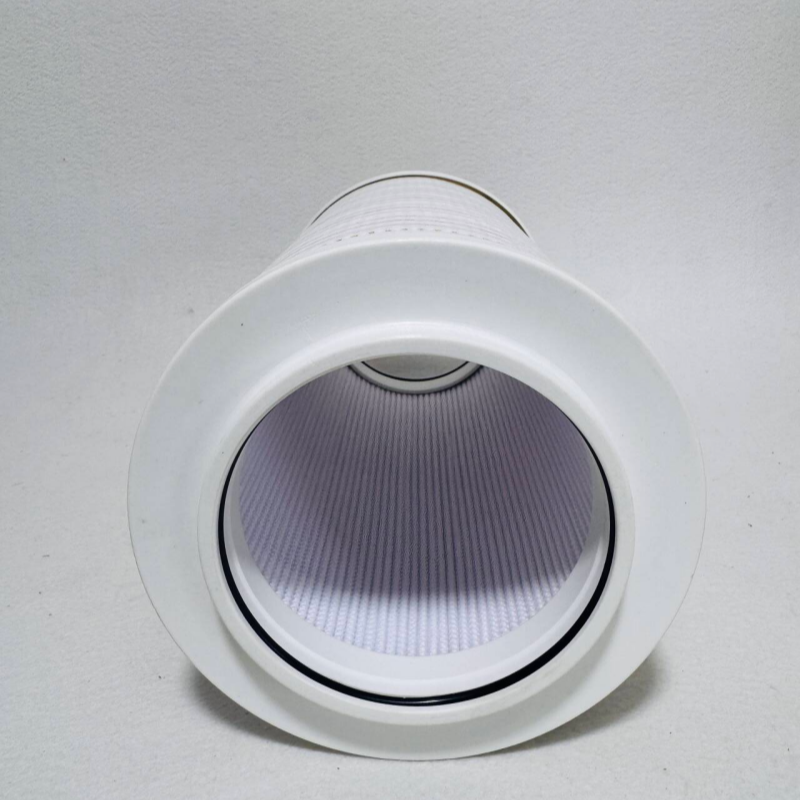

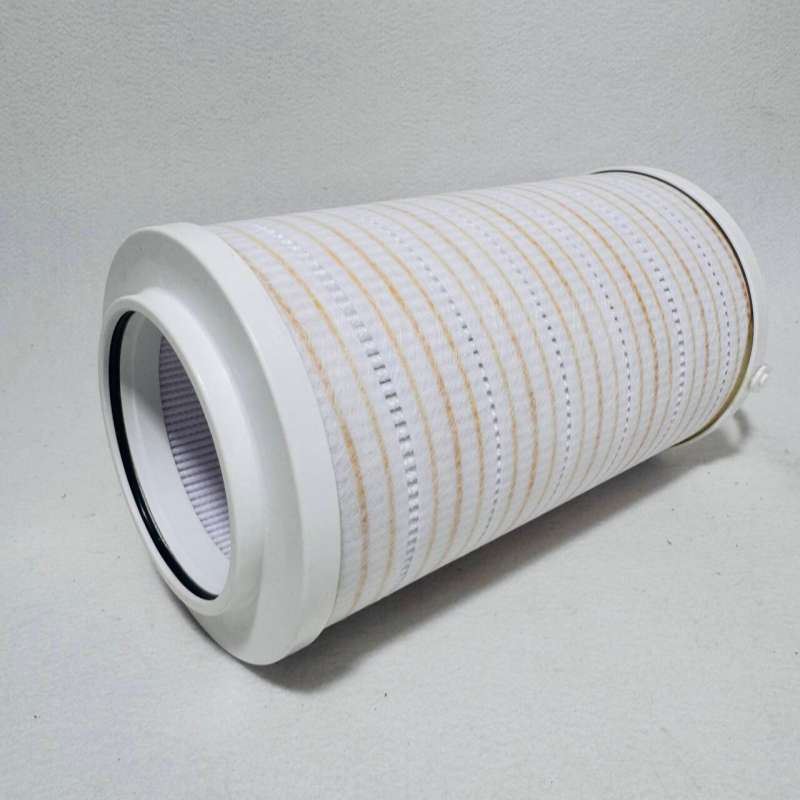

130M205QEBM3KR401 filter oil element

I. Basic Information

- Model: 130M205QEBM3KR401

- Series: Eco 130 (Medium-Pressure Line Filter)

- Filter Media: Ecoglass III Coreless Glass Fiber (Pleated, High Dirt Holding Capacity, Low Pressure Drop)

- Accuracy: 5μm (Absolute Accuracy), β₅≥200 (Efficiency ≥99.5%)

- Dimensions: Outer diameter approx. 64mm, length approx. 420mm

- Filtration Area: Approx. 7.2㎡

 II. Operating Parameters

- Operating Pressure: 70bar (1015psi), maximum 30bar per cartridge

- Flow Rate: 650–900L/min (Compatible with 130M205 filter)

- Temperature: -20°C to +120°C

- Sealing: FKM fluororubber (B=FKM, oil-resistant, temperature-resistant, chemical-resistant)

- Bypass Valve: 3.5 bar (Opens when differential pressure exceeds limit, protecting the system)

- End Cap/Skeleton: Steel, coreless design, high pressure resistant, impact resistant

 III. Model Breakdown (130M205QEBM3KR401)

- 130: Series code (medium-pressure return oil filter)

- M: Pressure rating (Medium, 70 bar)

- 205: Specification (flow rate 650L/min, 5μm)

- QE: Filter media type (Ecoglass)

- B: Sealing material (FKM fluororubber)

- M3: Connection/end cap specification

- KR401: Indicator + Configuration code (KR=visual + electrical signal, 401=standard configuration)

 IV. Core Features

1. Coreless Fiberglass: Ecoglass III. Third-fold design: No metal core, high dirt holding capacity, low pressure drop, long service life.

2. High-pressure compatibility: Steel end caps + coreless structure, pressure resistance 70 bar, suitable for industrial high-pressure hydraulic systems.

3. High-efficiency filtration: 5μm absolute accuracy, β₅≥200, effectively protects pumps, valves, and servo components.

4. Temperature and oil resistant: FKM seal + glass fiber filter media, -20°C to 120°C, compatible with various hydraulic oils/lubricants.

 V. Typical Applications

- Steel mills/power plants: Hot rolling mills, continuous casting machines, hydraulic station return oil filtration

- Construction machinery: Large excavators, cranes, tunnel boring machines hydraulic systems

- Industrial hydraulics: High-pressure pump stations, servo systems, lubrication systems particulate removal
