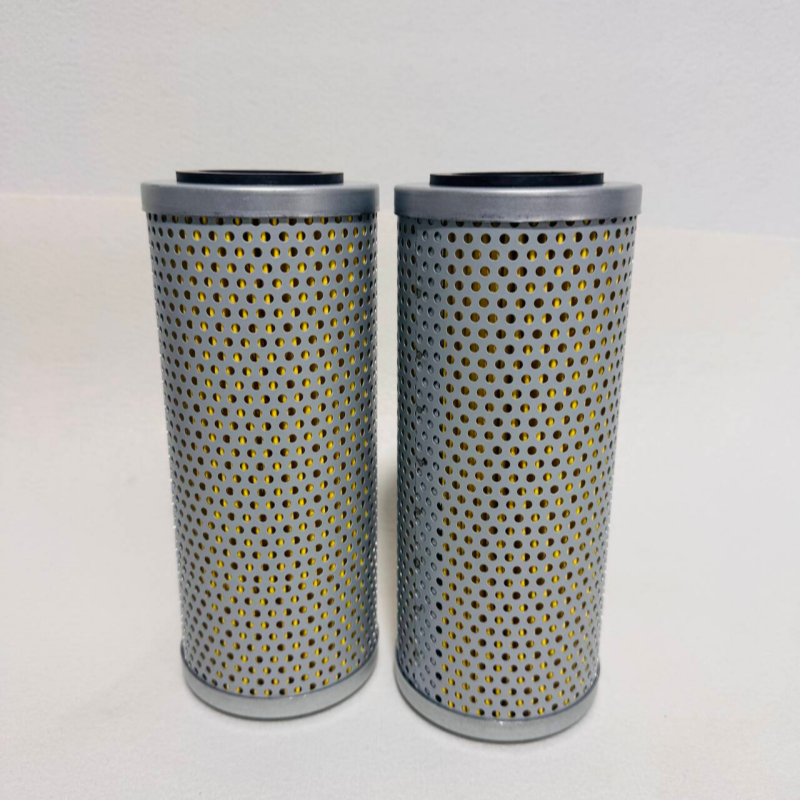

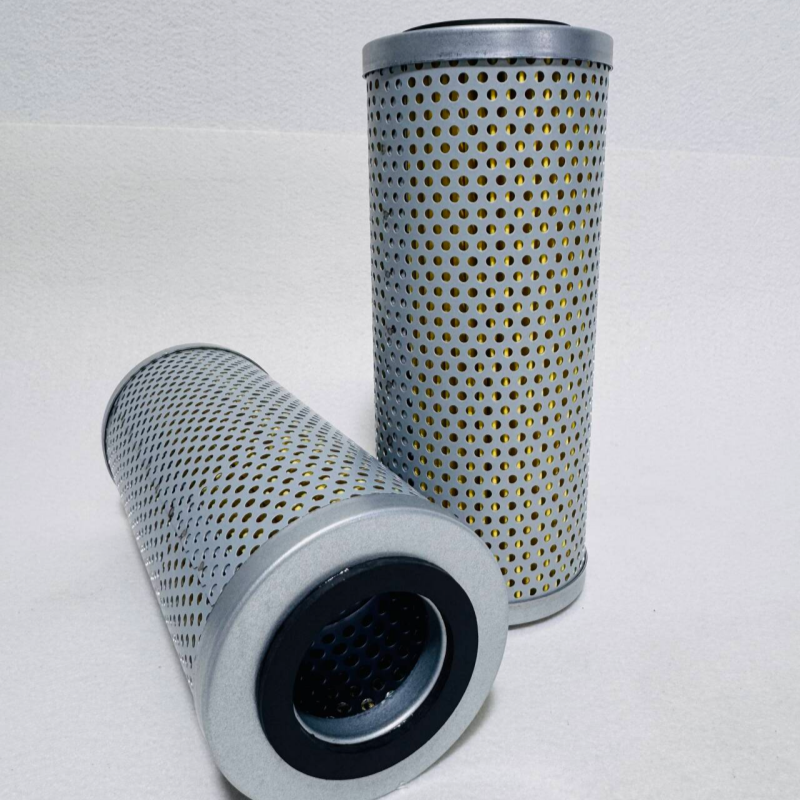

I. SH52011 Hydraulic Filter Element

 Parameter Item  Specific Parameters

 Product Name  Tunnel Boring Machine (TBM) Circulation Pump Filter Element / Hydraulic Oil Filter Element

 Primary Application  Used within hydraulic oil systems to continuously filter out contaminants—such as impurities and moisture—from the oil, ensuring the normal operation of the system.

 Applicable Industries  Tunnel Boring Machines (TBM), Power Plants, Steel Mills, Mining, Pulp & Paper, Petroleum, Marine, Chemical, Textile, Construction Machinery, etc.

 Filtration Media  Hydraulic Oil, Lubricating Oil, Gear Oil, Water-Glycol, Phosphate Ester Hydraulic Fluid, etc.

 Filter Material  Glass Fiber, Metal Mesh, Filter Paper, Sintered Felt, Sintered Mesh, Sintered Powder, Polypropylene, etc. (Customizable)

 Filtration Precision  Glass Fiber: 1–70 μm; Metal Mesh: 3–400 μm; Filter Paper: 5–40 μm

 Operating Pressure  ≤ 450 kg (approx. 45 MPa); Note: Some suppliers list this as 16 bar.

 Operating Temperature  -30 ~ 120 ℃

 Rated Flow Rate  6 ~ 9100 L/min

Product Features:

- High dirt-holding capacity and long service life.

- Stable filtration precision and high structural integrity.

- Subject to 100% full inspection prior to leaving the factory.

- Filter materials are customizable; specific parameters must be confirmed with the supplier.

II. GNG-614-5PL Hydraulic Filter Element

 Parameter Item  Specific Parameters

 Product Name  Turbine Particulate & Water Removal Filter Element / Return Line Filter Element

 Primary Application  Used within hydraulic oil systems to continuously filter out contaminants—such as impurities and moisture—from the oil, ensuring the normal operation of the system.

 Applicable Industries  Power Plants (Steam Turbines), Steel Mills, Tunnel Boring, Mining, Papermaking, Petroleum, Marine, Chemical, Textile, etc.

 Original Brand  PUROLATOR (USA)

 Filtration Medium  Hydraulic Oil, Lubricating Oil, etc.

 Filter Media  Cellulose / Water Removal Material

 Filtration Rating  5 μm

 Filtration Direction  Outside-In

 Filter Element Type  Return Line Filter Element

 Seal Material  Buna (Nitrile Rubber)

 Max. Operating Temperature  120 ℃

 Max. Operating Pressure  ≤ 450 kg (Approx. 45 MPa)
