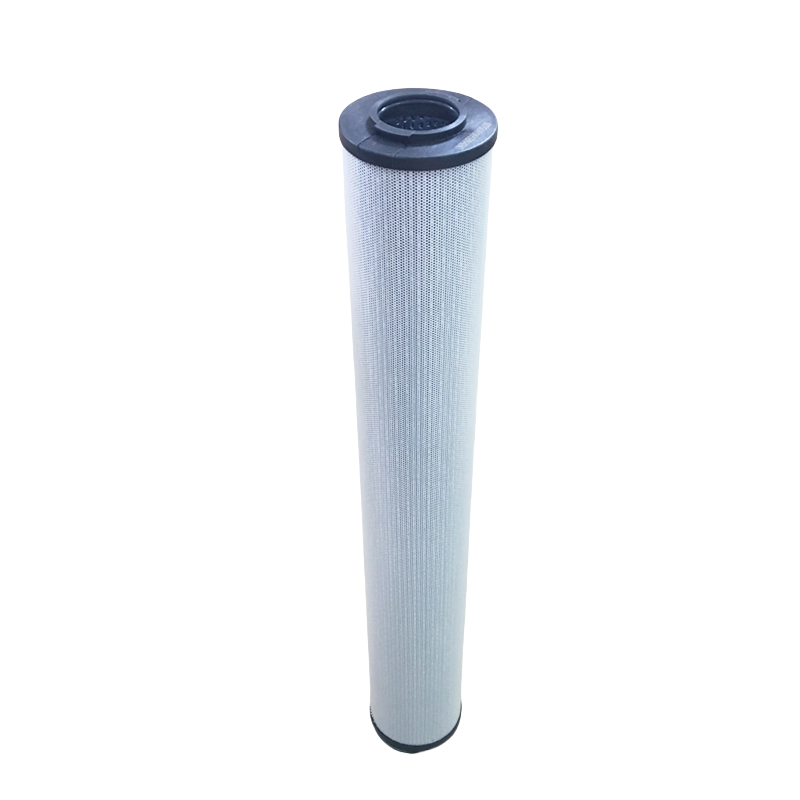

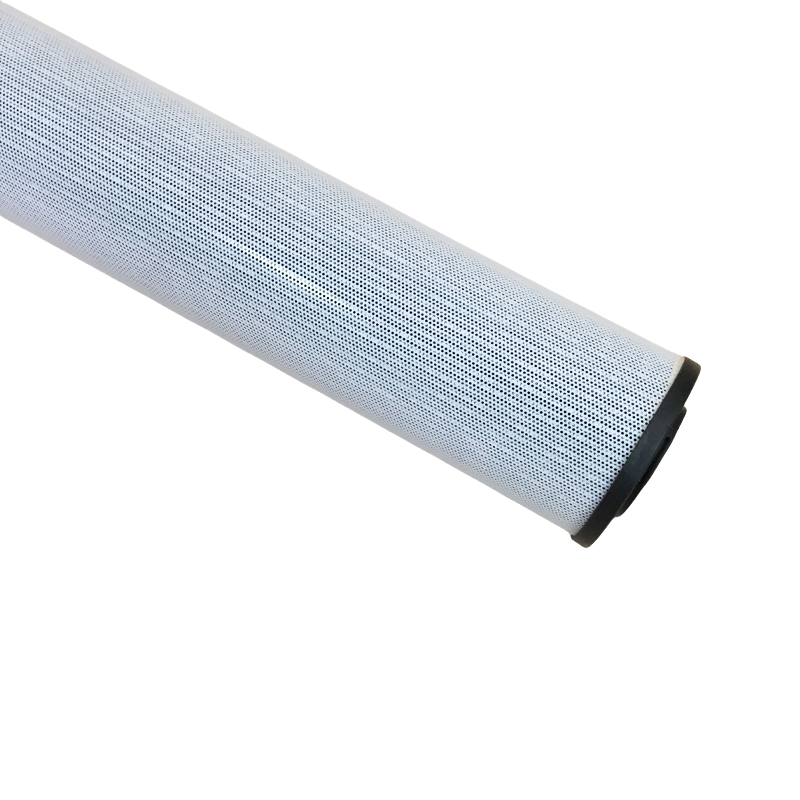

The SH 74522 is an automated wire-threading machine hydraulic oil filter element, commonly used in the hydraulic systems of various types of industrial equipment to filter contaminants from the oil. Basic Technical Parameters

 Parameter Item  Specific Parameters

 Product Name  Hydraulic Oil Filter Element for Automated Threading Lines

 Primary Application  Used within hydraulic oil systems to continuously filter out contaminants—such as impurities and moisture—from the oil, ensuring the normal operation of the system.

 Applicable Industries  Power generation, steel manufacturing, tunnel boring (shield machines), mining, papermaking, petroleum, marine, chemical, textile, automotive, metallurgy, pharmaceuticals, electronics, etc.

 Filtration Media  Hydraulic oil, lubricating oil, gear oil, circulating cooling oil, water-glycol fluids, phosphate ester hydraulic fluids, etc.

 Filter Material  Glass fiber, metal mesh, filter paper, sintered felt, sintered mesh, sintered powder, polypropylene, etc. (Customization available).

 Filtration Precision  Glass fiber media: 1–70 μm; Metal mesh media: 3–400 μm; Filter paper media: 5–40 μm.

 Rated Flow Rate  6 – 9100 L/min

 Max. Working Pressure  ≤ 450 kg (approx. 45 MPa)

 Operating Temperature  -30 – 120 ℃

 Differential Pressure  Min. 0.2 MPa

Product Features and Standards

This filter element is designed with a strong focus on stable performance; its key features include:

- High Dirt-Holding Capacity: Utilizes high-quality imported filter media, allowing a high mass of particulate contaminants to be captured per unit area of ​​filtration material, resulting in a long service life.

- Stable Filtration Precision: Employs advanced processing techniques to minimize mechanical damage to the filter media during the pleating process, thereby ensuring stable and uniform filtration precision throughout the filter element.

- High Structural Integrity: Has successfully passed multiple international standard tests, confirming the absence of any structural defects that could compromise the assessment of its filtration precision.

- Strict Factory Inspection: Implements a comprehensive and rigorous inspection process covering raw materials, semi-finished products, and finished goods; 100% full inspection is conducted on all products prior to shipment.
