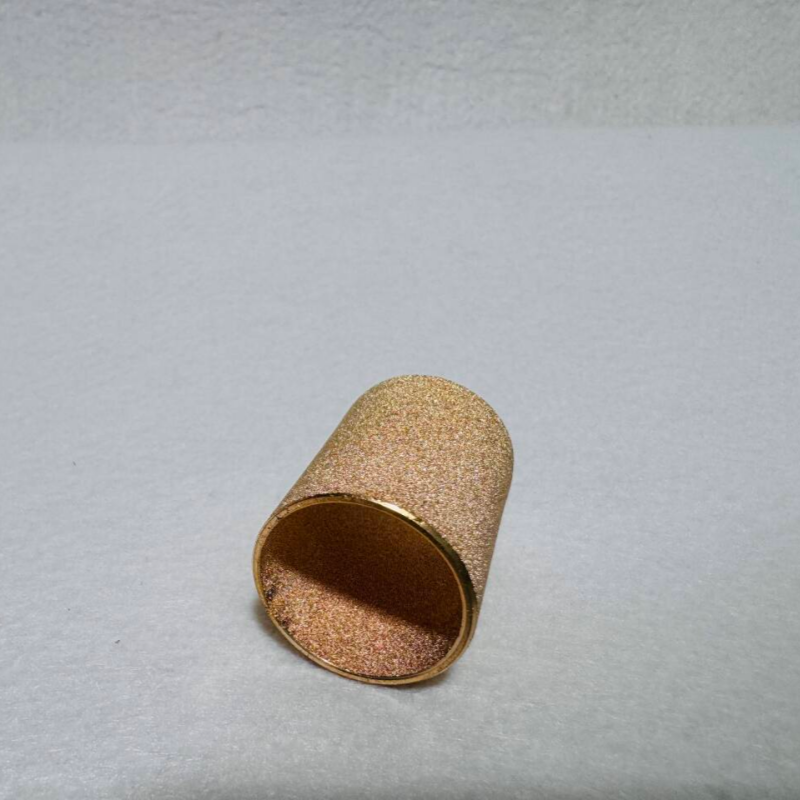

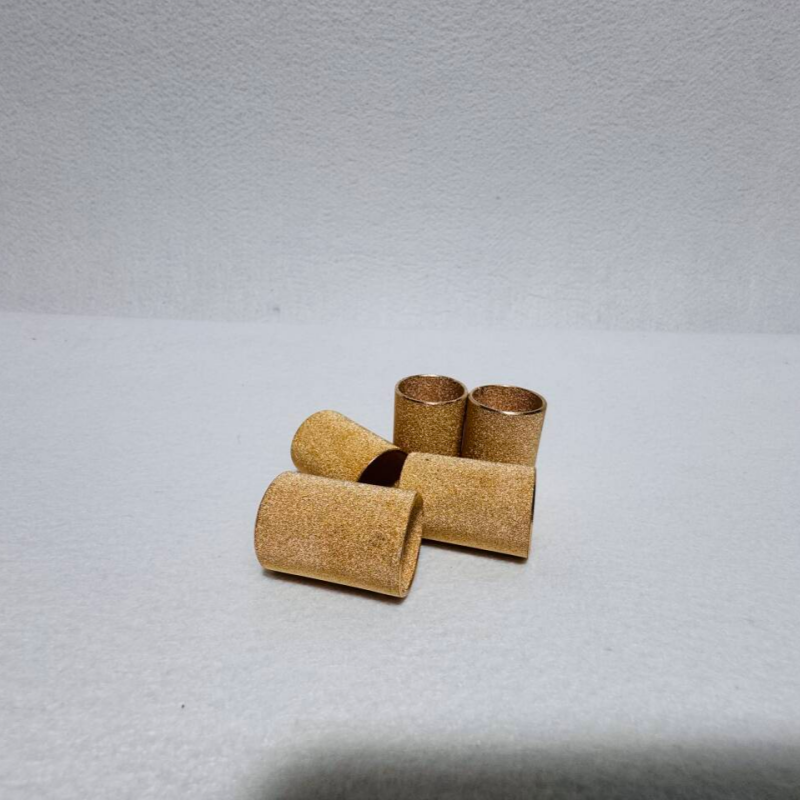

TheSFL 218-60-32-40 is asintered copper powder filter element, a type of sintered metal powder filter element.Key Technical Parameters

Filter Element Type  Sintered Copper Powder Element (Sintered Metal Powder)

Applicable Media  Hydraulic oil, lubricating oil, diesel, natural gas, water, air, etc.

Filtration Precision  0.01 – 500 μm (Optional; specific range depends on the filter material)

Operating Temperature  -30°C ~ 120°C

Max. Operating Pressure  ≤ 450 kg (approx. 45 MPa); 420 kg variants also available

Rated Flow Rate  6 – 9100 L/min

Min. Differential Pressure  0.2 MPa

Filter Material Type  Sintered Copper Powder (Custom options available: glass fiber, metal mesh, sintered stainless steel, etc.)

Seal Material  Nitrile Rubber (NBR), Fluororubber (FKM)

Product Features

Sintered copper powder filter elements offer the following advantages:

1.High Dirt-Holding Capacity: Utilizes high-quality filter media capable of retaining a large mass of particulate contaminants per unit area, resulting in a long service life.

2.Stable Filtration Precision: Advanced processing techniques prevent damage to the filter media during pleating, ensuring consistent and reliable filtration performance.

3.High Structural Integrity: Certified to pass the ISO 2942 Bubble Point Test, confirming that the filter element is free of structural defects.

4.High Temperature and Pressure Resistance: Features a robust sintered structure capable of withstanding maximum operating pressures of up to 450 kg.

5.Cleanable and Reusable: Sintered metal powder filter elements can typically be backwashed to restore a portion of their original filtration capacity.

Main Application Fields

The SFL 218-60-32-40 sintered copper powder filter element is widely utilized in the following industries:

 Industry  Specific Applications

Iron & Steel Metallurgy  Filtration for hydraulic systems in rolling mills and continuous casting machines; filtration for lubrication equipment.

Petrochemicals  Product separation and recovery during refining processes; water injection filtration in oilfields; particulate removal from natural gas.

Electric Power  Power Plants: Purification of Turbine, Boiler Lubrication, Feedwater Pump, Fan, and Dust Removal Systems

Construction Machinery  Hydraulic and Lubrication Systems for Injection Molding Machines, Tunnel Boring Machines, Papermaking Machinery, and Mining Machinery

Shipbuilding  Hydraulic System Filtration

Railway Diesel Engines  Lubricating Oil and Engine Oil Filtration

Automotive / Engineering Vehicles  Filtration of Various Hydraulic Oils
