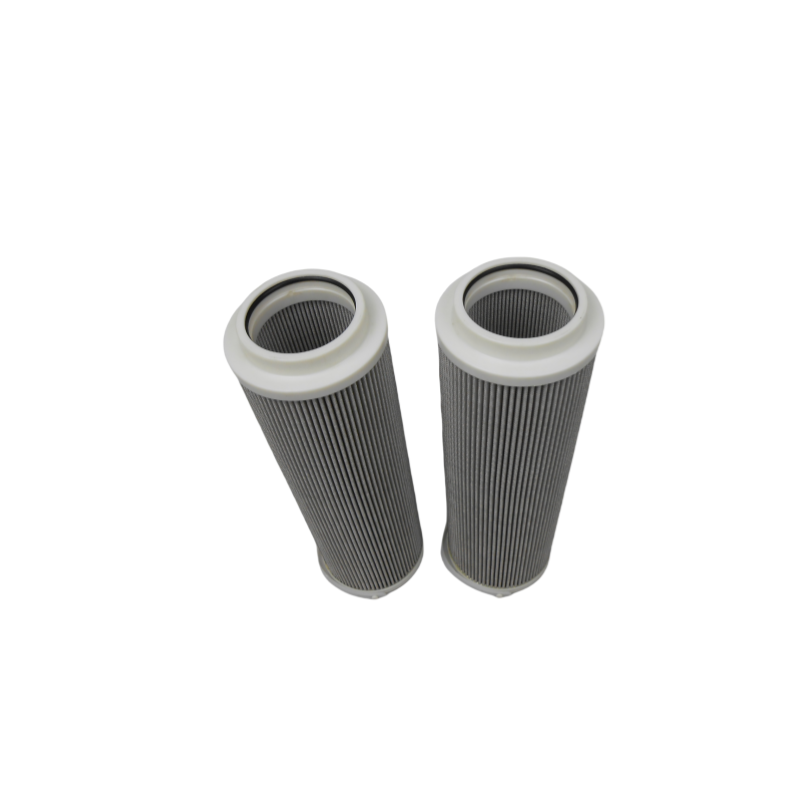

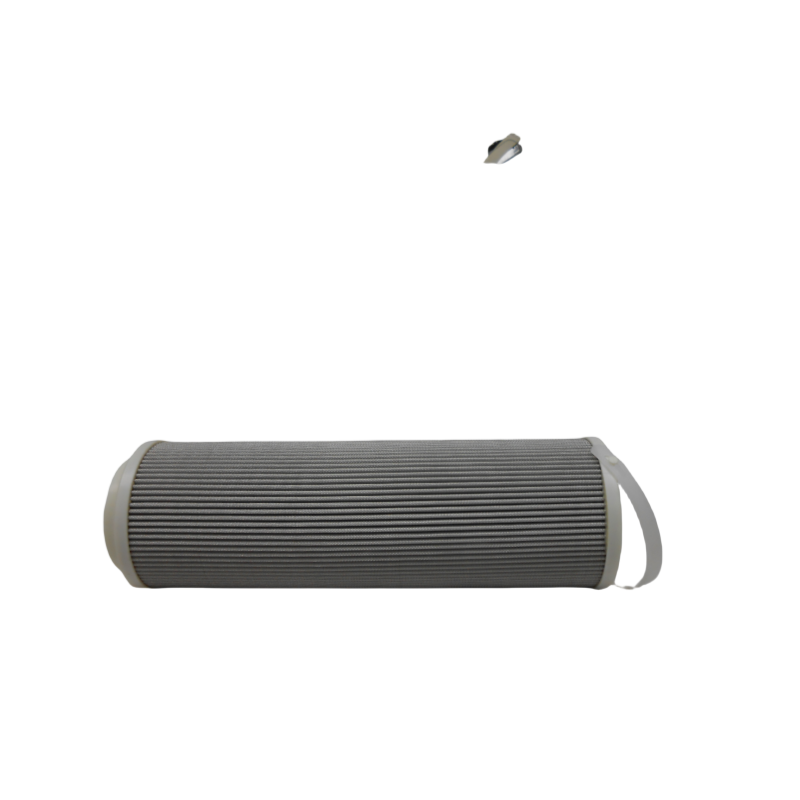

RMFX182A10HBE (MP FILTRI Return Line Filter Element)

Series: RMFX (Tank Top Return Line Filter Element, compatible with MPF182 filter)

Type: Hydraulic Return Line Filter Element

 1. Core Parameters

- Filtration Accuracy: 10μm (Absolute, β₁₀≥1000)

- Filter Media: Glass Fiber (A=Microfiber), High Dirt Holding Capacity

- Seal: EPDM (Ethylene Propylene Diene Monomer, BE=EPDM), Water/Ethylene Glycol Resistant

- Bypass Valve: Built-in, Opening Pressure 3bar (±10%)

- Break Pressure: 20bar

- Operating Temperature: -25℃ ~ +110℃

- Compatible Fluids: Mineral Oil, Emulsions, Water-Ethylene Glycol

- Dimensions: φ82 × Length 420mm

- Rated Flow Rate: 250L/min (Compatible with MPF182)

 2. Model Breakdown (RMFX182A10HBE)

- RMFX: Series (RM=Return Oil, FX=Standard Filter Element)

- 182: Specification (Compatible with MPF182 Filter)

- A: Filter Media (A=Glass Fiber)

- 10: Accuracy (10μm)

- H: With Bypass Valve (H=Bypass)

- BE: Seal (B=EPDM, E=Standard Seal)

 3. Compatible Filters

- MPF1821AF1A10HBP01 (Same Series, Corresponding Assembly Model)

- Installation: Top semi-submersible type, G1¼" thread or SAE flange

- Applications: Construction machinery, hydraulic power units, marine hydraulic systems

 4. Selection Considerations

- Corresponding Older Model: MF182A10HBE

- Replacement Pressure Differential: 2.5 bar (Recommended Replacement Value)
