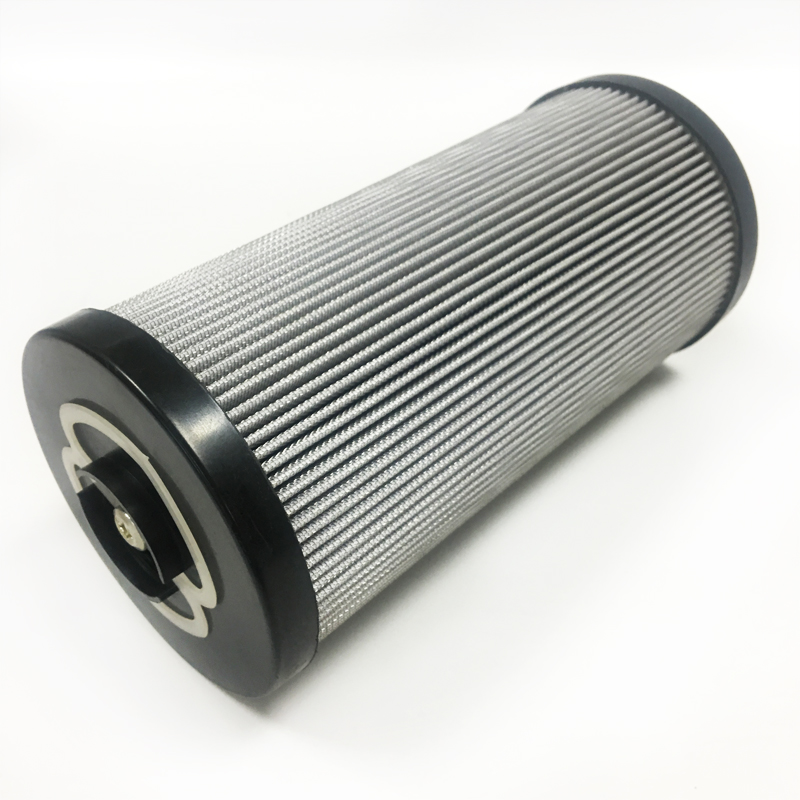

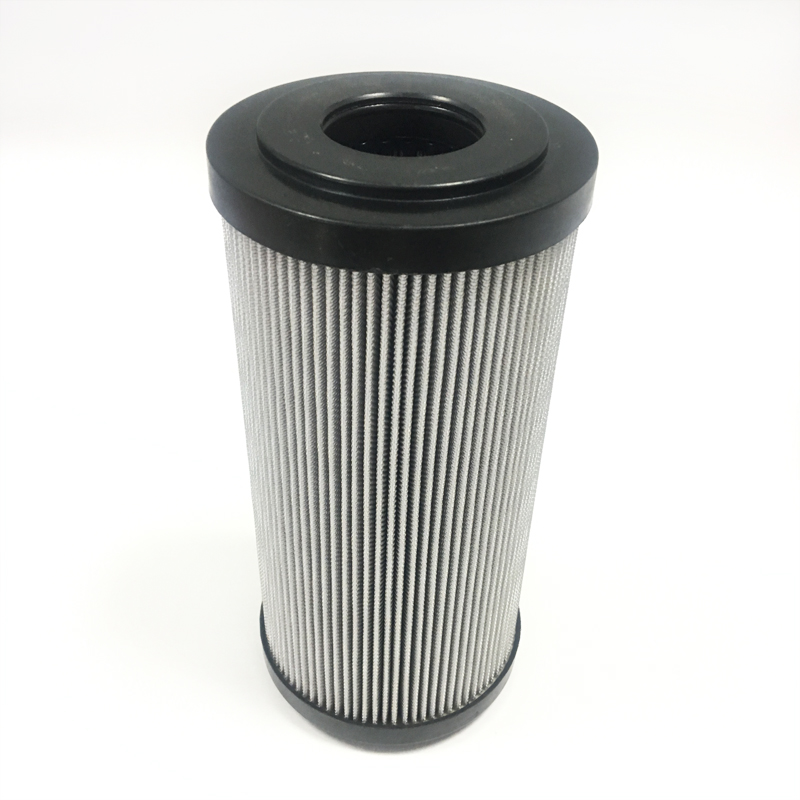

I. CF9701A10NA / CF9701A10NA and CF9702A10NA / CF9702A10NA (same series, different lengths)



Type: Hydraulic Return Line Filter Element



Application: Filters return oil in hydraulic systems, protecting the oil tank and pump valves; compatible with MPF750 series filters.



 1. Common Parameters



 Filtration Accuracy: 10μm (Absolute, β₁₀≥1000)



 Filter Media: Glass fiber (A=Microfiber)



 Seal: NBR (Nitrile Butadiene Rubber) (NA=NBR Seal)



 Bypass Valve: Builtin, Opening Pressure 3bar



 Break Pressure: 20bar



 Temperature: 25℃ ~ +110℃



 Compatible Oils: Mineral oil, emulsions, waterglycol.



 2. Model Differences (Length/Flow Rate)



 Model  Outer Diameter (mm)  Length (mm)  Rated Flow Rate (L/min)





 CF9701A10NA  129  400  623



 CF9702A10NA  129  600  900



 II. MPF7501AF1A10HBP01 (Complete Model: MPF7501AF1A10HBP01)



Type: Tank Top Return Oil Filter Assembly (including filter element)



 Filter Body: Aluminum alloy head + nylon filter cup, G2" internal thread or 2" SAE flange



 Filter Element Model: MF7501A10HB (corresponding to...) CF9701A10NA).



 Core Parameters



 Accuracy: 10μm (glass fiber)



 Flow Rate: 900L/min (max)



 Pressure Resistance: 8 bar (housing)



 Seal: NBR (standard), FPM optional



 Dimensions: φ129×400mm (filter element)



 Applications: Large hydraulic power units, construction machinery, marine hydraulic systems.



=



 III. Model Breakdown (MP FILTRI Rules)



 CF9701A10NA



 CF: Return Oil Filter Series



 970: Specification (Compatible with MPF750)



 1: Length (1=400mm, 2=600mm)



 A: Glass Fiber Filter Media



 10: 10μm Accuracy



 NA: NBR Seal



 MPF7501AF1A10HBP01



 MPF: Tank Top Return Oil Filter



 750: Specification Series



 1: Flow Rating



 A: Glass Fiber



 F1: Flow Direction (Outside → Inside)



 10: 10μm



 H: With Bypass Valve



 B: Standard Differential Pressure



 P01: Version Number





 IV. Selection Considerations



 CF9701A10NA: 400mm long, 623L/min, general operating conditions



 CF9702A10NA: 600mm long, 900L/min, high flow rate system



 MPF7501AF1A10HBP01: Filter assembly, including filter element + housing, directly installed on top of the oil tank.
