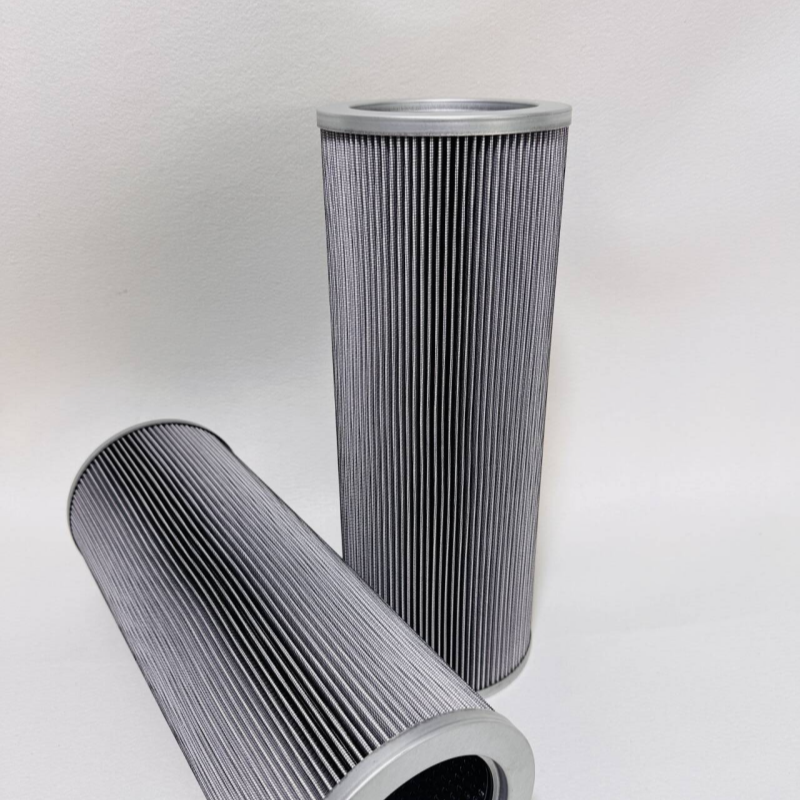

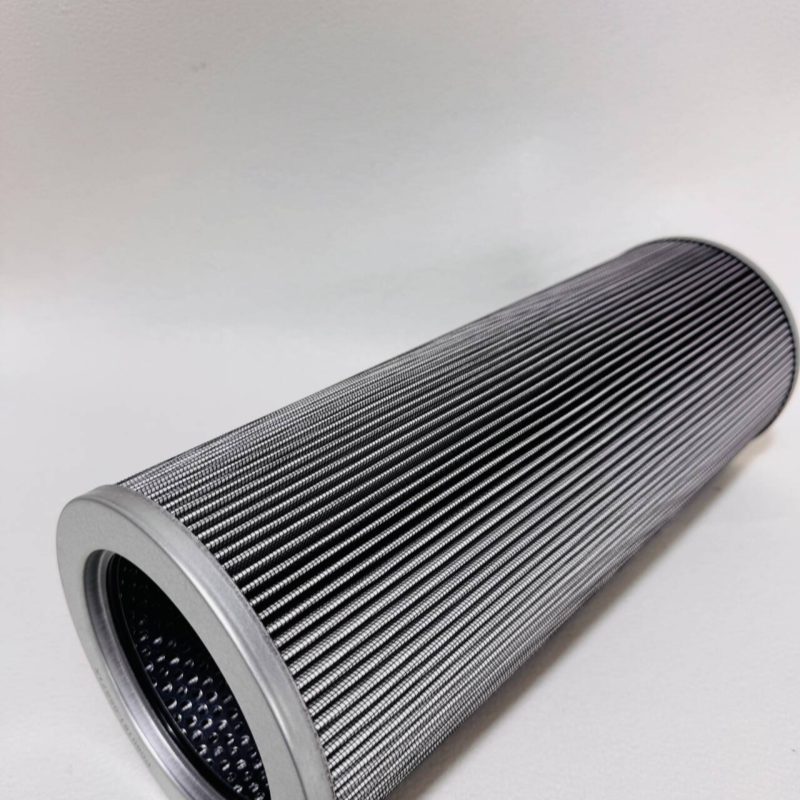

The P060160-10S71X is a filter element for differential reducer circulating lubrication oil pumps, commonly utilized in the hydraulic oil systems of large-scale industrial equipment found in power plants, steel mills, mines, and similar facilities.

The following is a summary of its basic parameters and characteristics:

 Product Name  Filter Element for Differential Reducer Circulating Lubrication Oil Pumps / Hydraulic Oil Filter Element

 Primary Application  Used within hydraulic oil systems to continuously filter out contaminants—such as impurities and moisture—from the oil, thereby ensuring the normal and reliable operation of the system.

 Applicable Industries  Power generation, steel manufacturing, tunneling (shield machines), mining, papermaking, petroleum, marine, chemical, textile, and various power machinery sectors.

 Available Filter Media  Glass fiber, filter paper, metal mesh, metal powder, sintered metal, sintered felt, etc.

 Filtration Precision  Glass Fiber Media: 1–70 μm; Metal Mesh Media: 3–400 μm; Filter Paper Media: 5–40 μm

 Rated Flow Rate  6 – 9100 L/min

 Operating Pressure  ≤ 450 kg (approx. 45 MPa)

 Operating Temperature  -30 – 120 ℃

Product Features and Standards

This filter element is designed with a strong emphasis on stable performance; its key features include:

-   High Dirt-Holding Capacity: Utilizes high-quality imported filter media, allowing for a high capacity of particulate contaminant retention per unit area, resulting in an extended service life.

-   Stable Filtration Precision: Employs advanced processing techniques to minimize damage to the filter media caused by mechanical stress during the pleating process, thereby ensuring consistent and uniform filtration precision.

-   High Structural Integrity: Has successfully passed multiple standard integrity tests, confirming the absence of any structural defects that could compromise the accuracy of filtration performance assessments.

-   Rigorous Factory Inspection: Subjected to 100% comprehensive inspection to ensure worry-free product quality upon delivery. Its production and testing processes adhere to multiple international standards to ensure reliable performance:

-   ISO 2941 (Filter element collapse/burst resistance test method)

-   ISO 2942 (Hydraulic filter element structural integrity test method)

-   ISO 2943 (Hydraulic filter element material and fluid compatibility test method)

-   ISO 3723 (Filter element end load test)

-   ISO 3724 (Determination of filter element fatigue characteristics)

-   ISO 3968 (Filter element differential pressure/flow characteristics)

-   ISO 4572 (Multi-pass method for determining filter element filtration characteristics)

-   ISO 16889 (Filtration ratio / Dirt-holding capacity)

.
