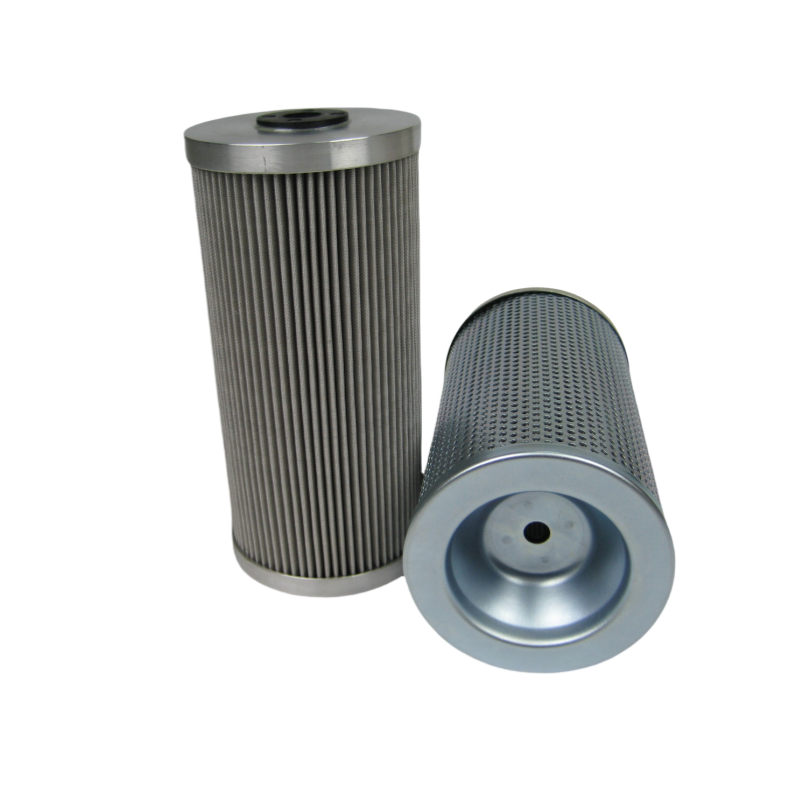

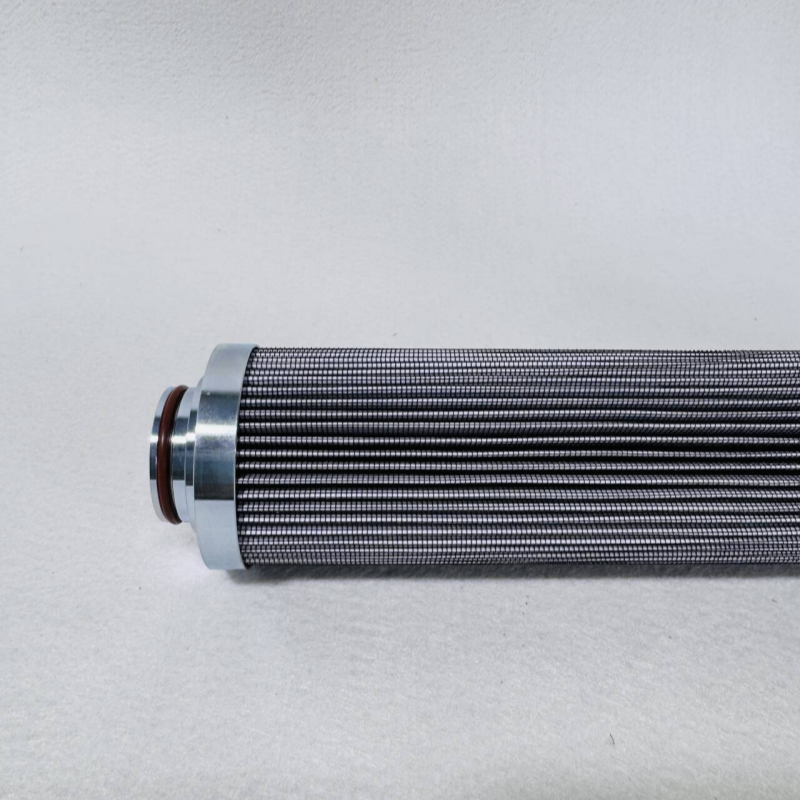

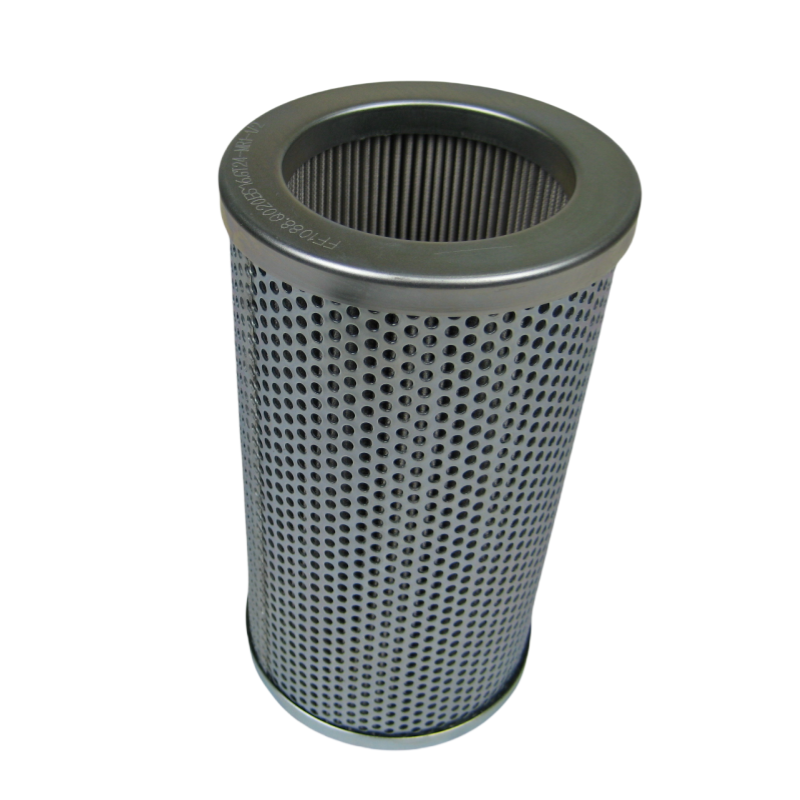

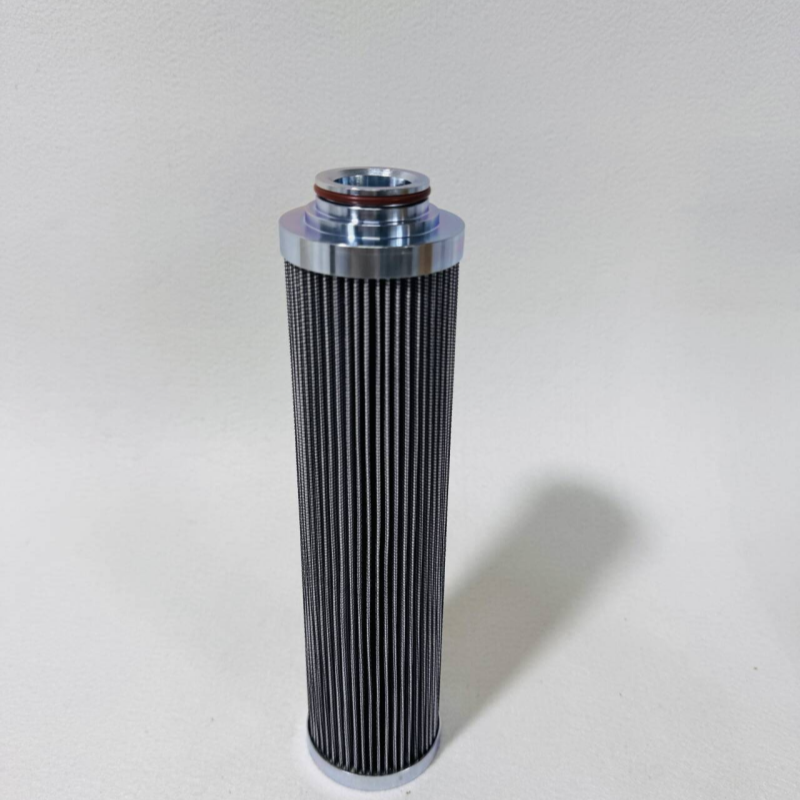

The 860114658 is an inlet suction filter element designed for the lubrication oil pumps of steam turbines (including auxiliary turbines) in power plants; it is primarily used for suction-side filtration within hydraulic oil systems to protect critical equipment, such as oil pumps. Basic Technical Parameters

 Parameter Item       Specific Parameters

 Product Name     Power Plant Turbine/Auxiliary Machine Lubricating Oil Pump Suction Filter Element

 Primary Application  Installed at the oil pump suction port to filter out contaminants—such as impurities and moisture—from the oil, thereby protecting the oil pump and hydraulic components from damage.

 Applicable Industries  Power plants, steel mills, tunnel boring (TBM), mining, papermaking, petroleum, marine, chemical, textile, and various types of power machinery, etc.

 Optional Filter Media  Glass fiber, filter paper, metal mesh, sintered metal powder, sintered metal, sintered felt, etc.

 Filtration Precision  Glass fiber media: 1–70 μm; Metal mesh media: 3–400 μm; Filter paper media: 5–40 μm

 Rated Flow Rate  6 – 9100 L/min

 Working Pressure  ≤ 450 kg (approx. 45 MPa)

 Working Temperature  -30 – 120 ℃

Product Features and Standards

This filter element is designed with a strong focus on stable performance; its key features include:

-   High Dirt-Holding Capacity: Utilizes high-quality imported filter media, ensuring a long service life.

-   Stable Filtration Precision: Employs advanced processing techniques to minimize mechanical damage to the filter media during the pleating process, thereby guaranteeing stable and uniform filtration precision.

-   High Structural Integrity: Has successfully passed multiple international standard tests, confirming the absence of any structural defects that could compromise filtration precision.

-   Strict Factory Inspection: Subjected to 100% comprehensive inspection to ensure product quality.

Its production and testing processes adhere to various international standards to ensure reliable performance:

-   ISO 2941 (Hydraulic fluid power — Filter elements — Verification of collapse/burst resistance)

-   ISO 2942 (Hydraulic fluid power — Filter elements — Verification of fabrication integrity and determination of the first bubble point)

-   ISO 2943 (Hydraulic fluid power — Filter elements — Verification of material compatibility with fluids)

-   ISO 3723 (Hydraulic fluid power — Filter elements — Method for end load test)

-   ISO 3724 -   (Determination of Filter Element Fatigue Characteristics)

-   ISO 3968 (Filter Element Pressure Drop-Flow Characteristics)

-   ISO 4572 (Multi-Pass Method for Determining Filter Element Filtration Characteristics)

-   ISO 16889 (Filtration Ratio / Dirt-Holding Capacity)
