NBF25.10P.II, AFS2015010 respirator filter element

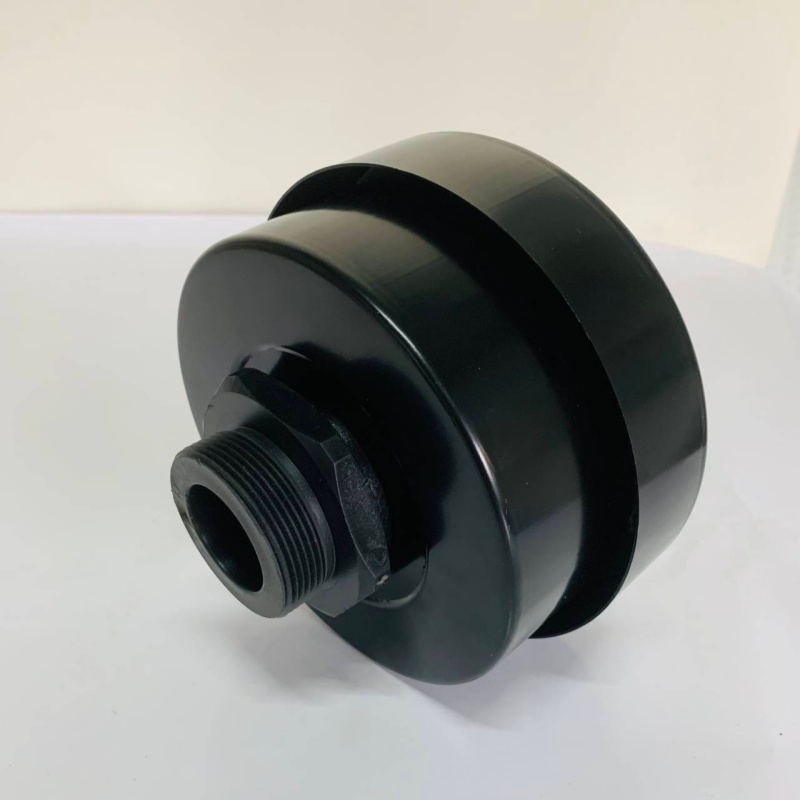

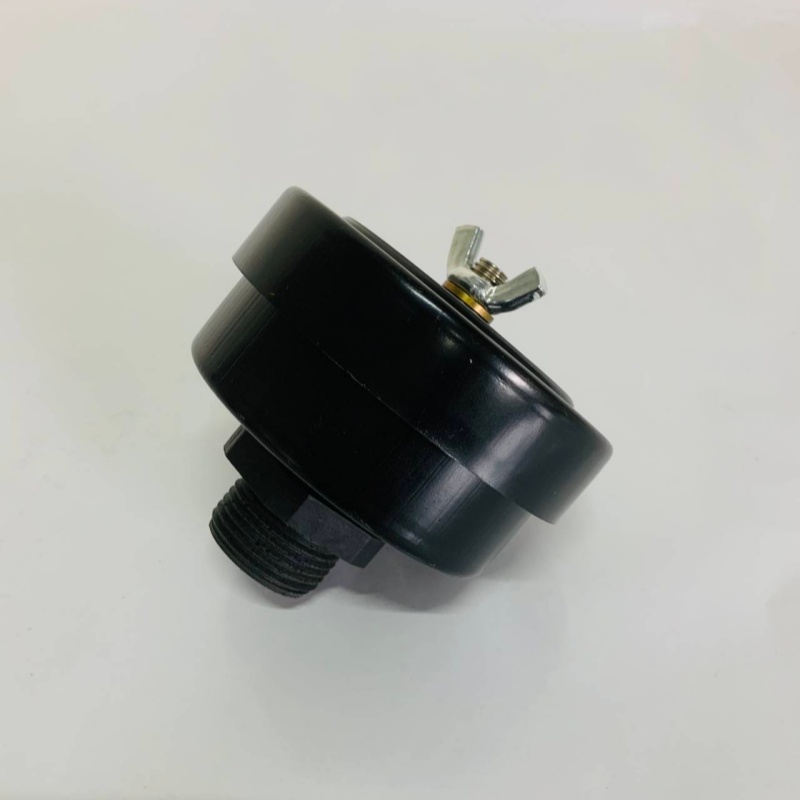

 I. NBF25.10P.II (Eaton/Internormen Breathing Filter)



Model: NBF25.10P.II (Common Order Number: NBF250201)



Type: Hydraulic Tank Breathing Filter



 1. Core Parameters



 Filtration Accuracy: 10μm (Paper)



 Filter Media: Resinimpregnated filter paper (P)



 Sealing: NBR nitrile rubber (P), oilresistant



 Connection: G1" (1inch BSPP) internal thread



 Flow Rate: 120 CFM (≈3.4 m³/min)



 Dimensions: φ115 × Height 186 mm, Weight approx. 0.8 kg



 Temperature: 20℃ to +80℃



 Function: Provides dust and moisture protection during oil tank breathing, preventing particles/moisture from entering the hydraulic oil.



 2. Model Breakdown (NBF25.10P.II)



 NBF: Series (Breather Filter Breather)



 25: Specification (NBF25, flow rate 120 CFM)



 10P: 10μm paper filter media



 II: Structure (with double threaded connector, no oiling filter screen)



 II. Afs2015010 (Industrial Breather Filter Element)



Model: Afs2015010



Type: 20inch industrial pleated breather/breathing filter element



 1. Core Parameters



 Accuracy: 10μm (nominal)



 Filter Media: Polypropylene (PP) pleated membrane, waterresistant and corrosionresistant



 Dimensions: 20" × 2.5" (508mm × 63.5mm), Standard 20inch



Flow Rate: 15–25 L/min (gas)



Pressure Resistance: ≤7 bar



Temperature: 4–60℃



Sealing: EPDM rubber



Applications: Breathing tanks/water tanks, dust and moisture protection, gas prefiltration



 2. Model Breakdown (Afs2015010)



 Afs: AFS series



 20: 20inch length



 150: 150mm² filter area



 10: 10μm filtration accuracy





 III. 30BHN520 (Seawater/Liquid Filter Cartridge, same as SPE520BB type)



Model: 30BHN520 (equivalent to SPE520BB / 101202)



Type: 20" × 4.5" large blue bottle, 5μm, seawaterspecific pleated filter cartridge



 Filter Media: Allpolypropylene (PP), seawater/high salinity resistant



 Accuracy: 5μm (nominal)



 Dimensions: 20" × 4.5" (508 × 114mm)



 Flow Rate: 15–25 L/min (liquid)



 Pressure Resistance: ≤7 bar



 Temperature: 4–52℃



 Applications: Pretreatment for seawater desalination RO, marine seawater filtration, highsalinity wastewater pretreatment
