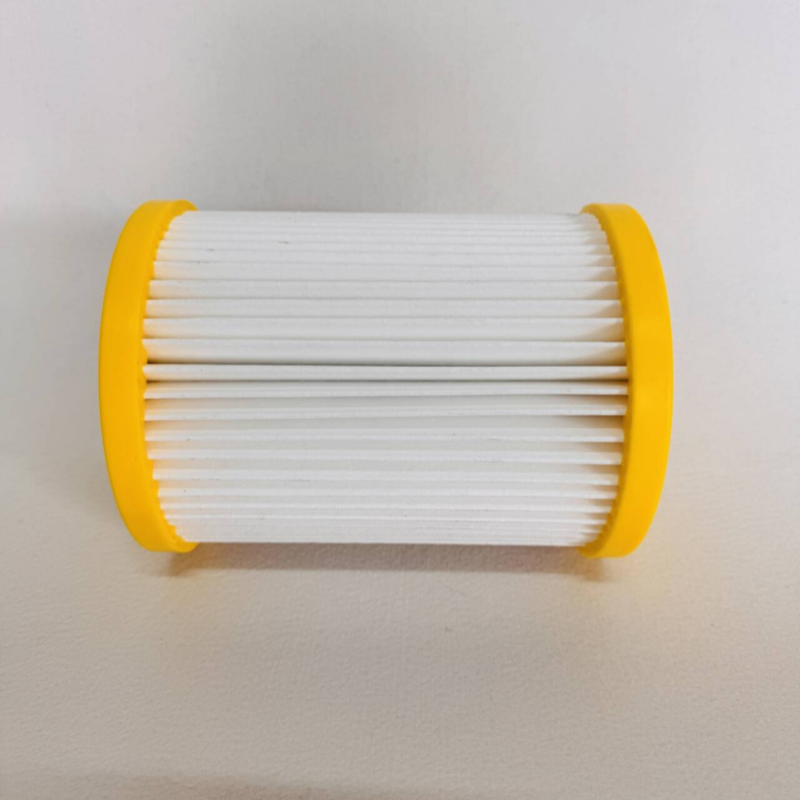

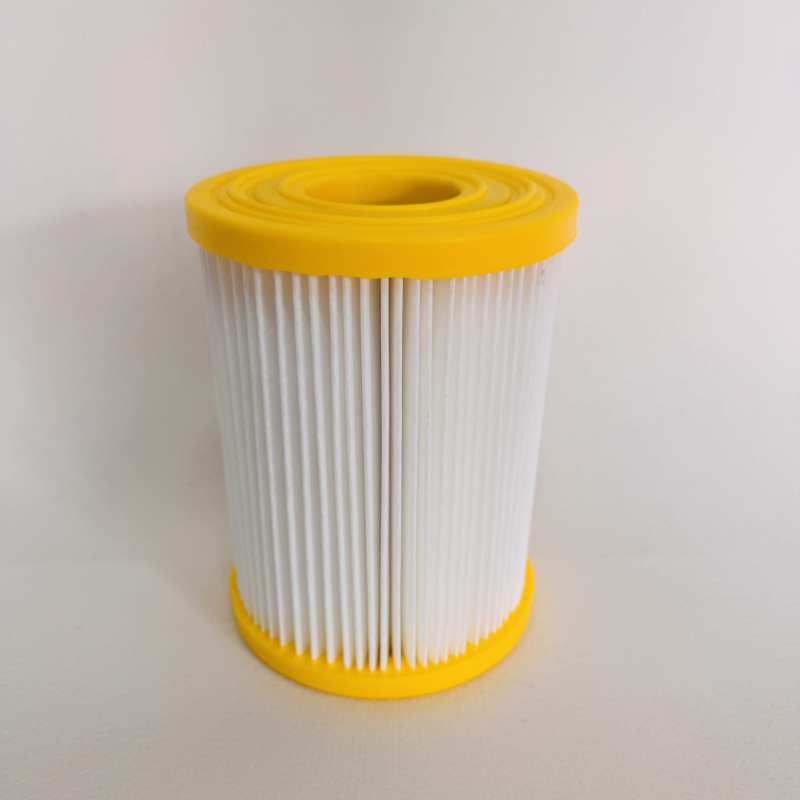

Model: MP0.5LX3SB

- Product Type: Oil Filter Coalescing Filter Element (Aviation Fuel/Lubricating Oil Oil-Water Separator)

- Core Function: Removes water (free water, emulsified water), oil mist, and tiny solid particles from oil, achieving demulsification and coalescence separation.

Oil flows from the outside to the inside through the filter element, completing three-stage separation:

1. Filter Layer: Multi-layer composite filter paper intercepts solid impurity particles.

2. Demulsification Layer: Destroys the oil-water emulsion structure, separating oil-in-water or water-in-oil states.

3. Coalescing Layer: Tiny water droplets adhere, move, and converge on the glass fiber surface, coalescing into large droplets.

4. Gravity Settling: Large droplets settle to the bottom collection tank of the filter and are discharged through the drain valve.

5. Clean Oil: The dehydrated oil is returned to the system.

 Product Features

1. Multi-layer Composite Filter Paper: High filtration accuracy and large dirt-holding capacity.

2. Special Fiberglass Layer: Carefully designed fiberglass layer for excellent coalescence.

3. High Flow Density: Reduces the size of the fine filter, resulting in a compact structure.

4. Long Service Life: Large dirt-holding capacity; replacement cycle can reach 6-12 months.

5. Complete Specifications: Meets the installation requirements of different oil filter units.

---

 Testing Standards (Supplier Claims)

Complies with 8 ISO international standards:

- ISO 2941 (Break Resistance)

- ISO 2942 (Structural Integrity, 100% Inspection)

- ISO 2943 (Material Compatibility)

- ISO 3723 (End Load)

- ISO 3724 (Fatigue Characteristics)

- ISO 3968 (Pressure Differential Flow Characteristics)

- ISO 4572/16889 (Filtration Accuracy and Dirt Holding Capacity)

---

 Application Areas

- Aviation Fuel: Dehydration and impurity removal from jet fuel, kerosene, and gasoline.

- Hydraulic Systems: Turbine oil, fire-resistant oil, and lubricating oil purification

Petrochemical Industry: Oil-water separation and recovery in oil refining and chemical production

General Industry: Oil filtration for power machinery in steel mills, tunnel boring machines, mining, papermaking, petroleum, shipbuilding, chemical, and textile industries
