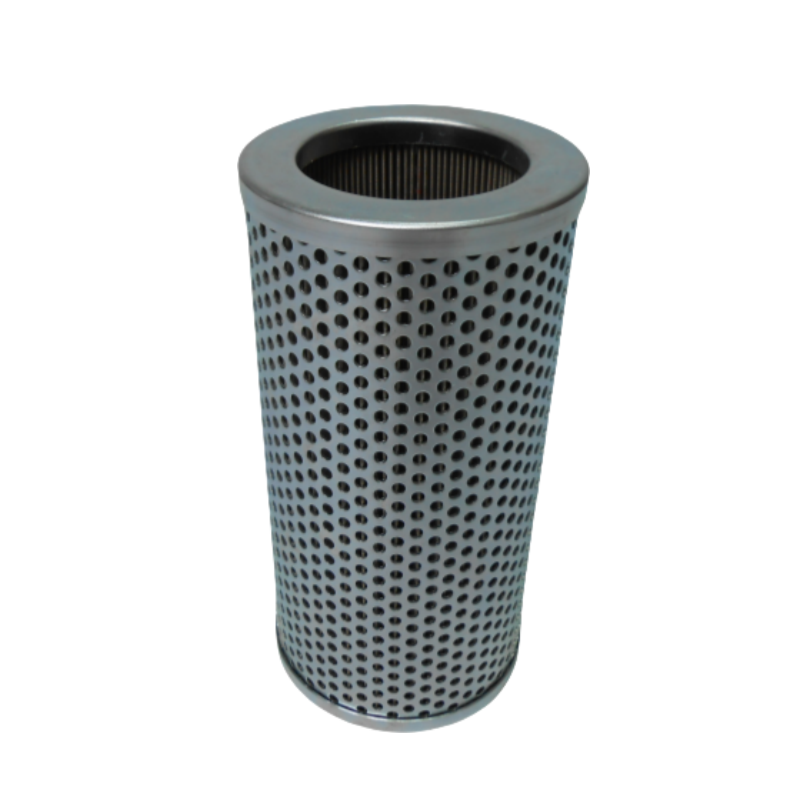

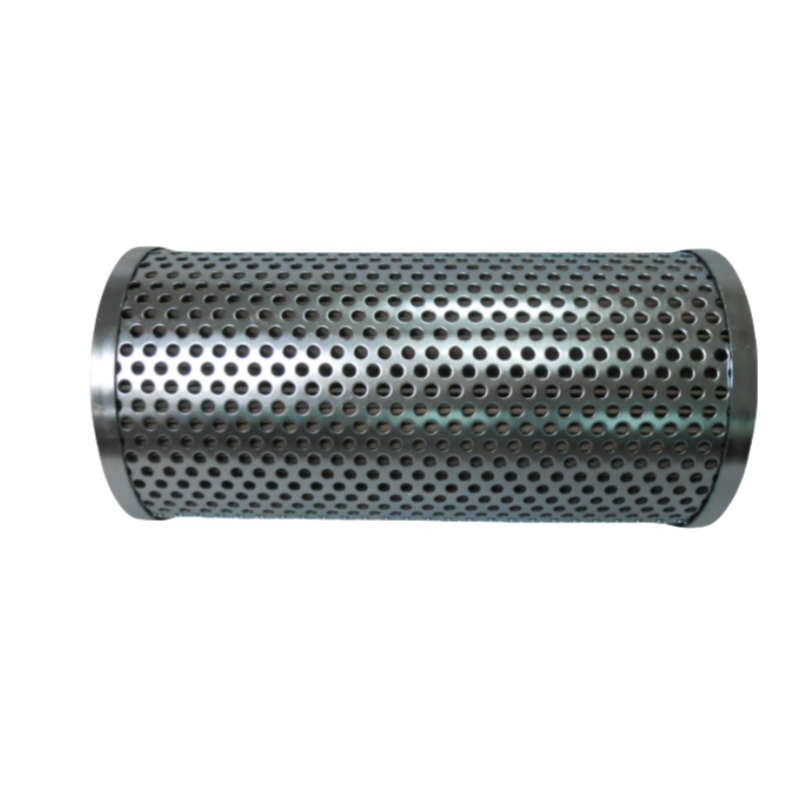

The MFE3100 is primarily used in return line / low-pressure hydraulic systems.

 I. Core Parameters

- Model: MFE3100 (Related Series: MFE3100A10, MFE3100P25, MFE3100M90)

- Type: Folded Filter Element

- Filtration Rating: 10 μm (A10) / 25 μm (P25) / 90 μm (M90) (Suffix indicates rating)

- Filter Media:

- A Series: High-precision Glass Fiber (Microfiber); Absolute filtration; βₓ ≥ 100

- P Series: Resin-impregnated Filter Paper; Nominal filtration

- M Series: Stainless Steel Wire Mesh; Coarse filtration

- Seal Material: NBR (Nitrile Rubber, N) / FPM (Fluorocarbon Rubber, V)

- Operating Pressure: Max. 20 bar (2 MPa) (Low-pressure return line)

- Operating Temperature: -25°C to +110°C

- Rated Flow Rate: Approx. 100–150 L/min (3100 Series Specification)

- Dimensions (Reference): Outer Diameter 80–90 mm, Length 250–300 mm

- Bypass Valve Opening Pressure: 3 bar (NBR) / 1.75 bar (FPM)

- Compatible Media: Mineral hydraulic oils, Phosphate ester fire-resistant fluids, Water-glycol fluids, Gear lubricants

- Standards: ISO 16889, ISO 3723, ISO 2941–2943

 II. Model Designation (Example: MFE3100A10N)

- MFE: MP FILTRI Filter Element Series Code

- 3100: Size / Flow Series

- A: Fiberglass Filter Media (Absolute Filtration)

- 10: Filtration Rating: 10 μm

- N: NBR (Nitrile Rubber) Seals

 III. Applications

- Hydraulic system return lines and in-tank filtration

- Low-pressure hydraulic circuits in construction machinery, machine tools, metallurgy, mining, marine equipment, etc.

- Function: Captures system wear particles and impurities, protecting precision components such as pumps, valves, and cylinders.
