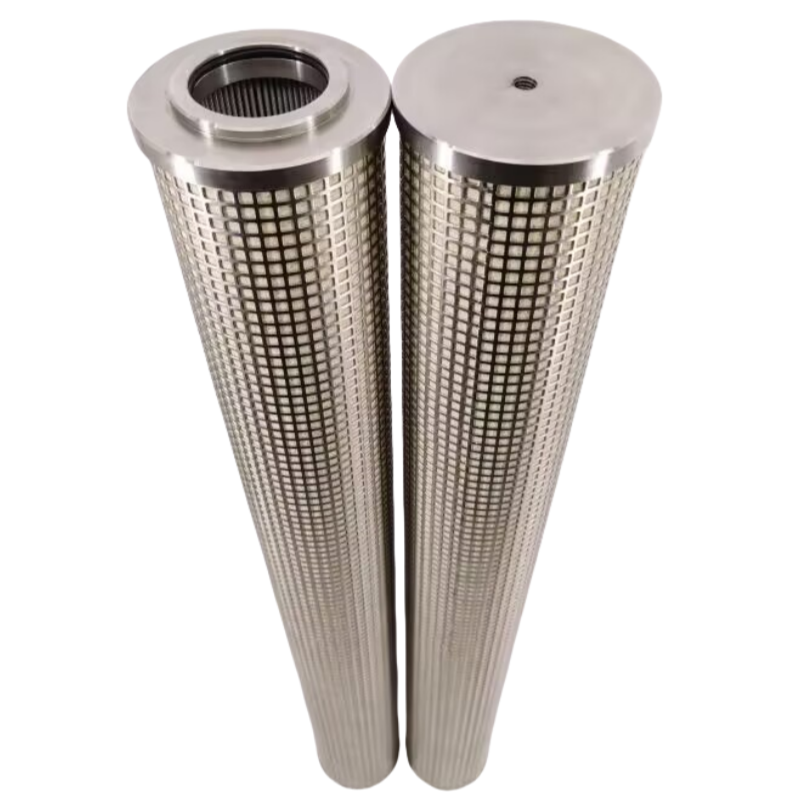

The INR-S-0860-D-UPG-V is widely used in demanding operating environments, such as steel mills, wind power facilities, and construction machinery.  I. Core Parameters

- Model: INR-S-0860-D-UPG-V (Related Series: INR-S-0860-D-UPG-AD, INR-S-0860-D-CC03-V)

- Type: Pleated High-Pressure / Return-Line Filter Element

- Filtration Rating: 10 μm (UPG Standard Rating)

- Filter Media: Multi-layer Imported Glass Fiber (Microglass) + Inner and Outer Stainless Steel Support Cages

- Seal Material: Viton (Fluorocarbon Rubber; represented by 'V') — Oil-resistant, high-temperature resistant, and corrosion-resistant

- Operating Pressure: Max. 320 bar (32 MPa) (Suitable for high-pressure circuits)

- Operating Temperature: -30°C to +120°C

- Rated Flow Rate: Approx. 80–100 L/min (Based on 860 Series specifications)

- Dimensions (Reference): Outer Diameter 86 mm, Length 300–350 mm (860 Series Standard)

- Compatible Media: Mineral hydraulic oils, phosphate ester fire-resistant fluids, gear lubrication oils

- Standards: ISO 16889, ISO 3723, ISO 2941–2943

 II. Model Designation (INR-S-0860-D-UPG-V)

- INR: Indufil Filter Element Series Code

- S: Pleated Type (Spiral/Folded)

- 0860: Size Series (Outer diameter approx. 86 mm)

- D: Double Open-Ended / Open at Both Ends

- UPG: Glass Fiber Media, 10 μm Rating

- V: Viton (Fluorocarbon Rubber) Seals

 III. Application Scenarios

- - Steel Mills: Strip production lines, rolling mill hydraulic/lubrication systems

- Wind Power: Wind turbine gearboxes, high-pressure circuits in hydraulic stations

- Engineering Machinery, Mining, and Marine Applications: High-pressure hydraulic systems

- Function: Captures metallic abrasive particles and impurities, protecting precision components such as pumps, valves, and cylinders.
