I. Basic Information

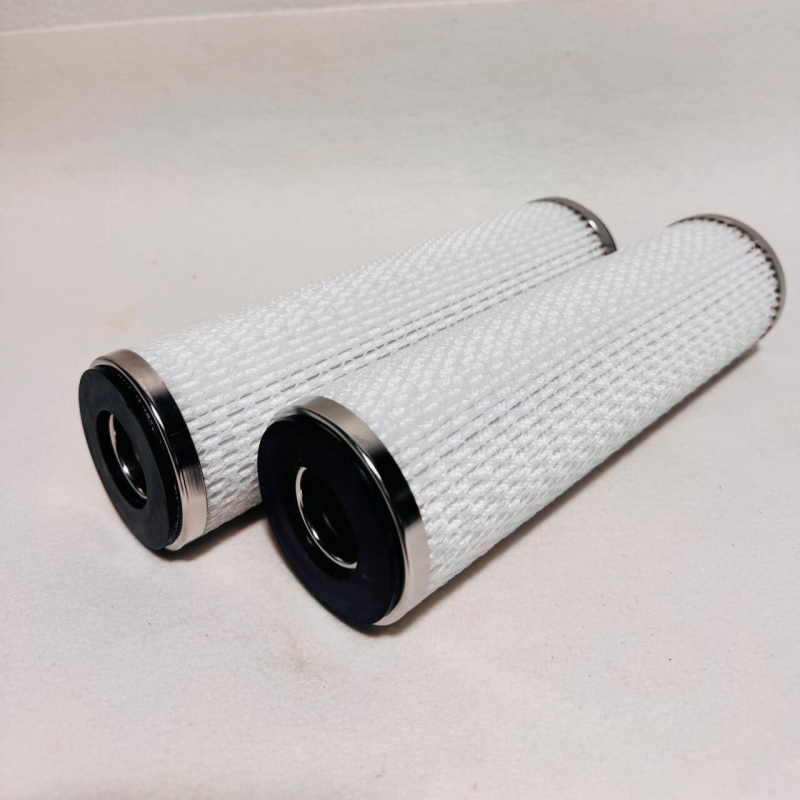

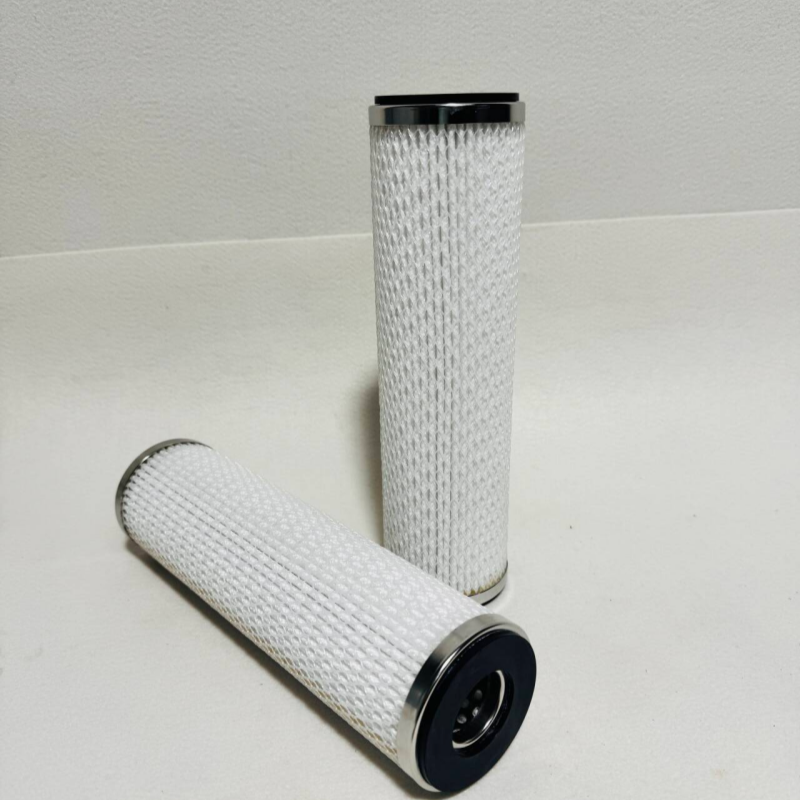

Model: MCS1001UV (Standard Model MCS1001U100ZH13)

Brand: Pall

Filter Media: Ultipor resin bonded glass fiber (no media migration, fixed pores)

Structure: Folded type, steel internal support + steel end caps, internal O-ring seal

Accuracy: 10μm (absolute accuracy), β₁₀≥5000 (efficiency ≥99.98%)

Dimensions: Outer diameter approx. 64mm, length approx. 250mm (10")

Filtration Area: Approx. 5.0㎡

 II. Operating Parameters

Maximum Temperature: 135°C (275°F)

Maximum Differential Pressure: 4.13bar (60psid) @ 135°C (Replace differential pressure recommended)

Material Compatibility:

Liquids: Water, oil, solvents, acids, alkalis, ethylene glycol, emulsions, etc.

Gases: Natural gas, compressed air, process gases (removal of solids/droplets)

Sealing: Standard NBR (Nitrile Butadiene Rubber), optional EPDM, fluororubber, silicone rubber

 III. Core Features

1. Dual-Purpose Gas/Liquid Filtration: The same filter element can be used for liquid filtration (removal of particles/gels) and gas filtration (removal of solids/droplets, efficiency >99.98%).

2. High Dirt Holding Capacity + Low Pressure Drop: The pleated structure provides a large filtration area, strong dirt holding capacity, low initial pressure drop, and long service life.

3. Absolute Precision: Resin-bonded glass fiber, no media migration, stable pores, ensuring long-term filtration efficiency.

4. High-Pressure Operation: Steel frame + end caps, maximum pressure resistance 4.13 bar, suitable for industrial high-pressure systems.

 IV. Typical Applications

Hydraulic/Lubrication Systems: Oil particle removal, contamination control

Natural Gas/Compressed Air: Removal of solid particles and droplets

Chemical/Petroleum: Process fluid and finished product filtration

Power Plant/Steel Plant: Water, oil, and gas purification

 V. Model Description (MCS1001U100ZH13)

MCS: Series code (high-pressure folding, gas-liquid dual-purpose)

1001: Specification (10" length, standard flow rate)

U100: Ultipor glass fiber, 10μm precision (UV=U100)

ZH13: Seal + end cap (Z=standard end cap, H13=NBR seal)
