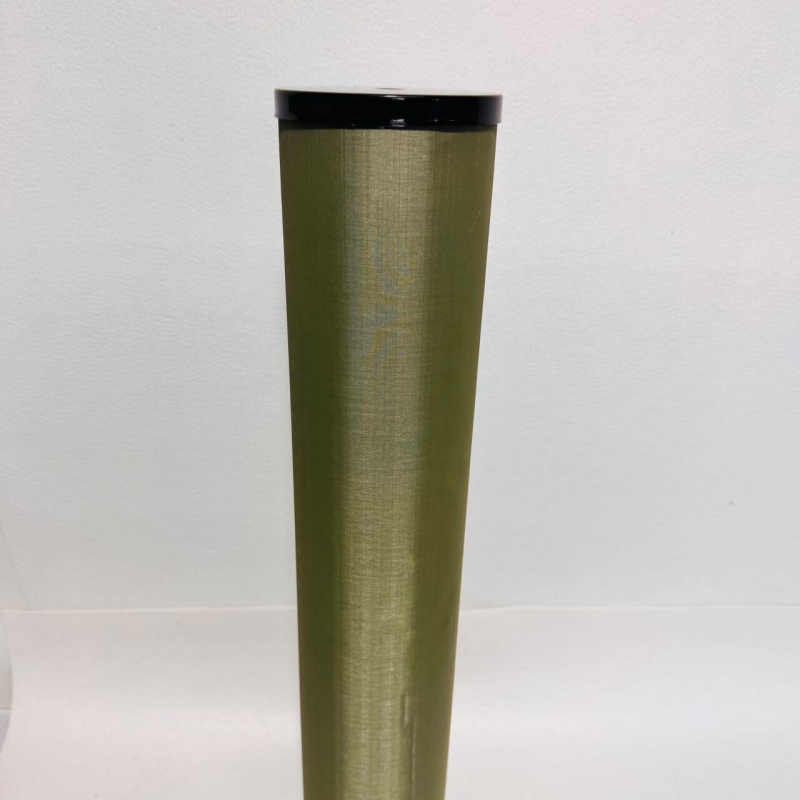

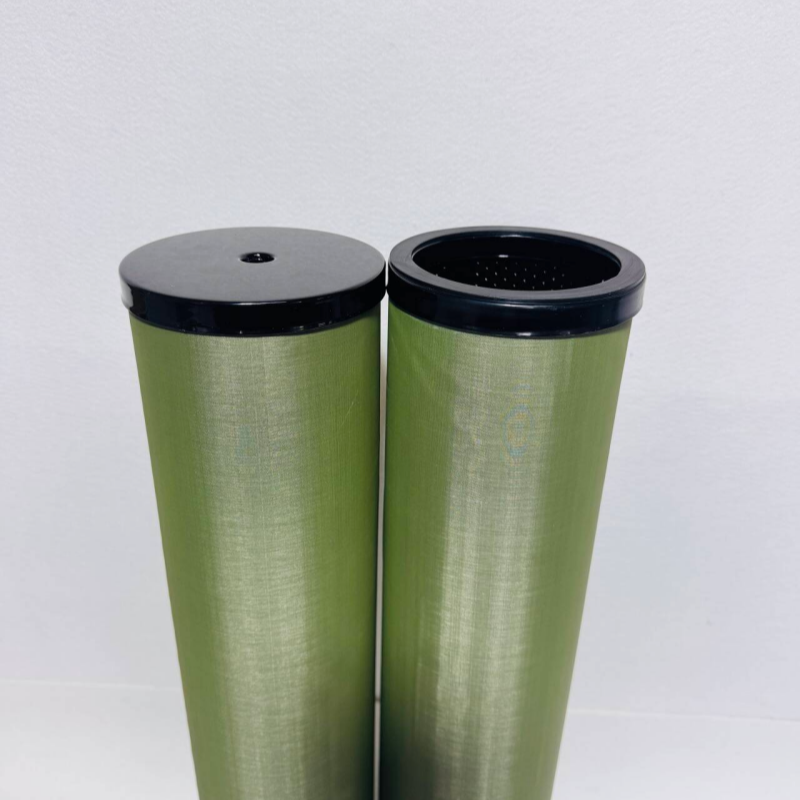

Project  JLX-10-6 (Coalescing Filter Cartridge)  YSF-24T (Separation Filter Cartridge)

 Main Functions  Coalesces tiny water droplets in the oil, enlarging them; simultaneously filters particulate impurities.  Prevents water from passing through, allowing the already coalesced large water droplets to settle and separate, achieving oil-water separation.   Filter Media/Frame  Fiberglass, Stainless Steel  Fiberglass, Stainless Steel

 Media Flow Direction  From Inside to Outside  From Outside to Inside

 Operating Temperature  -30℃ to 175℃ (varies by brand)  -30℃ to 125℃

 ⚙️ Product Working Principle

These two filter elements typically work together in a coalescing and separating oil filter. The core principle is to physically remove water and particulate matter from the oil:

1. Coalescing Stage: The oil first flows through the JLX-10-6 coalescing filter element (flow direction: from inside to outside). The filter element's special material coalesces and amplifies the tiny water droplets dispersed in the oil.

2. Separation Stage: The oil then flows through the YSF-24T separating filter element (flow direction: from outside to inside). The separating filter element's material is hydrophobic, allowing oil to pass through but preventing large water droplets from passing through. The large water droplets that are blocked accumulate further on the surface of the filter element and eventually settle into the water collection tank due to gravity and are discharged.
