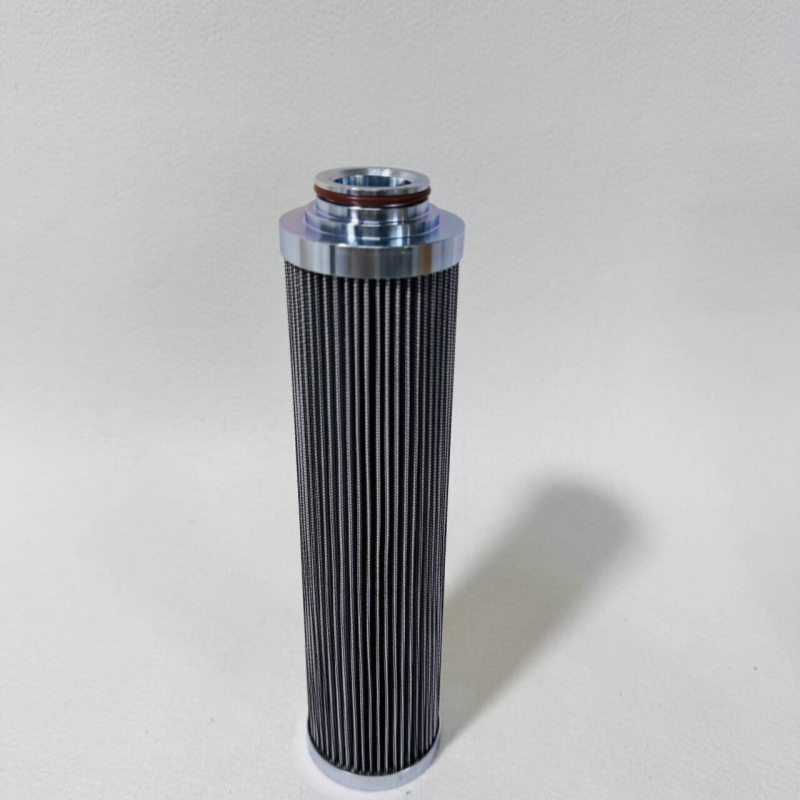

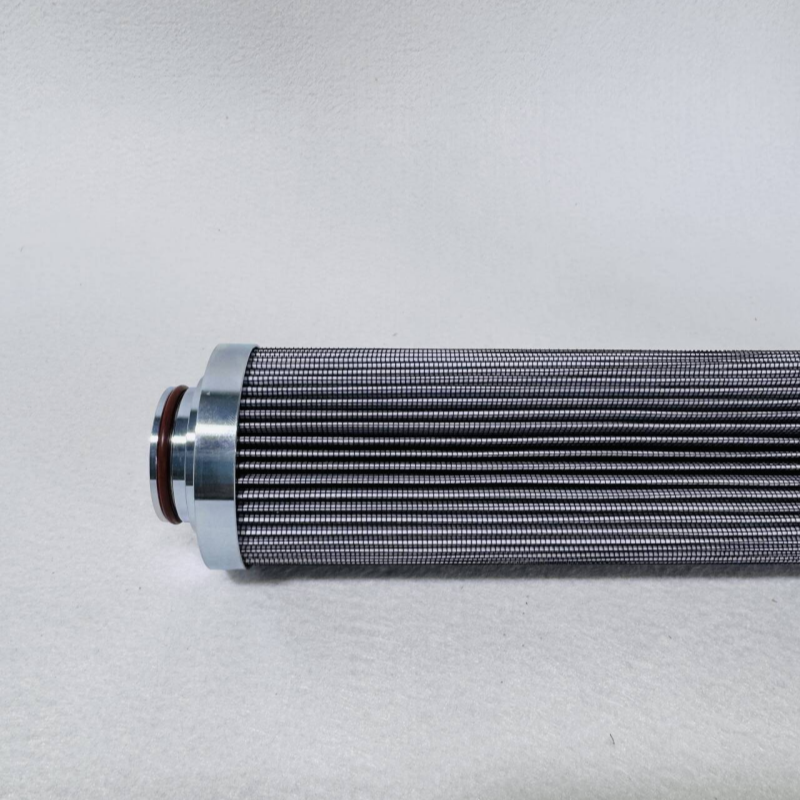

FTC2A10Q Hydraulic Filter Element

- Product Name: FTC2A10Q Hydraulic Oil Filter Element

- Product Type: Return Line Filter Element / Parker Replacement Element

- Applicable Filter Series: FTC Series Tank-Top Mounted Return Line Filters

- Primary Function: To filter out solid particles and colloidal substances from the working medium within hydraulic systems, thereby controlling fluid contamination levels.

Technical Parameters

Parameter Item      Parameter Value/Range

Filter Media Type Glass Fiber, Stainless Steel Mesh

Filtration Precision 5 – 20 μm (Microns)

Operating Pressure 1.6 MPa to 21 MPa (Max)

Operating Temperature -10°C to +100°C (Typical Range)

Working Medium    Hydraulic Oil, Phosphate Ester Hydraulic Fluid, Emulsions, Water-Glycol, etc.

Sealing Material  Fluorocarbon Rubber (Viton), Nitrile Rubber (NBR)

Application Fields

This filter element is widely utilized across various industries, including:

- Metallurgy: Hydraulic systems for rolling mills and continuous casting machines

- Power Generation: Hydraulic and lubrication systems in power plants

- Construction Machinery: Heavy construction equipment, tunnel boring machines (TBMs)

- Petrochemicals: Oil refining and chemical manufacturing processes

- Others: Papermaking, shipbuilding, machine tool manufacturing, textiles, etc.
