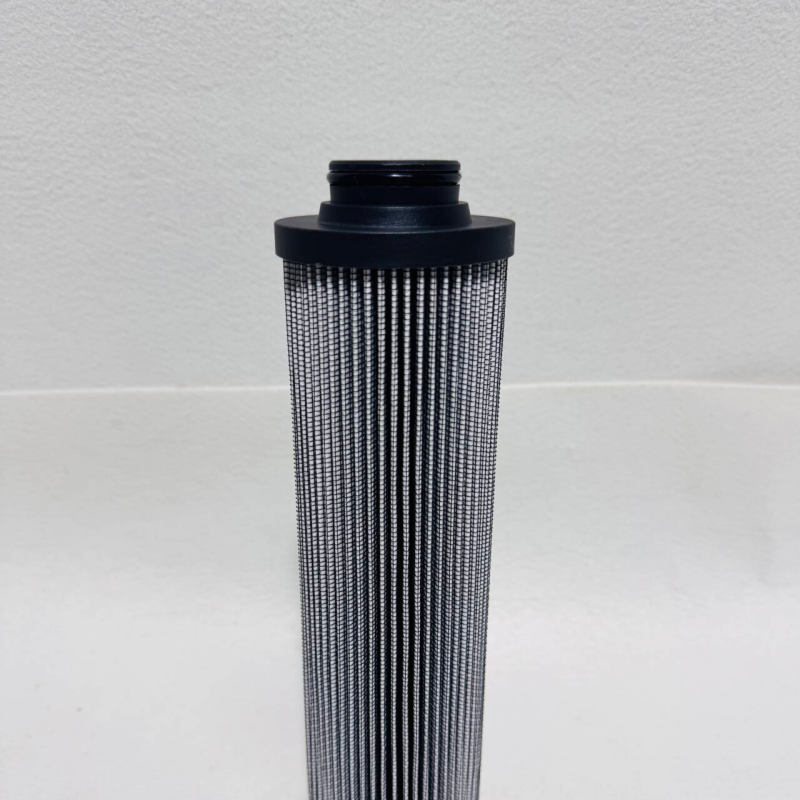

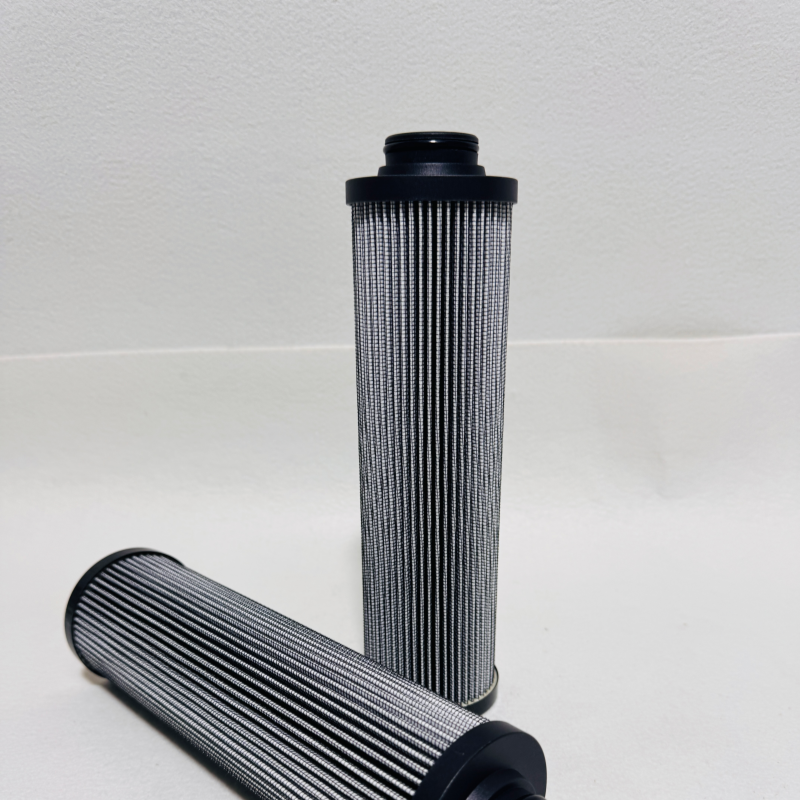

G04268, G04384Q, 06NA660088 Hydraulic Filter Element

Based on the search results, the following is the basic information for these three hydraulic filter elements:

G04268 Hydraulic Filter Element

Product Type  HighPressure Inline Hydraulic Filter Element

Filtration Accuracy  10 µm

Filter Media Type  10Q Microglass (Microglass Fiber) / HighQuality Glass Fiber Media

Operating Pressure (MAX)  21 MPa (approx. 210 bar); Original series can reach up to 414 bar

Operating Temperature  30°C to +110°C

Operating Medium  General hydraulic oil, phosphate ester hydraulic oil, emulsions, waterglycol

Structural Strength  1.0 MPa, 2.0 MPa, 16.0 MPa, 21.0 MPa

Product Length  248 mm

Seals  Nitrile Rubber (NBR)

Applicable Fields  Steel, electric power, metallurgy, shipbuilding, chemical industry, construction machinery, etc.

 G04384Q Hydraulic Filter Element

Product Type  HighPressure Oil Filter Element / Hydraulic Oil Filter Element

Common Applications  Steelworks tilting highpressure oil systems, hydraulic oil systems

Filter Media Type  Glass fiber, filter paper, metal mesh, sintered metal, etc.

Filtration Accuracy  Glass Fiber: 1–70 µm; Metal Mesh: 3–400 µm; Filter Paper: 5–40 µm

Rated Flow Rate  6–9100 L/min

Operating Pressure  ≤450 kg (approx. 45 MPa)

Operating Temperature  30°C to 120°C

Applicable Fields  Power Plants, Steel Mills, Tunnel Boring, Mining, Papermaking, Petroleum, Marine, Chemical, Textile, etc.

 06NA660088 Hydraulic Filter Element

 Item  Information

Product Type  Oil Filter Element / Refrigeration Unit Oil Filter

Primary Application  Hydraulic Oil System Filtration +Carrier Refrigeration Compressor Oil Filtration

Applicable Models  Carrier 06NA Series Compressors, 30GX/30HX/30XW/30XA Series Screw Units, 19XR/19XL Series Centrifugal Chillers, etc.

Filter Media Type  Glass Fiber, Metal Mesh, Filter Paper, Sintered Felt, etc.

Filtration Precision  0.01–500 μm (Customizable); Glass Fiber: 1–70 μm

Max. Working Pressure  420 kg (Approx. 42 MPa)

Working Temperature  30°C to 115°C

Working Medium  Hydraulic Oil, Lubricating Oil, Refrigeration Oil, Gear Oil, Fuel, etc.

Applicable Fields  Steel Mills, Power Plants, Aluminum Plants, Shipbuilding, Chemical Industry, HVAC & Refrigeration, Construction Machinery, etc.

Product Features  The filtration media utilizes imported glass fiber; it is nonreactive with refrigeration oil and refrigerants, and effectively controls the cleanliness of the refrigeration oil.
