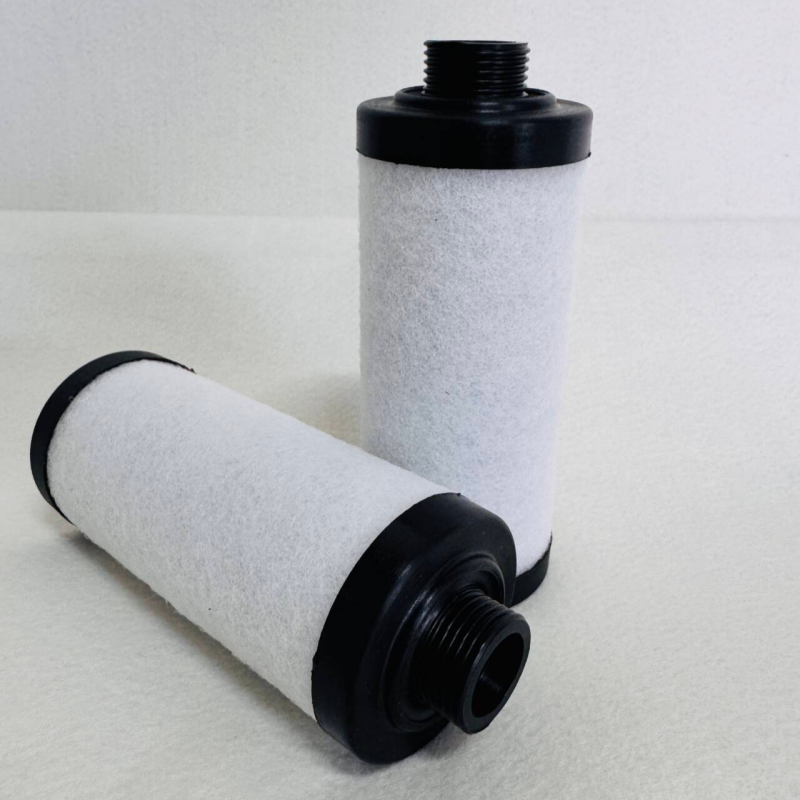

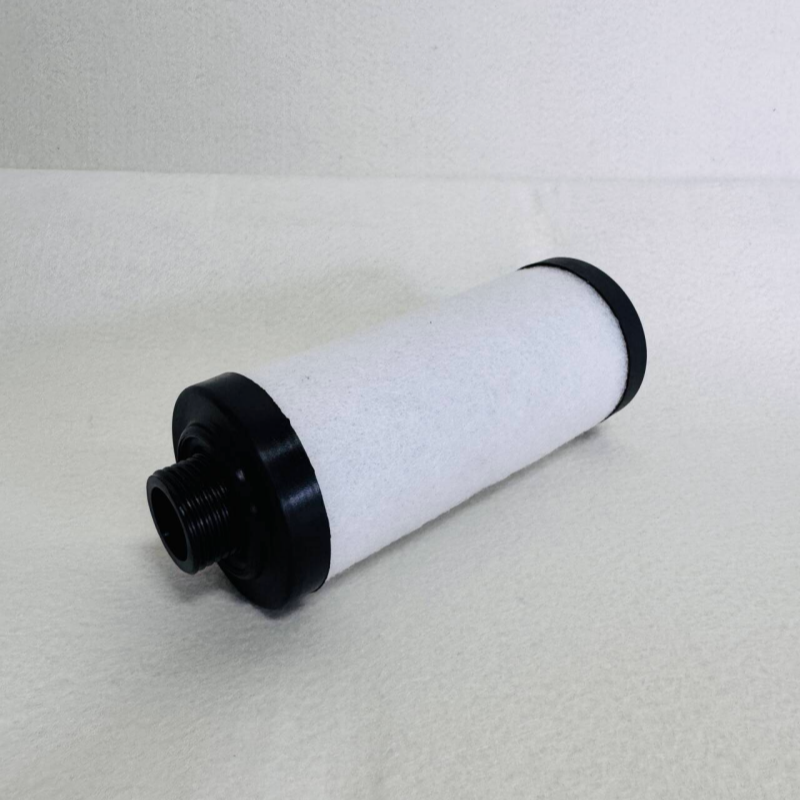

FQ1000, G48CB004960, M4000-KIT-S air filter element

 1. FQ1000 Precision Filter Element



 Basic Positioning



- Model: FQ1000



- Product Type: Post-filter for air compressors/dryers (replaces FIAC brand)



- Core Functions: Four-in-one filtration for oil removal, water removal, dust removal, and deodorization



 Filtration Accuracy  0.01-500 μm (too wide a range)  0.01-5 μm (precision range)



 Operating Temperature  -30~115℃  -30°C to +115℃



 Operating Pressure  420 kg (questionable)  16 bar (1.6 MPa) ← 420 kg is clearly an error



 Filter Media Material  Glass fiber, metal mesh, filter paper, sintered felt, etc.  Primarily glass fiber



 Applicable Media  Compressed air, gas



 Application Areas



- Power Plant: Cooler Air Filter



- Air Compressor System: Screw Air Compressor Post-Precision Filter



- Industrial Gas Purification: Spraying, Blow Molding, Powder Conveying, and other processes



 2. G48CB004960 Precision Filter Element



- Product Type: Compressed Air Filter Element (Compatible with M4000 Series)



- Core Function: Precision filtration in dryers, removing oil mist and solid particles



 Height  70 mm



 Outer Diameter  49/32 mm (approx. 49mm)



 Inner Diameter  23/0 mm (approx. 23mm)



 Weight  0.063 kg



 Connection Type  Threaded connection (Gew. 30mm)



 Related Models

This model is highly compatible with the following codes or the same product:



- M4000-KIT-S



- M4000 SDL52209



- FL417409



- F3-550406



 Application Areas



- Refrigerated Dryers: Post-oil and dust removal



- Compressed Air Systems: 0.6-18 L/min flow range



- Industrial Support: Used with M4000 series filter housings



---



 3. M4000-KIT-S Precision Filter Element/Kit



 Basic Positioning



- Model: M4000-KIT-S



- Product Type: Dryer Precision Filter Element/Kit



- Core Function: Same as G48CB004960, provides precision filtration for dryers



 Technical Parameters



 Parameter Item  Specification Value (Source: fululvxin.com)



 Overall Height  68 mm



 Outer Diameter/Thread  48/Gew.30mm   Inner Diameter  22/0 mm



Weight  0.085 kg



Filtration Accuracy  0.01-5 μm (Precision Grade)



 Relationship with G48CB004960



Highly Similar to G48CB004960:



- Identical dimensions (only a 2mm difference in height, within tolerance)



- Identical outer diameter/thread specifications (48/Gew.30mm)



- Always appears side-by-side in the same product list



- Possible Differences: M4000-KIT-S is a kit (including mounting accessories), G48CB004960 is a single filter element



 Application Areas



- Micro-heat Regenerative Dryer: Precision filter element assembly



- Compressed Air Post-treatment: Used with M4000 series filters



- Industrial Gas Separation: Precision filtration in recovery processes
