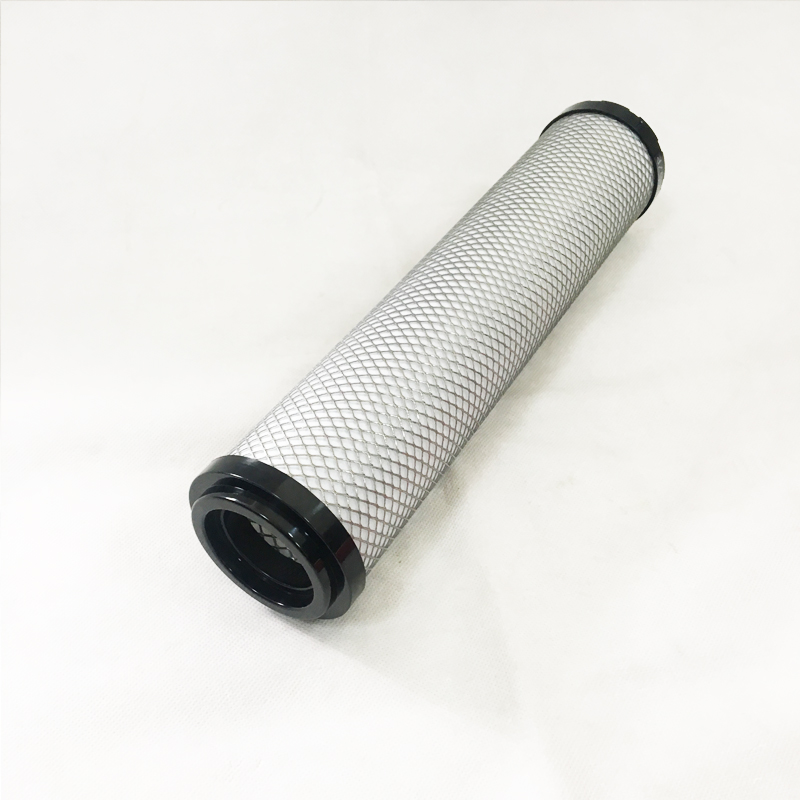

F46KC / F46KF Precision Filter Cartridge (Relatively Complete Information)

- Model: F46KC, F46KF (from the same series; KC/KF may represent differences in interface or sealing type)

- Product Type: Precision filter cartridge for air compressor/dryer pipelines

- Core Function: Removes water vapor, oil mist, oil vapor, hydrocarbon vapor, and solid particulate impurities as small as 0.01μm from compressed air

 Filtration Accuracy  0.01μm-5μm  Not specified  0.01μm-5μm

 Operating Temperature  0~80℃  Maximum 120℃  0~80℃

 Rated Flow Rate  0.6-18 L/min  2-2600 L/min  L/min

 Filter Media Material  Glass fiber, sponge, activated carbon, polypropylene, etc. are optional  Not specified  Glass Fiber Filter Media (Preferred for high-precision oil removal)

Sealing Material  Typically NBR or FKM  Not specified  FKM Fluororubber (Oil and high temperature resistant)

Connection Type  Pipeline installation (specific interface needs confirmation)  Not specified  Threaded or flanged connection

 Testing Standards

Complies with 8 ISO international standards to ensure quality:

- ISO 2941 (Rupture resistance)

- ISO 2942 (Structural integrity)

- ISO 2943 (Material compatibility)

- ISO 3723 (End load)

- ISO 3724 (Fatigue characteristics)

- ISO 3968 (Differential pressure flow characteristics)

- ISO 4572 (Multi-pass method)

- ISO 16889 (Filtration ratio/dirt holding capacity)

 Application Areas

Widely used in the following industries:

- Petrochemical: Refining, chemical product separation and recovery, particulate removal in oilfield injection water

- Textiles: Polyester melt drawing purification, air compressor protective filtration

Thermal/Nuclear Power: Steam turbine and boiler lubrication system purification

Shipbuilding: Painting and welding gas purification, air separation for O₂/CO₂

Glass: Clean air source for blow molding and float glass manufacturing

Electronics & Precision: Clean air for painting, assembly, and electroplating

General Industry: Air compressors, dryers, and engineering vehicle power systems
