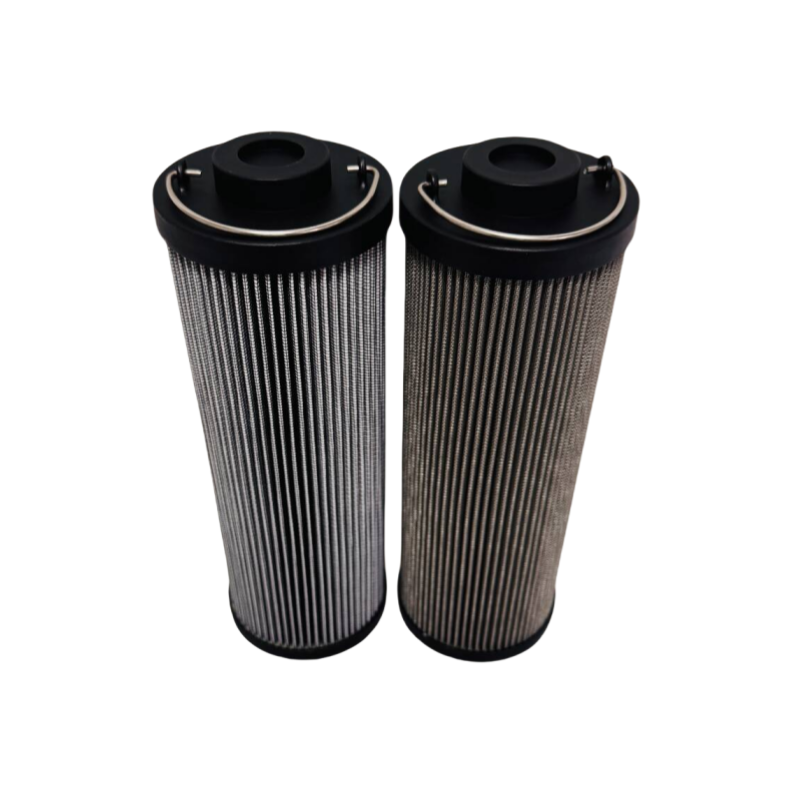

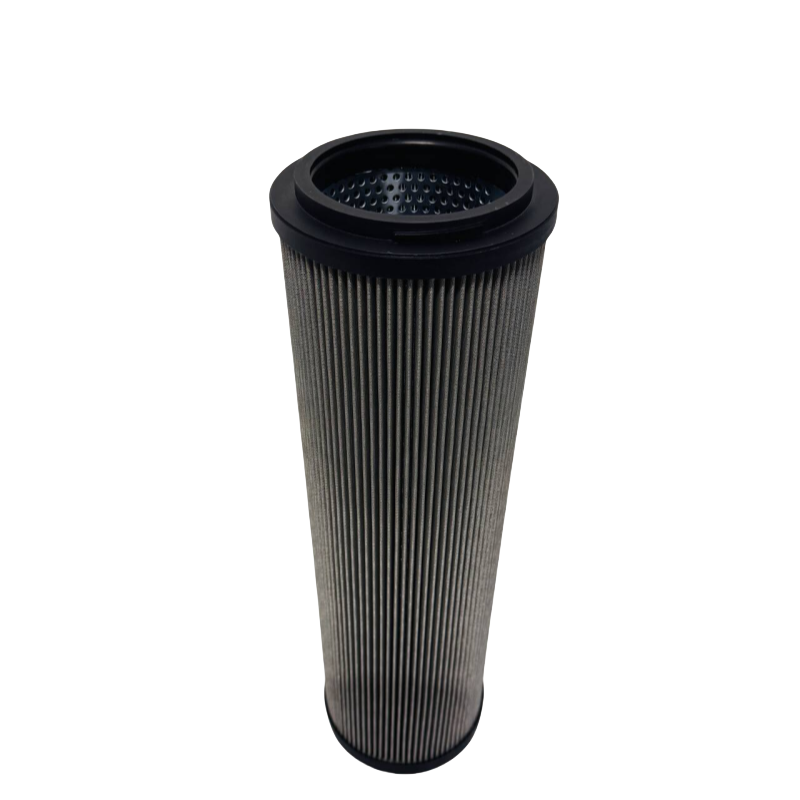

EPF 5105QIHBPH242, ELT 944514Q Hydraulic Filter Element

EPF 5105QIHBPH242 and ELT 944514Q are, in fact, two different designations for the exact same hydraulic filter element. This element serves as a replacement for high-pressure filter elements from the Parker brand; its core parameters and application details are outlined below.

 Product Model  EPF 5105QIHBPH242 / ELT 944514Q

 Brand/Series  Compatible with Parker EPF Series High-Pressure Line Filters

 Primary Function  Hydraulic oil system filtration; continuously removes solid particles and colloidal contaminants from the fluid.

 Common Applications  Quenching machine clamping valve stations, steel mills, power plants, construction machinery, etc.

Detailed Technical Specifications

   Filter Media & Rating: Utilizes 05QIH high-strength micro-glass fiber, providing a filtration rating of 5 µm.

   Pressure Ratings: Maximum allowable differential pressure reaches 210 bar (approx. 21 MPa), indicating exceptional structural strength. While typical operating pressure generally does not exceed 450 kg/cm², the filter element itself is capable of withstanding a differential pressure of up to 21 MPa.

   Flow Rate & Temperature: Maximum allowable flow rate is 700 L/min. The standard operating temperature range is -30°C to +120°C.

   Seal Material: Nitrile Rubber (NBR), offering excellent oil resistance.

 Testing Standards

This filter element typically complies with the following international standards:

   ISO 2941 (Collapse/Burst Resistance)

   ISO 2942 (Structural Integrity)

   ISO 2943 (Material Compatibility)

   ISO 3724 (Flow Fatigue Characteristics)

   ISO 16889 (Multi-Pass Filtration Performance)
