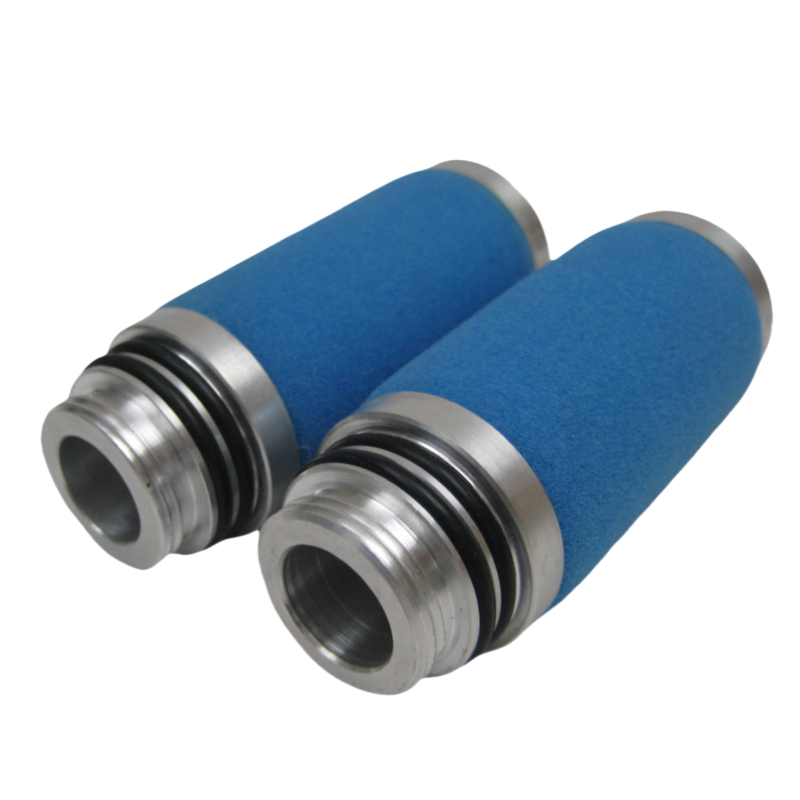

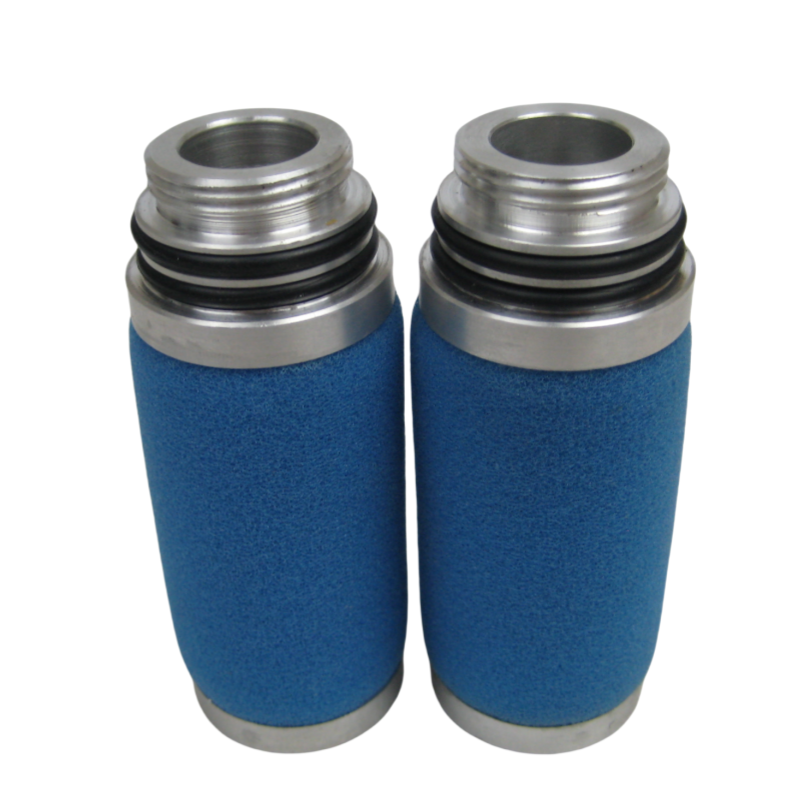

Models: ELT110, ELT120 (Coalescing Separation, Removal of Droplets + Solid Particles)

 I. ELT110 Core Parameters

 Filtration Accuracy: 0.3 μm (Absolute), Solid/Liquid Particle Efficiency 99.9%

 Filter Media: Multilayer borosilicate glass fiber (folded coalescing layer)

 Structure: Carbon steel end caps, stainless steel inner and outer skeletons

 Dimensions: φ110 × 500 mm (Standard Specification)

 Operating Pressure: ≤100 bar (10 MPa)

 Operating Temperature: 20℃ ~ +110℃ (Shortterm up to 120℃)

 Initial Pressure Difference: ≤100 mbar (0.01 MPa)

 Tolerant Pressure Difference: ≤3.2 MPa (Anticollapse)

 Seal: Nitrile rubber (NBR), optional fluororubber (FKM)

 Applications: Water removal, oil mist removal, and solid particle removal from natural gas/associated gas; coalescing and dehydration of jet fuel/diesel

 II. ELT120 Core Parameters

 Filtration Accuracy: 0.3 μm (absolute), solid/liquid particle efficiency 99.9%

 Filter Media: Multilayer borosilicate glass fiber (deeply pleated)

 Structure: All stainless steel (end caps/inner and outer skeletons), hightemperature epoxy seal

 Dimensions: φ110 × 700 mm (high flow extended type)

 Operating Pressure: ≤100 bar (10 MPa)

 Operating Temperature: 50℃ ~ +150℃ (preferred for hightemperature conditions)

 Initial Pressure Difference: ≤100 mbar (0.01 MPa)

 Pressure Differential Withstand: ≤2.0 MPa (Anticollapse)

 Sealing: Fluororubber (FKM/Viton), suitable for hightemperature/corrosive environments

 Applications: Deep liquid removal from highpressure natural gas, coalbed methane, and liquefied petroleum gas (LPG); oil mist/water removal from industrial gases
