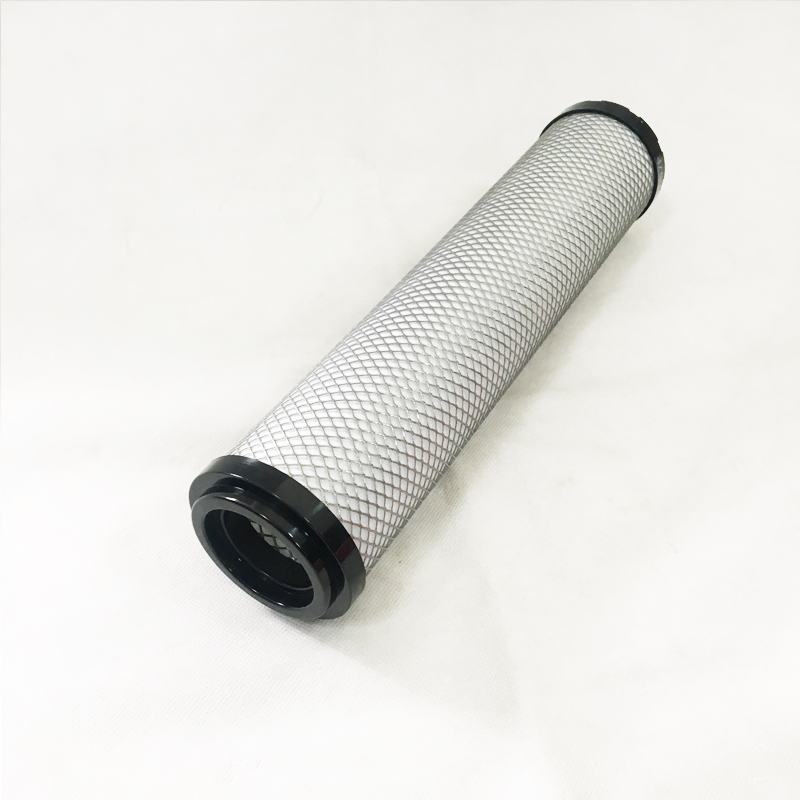

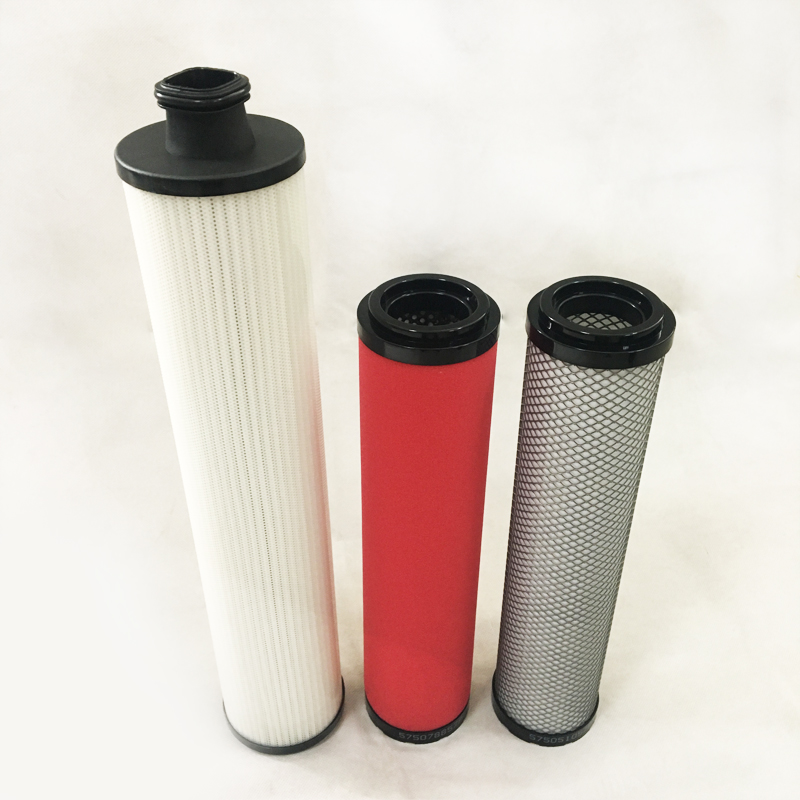

F46KB / F46KE / F46KD / F46KA / F46KBE (KAESER Precision Compressed Air Filter Elements, Germany)

Series: F46 series, rated flow rate 4.6 m³/min (162 cfm), compatible with KAESER F46 filter housings.

General Parameters:

- Maximum Operating Pressure: 16 bar (232 psi)

- Maximum Operating Temperature: 66℃

- Interface: 1.5" NPTF

- Dimensions: φ165×410 mm; Weight approx. 5 kg

- Filter Media: Borosilicate glass fiber (deeply pleated) + hydrophobic layer

 1. F46KD (KD grade, main pipeline dust removal)

- Fitness: 5 μm (solid particles)

- Residual Oil Content: ≤ 10 ppm (dust removal only)

- Function: Pre-filter, removes large particles/rust/liquid water, protects downstream filter elements

- Initial Pressure Drop: ≤ 0.05 MPa

 2. F46KA (KA grade, coalescing, water and oil removal)

- Fitness: 1 μm (particles + oil mist)

- Residual Oil Content: ≤ 1 ppm

- Function: Main pipeline fine filtration, removes water and oil mist, protects desiccant/post-stage precision filter element

- Initial pressure difference: ≤ 0.06 MPa

 3. F46KB (KB grade, high-efficiency oil removal)

- Accuracy: 0.01 μm (oil mist + microparticles)

- Residual oil content: ≤ 0.01 ppm (mg/m³)

- Function: Removes oil mist and trace oil vapor, suitable for spraying/pneumatic instruments/general industrial high-purity air

- Initial pressure difference: ≤ 0.07 MPa

 4. F46KE (KE grade, ultra-fine oil removal)

- Accuracy: 0.001 μm (ultra-fine oil mist)

- Residual oil content: ≤ 0.001 ppm (oil-free grade, ISO 8573-1 Class 0)

- Functions: High-purity gas terminal, food/pharmaceutical/electronics/laser cutting, oil vapor removal + ultra-fine oil mist

- Initial pressure difference: ≤ 0.08 MPa

 5. F46KBE (KBE grade, oil removal + activated carbon deodorization)

- Accuracy: 0.01 μm (oil mist) + activated carbon layer (oil vapor/odor removal)

- Residual oil content: ≤ 0.003 ppm, odorless

- Functions: Oil removal + deodorization + oil vapor removal, food and beverage/breathing gas/aseptic process

- Filter media: Glass fiber coalescing layer + high iodine value activated carbon composite

- Initial pressure difference: ≤ 0.09 MPa
