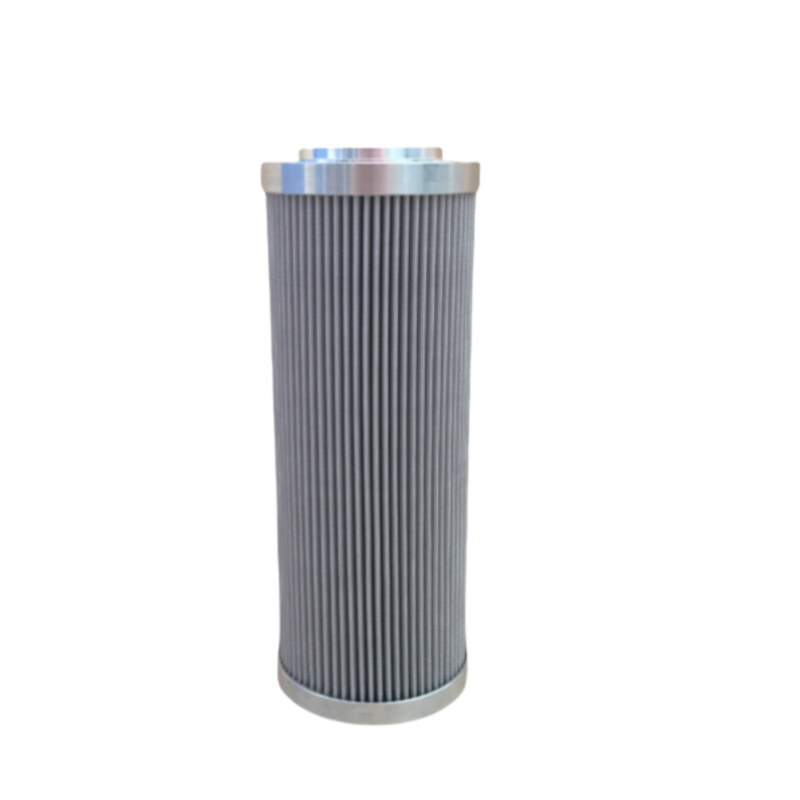

DVD2460F20B high-pressure oil filter element

The following is the basic information about DVD2460F20B high-pressure oil filter:

 Basic information

- Model: DVD2460F20B

- Purpose: Mainly used for filtering the pressure pipeline of the hydraulic system, suitable for high-pressure hydraulic oil filtration.

 Technical parameters

- Filter accuracy: 20 microns.

- Working pressure: Up to 450 kg.

- Working temperature: -30℃ to 120℃.

- Flow direction: outside to inside.

- Sealing material: Viton (fluororubber).

- Filter material: Glass fiber.

- End cover material: Stainless steel or carbon steel, optional galvanized or nickel-plated.

 Performance characteristics

- High-efficiency filtration: Using high-quality glass fiber filter material, high filtration efficiency and strong dirt holding capacity.

- High-pressure resistance: Designed for high-pressure hydraulic systems to ensure stable operation under high pressure.

- Corrosion-resistant: End caps and pipes are made of stainless steel or carbon steel, and the surface treatment is corrosion-resistant.

- Low pressure drop: Optimized design reduces the pressure drop during system operation.

- Bypass valve design: When the filter element is blocked, the bypass valve automatically opens to prevent the system from being cut off.

 Application areas

- Hydraulic system: Widely used in rolling mills, continuous casting machines, shield machines, papermaking machinery, ship hydraulic systems, etc.

- Industrial equipment: Applicable to industries such as petrochemicals, power stations, papermaking, ships, and engineering machinery.
