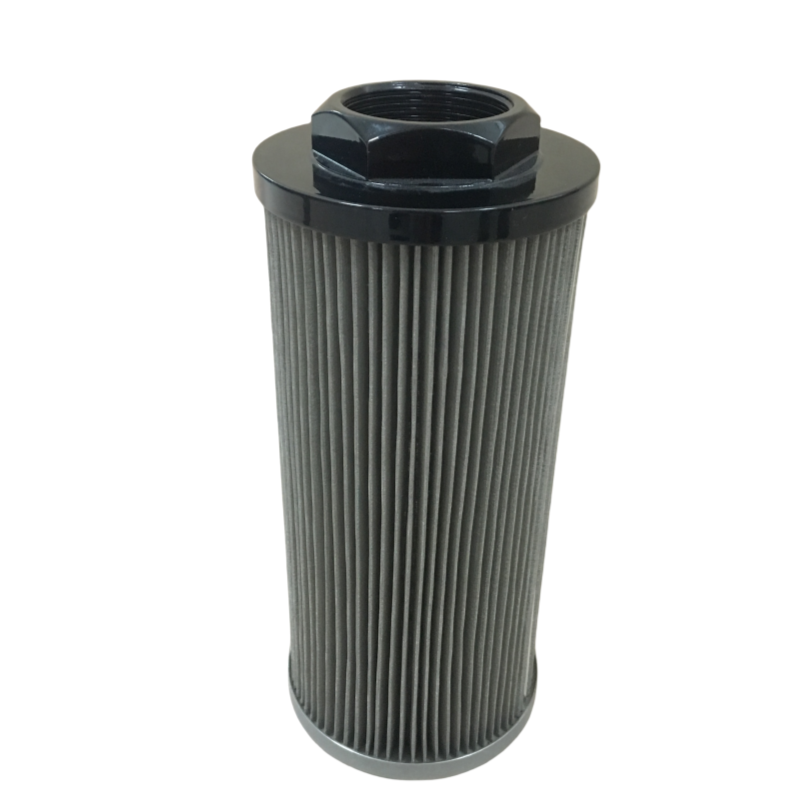

DOF-10 SH60468 oil return filter element

The following is the basic information about DOF-10 SH60468 return oil filter:

 Basic information

- Model: DOF-10

- Alternative model: SH60468

- Purpose: Mainly used for filtering the return oil circuit of the hydraulic system to remove impurities and pollutants in the oil.

 Technical parameters

- Filtration accuracy: 1-100μm.

- Working pressure: Up to 21MPa.

- Working temperature: -30℃ to 110℃.

- Rated flow: 400L/min.

- Filter material: Glass fiber, stainless steel metal mesh, filter paper, etc.

- Sealing material: Nitrile rubber or fluororubber.

- Connection method: Threaded connection, oil port size is M22-M48.

 Performance characteristics

- High-efficiency filtration: Using high-quality filter material, high filtration efficiency and strong dirt holding capacity.

- Low pressure drop design: Optimize the structure to reduce the pressure drop during system operation.

- High structural strength: Use high-strength center tube to improve the pressure resistance of the filter element.

- Long service life: Optimize the filter material and process to extend the service life of the filter element.

- Multiple filter materials available: Different filter materials can be selected according to different working conditions and media.

 Application areas

- Hydraulic system: Used for return oil filtration in hydraulic systems to protect hydraulic components.

- Industrial equipment: Applicable to construction machinery, mining machinery, papermaking machinery, ship hydraulic systems, etc.

- Other industries: Can be used in chemical, petroleum, food, mineral processing, water treatment and other industries.
