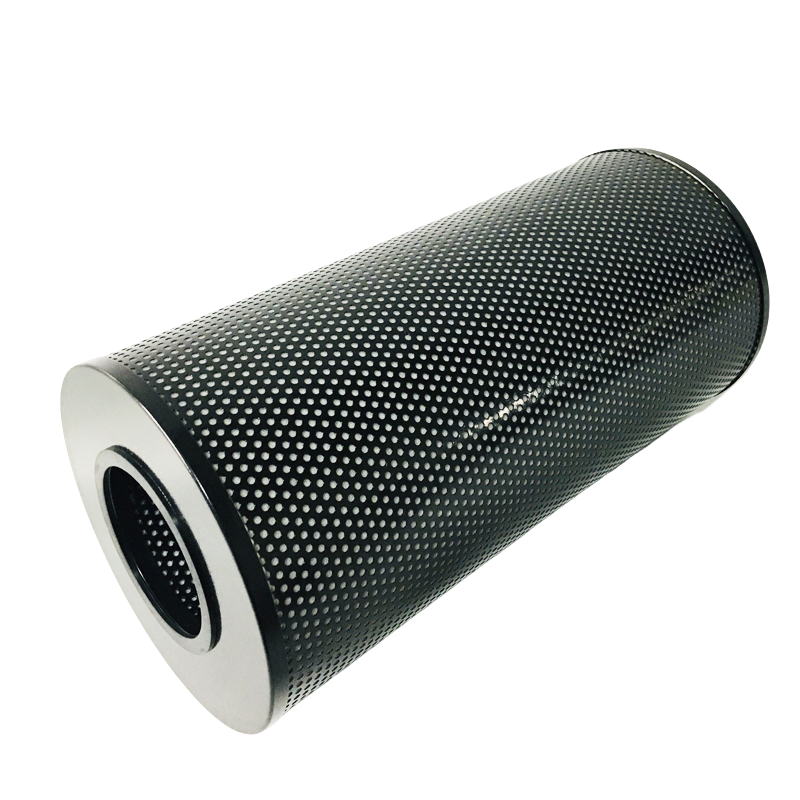

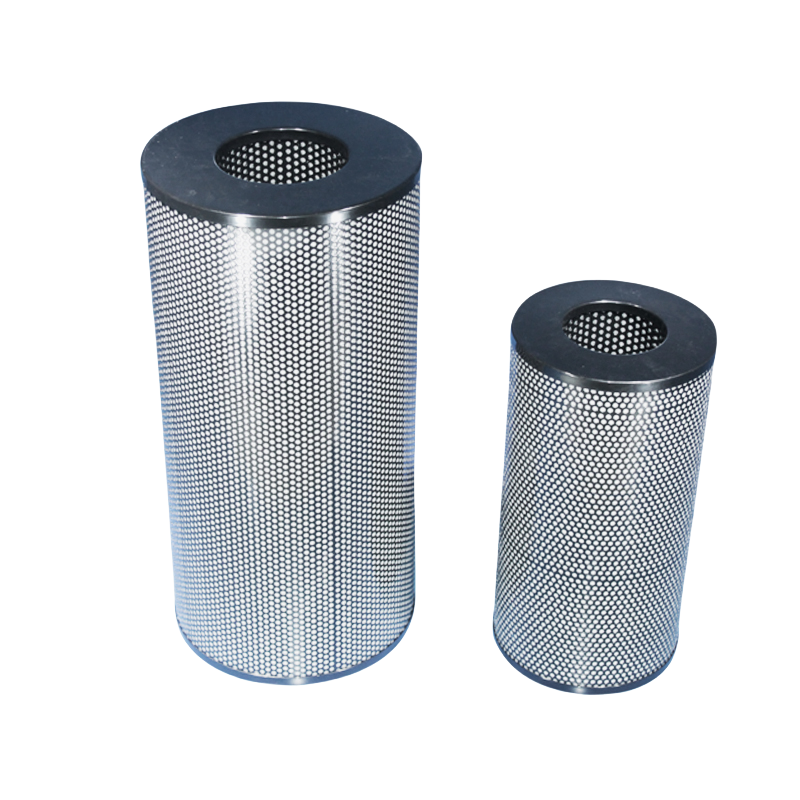

D6360541 hydraulic oil filter element

The following is the basic information of D6360541 hydraulic oil filter:

 Basic parameters

- Filtration accuracy: 3-30μm (special accuracy can be customized).

- Working pressure: up to 16bar.

- Working temperature: -30℃~120℃.

- Rated flow: 2-2600L/min.

- Pressure difference alarm: 1bar, 3bar, 3.5bar.

- Filter material: glass fiber, stainless steel.

- Sealing material: nitrile rubber, fluororubber.

 Technical features

- High filtration efficiency: can effectively remove solid particles and colloidal substances in hydraulic oil to ensure oil cleanliness.

- High temperature and corrosion resistance: suitable for a variety of working media, including hydraulic oil, lubricating oil, cooling oil, etc.

- Bypass valve design: when the filter element is blocked, the bypass valve automatically opens to prevent the system pressure from being too high.

- Pressure differential alarm function: Some filter elements are equipped with a pressure differential alarm device to remind users to replace them in time.

- High structural strength: The filter element has good axial stiffness and flattening stiffness, and can work stably under high pressure.

 Application areas

- Hydraulic system: Used for filtering the hydraulic system of rolling mills and continuous casting machines.

- Petrochemical industry: Liquid purification in oil refining and chemical production processes.

- Mechanical processing: Filtration of lubrication systems such as papermaking machinery, mining machinery, and injection molding machines.

- Ships and railways: Filtration of lubricating oil for ship hydraulic systems and railway internal combustion engines.

- Others: Widely used in steel, electric power, metallurgy, shipbuilding, aviation, papermaking, chemicals, machine tools, engineering machinery, construction machinery and other fields.

 Testing standards

- ISO 2941: Test method for filter element rupture resistance.

- ISO 2942: Test method for structural integrity of hydraulic filter elements.

- ISO 2943: Test method for compatibility of hydraulic filter element materials with liquids.

- ISO 3723: End-to-end compliance test for filter elements.

- ISO 3724: Determination of fatigue characteristics of filter elements.

- ISO 3968: Differential pressure flow characteristics of filter elements.

- ISO 4572: Multiple pass method for determination of filtration characteristics of filter elements.
