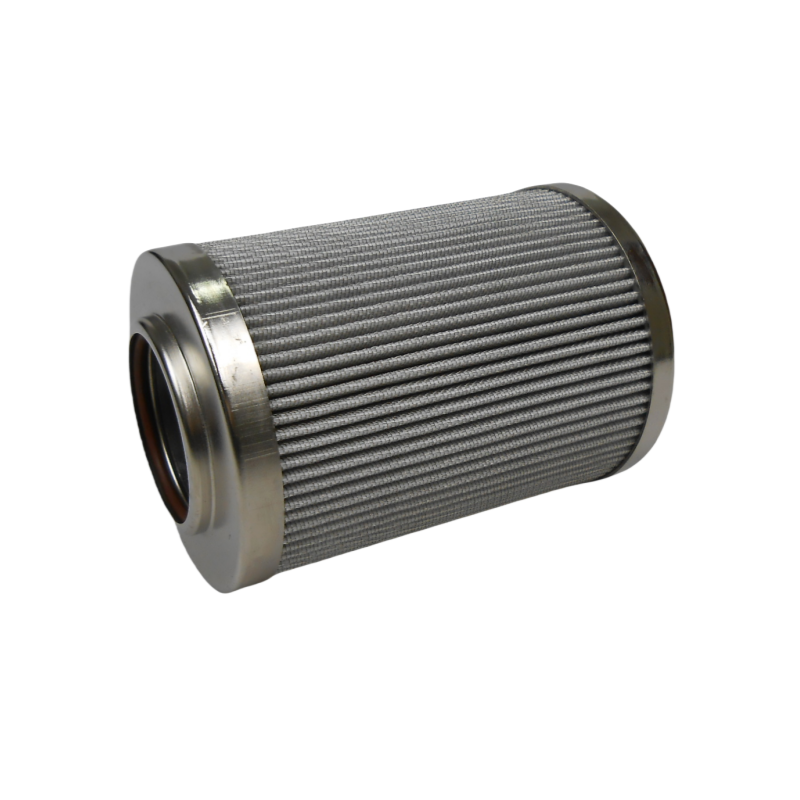

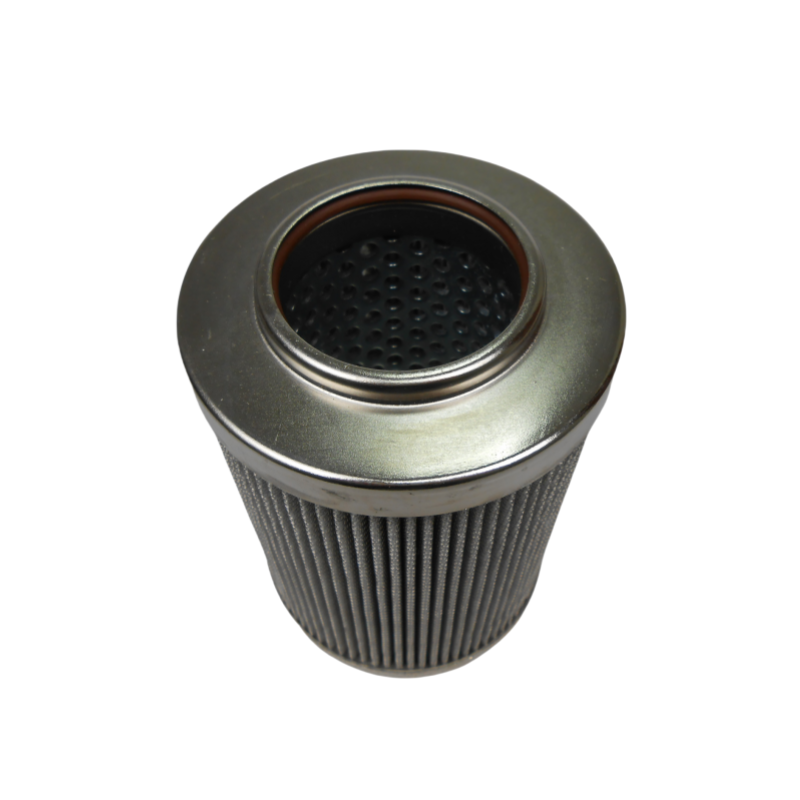

A04-500SW, FS08-500SW-F hydraulic oil filter element

The following is the basic information of A04-500SW and FS08-500SW-F hydraulic oil filter:

 A04-500SW hydraulic oil filter

- Purpose: Used in hydraulic oil systems to continuously filter impurities, moisture and other pollutants in the oil to ensure the normal operation of the system.

- Technical parameters:

- Filtration accuracy: 1-70μm (glass fiber filter material).

- Working pressure: Maximum 3.5MPa.

- Working temperature: -30℃~120℃.

- Rated flow: 2-2600L/min.

- Filter material: Glass fiber.

- Testing standards:

- ISO 2941: Test method for filter element rupture resistance.

- ISO 2942: Test method for structural integrity of hydraulic filter elements.

- ISO 2943: Test method for compatibility of hydraulic filter element materials with liquids.

- ISO 3723: End-to-end compliance test for filter elements.

- ISO 3724: Determination of filter element fatigue characteristics.

- ISO 3968: Pressure differential flow characteristics of filter elements.

- ISO 4572: Multiple pass method for determining filter element filtration characteristics.

- ISO 16889: Filtration ratio/pollution holding capacity.

- Application areas:

- Hydraulic system: used for filtration of hydraulic systems of rolling mills and continuous casting machines.

- Petrochemical industry: Liquid purification in oil refining and chemical production processes.

- Mechanical processing: Lubrication systems of papermaking machinery, mining machinery, and injection molding machines.

- Ships, railways, and automobiles: Hydraulic oil filtration.

- Thermal power and nuclear power: Purification of lubrication systems and speed control system oils.

 FS08-500SW-F hydraulic oil filter element

- Purpose: Used in hydraulic oil systems to continuously filter impurities, moisture and other pollutants in the oil to ensure the normal operation of the system.

- Technical parameters:

- Filtration accuracy: 1-70μm (glass fiber filter material).

- Working pressure: up to 3.5MPa.

- Working temperature: -30℃~120℃.

- Rated flow: 2-2600L/min.

- Filter material: glass fiber.

- Testing standard:

- ISO 2941: Test method for filter element rupture resistance.

- ISO 2942: Test method for structural integrity of hydraulic filter element.

- ISO 2943: Test method for compatibility of hydraulic filter element material with liquid.

- ISO 3723: End-to-end compliance test of filter element.

- ISO 3724: Determination of fatigue characteristics of filter element.

- ISO 3968: Pressure differential flow characteristics of filter element.

- ISO 4572: Multiple pass method for determining filtration characteristics of filter element.

- ISO 16889: Filtration ratio/pollution holding capacity.

- Application areas:

- Hydraulic system: used for control pump of hydraulic pump station of shield machine.

- Petrochemical industry: liquid purification in oil refining and chemical production processes.

- Mechanical processing: lubrication systems of papermaking machinery, mining machinery, and injection molding machines.

- Ships, railways, and automobiles: hydraulic oil filtration.

- Thermal power and nuclear power: purification of lubrication systems and speed control system oils.
