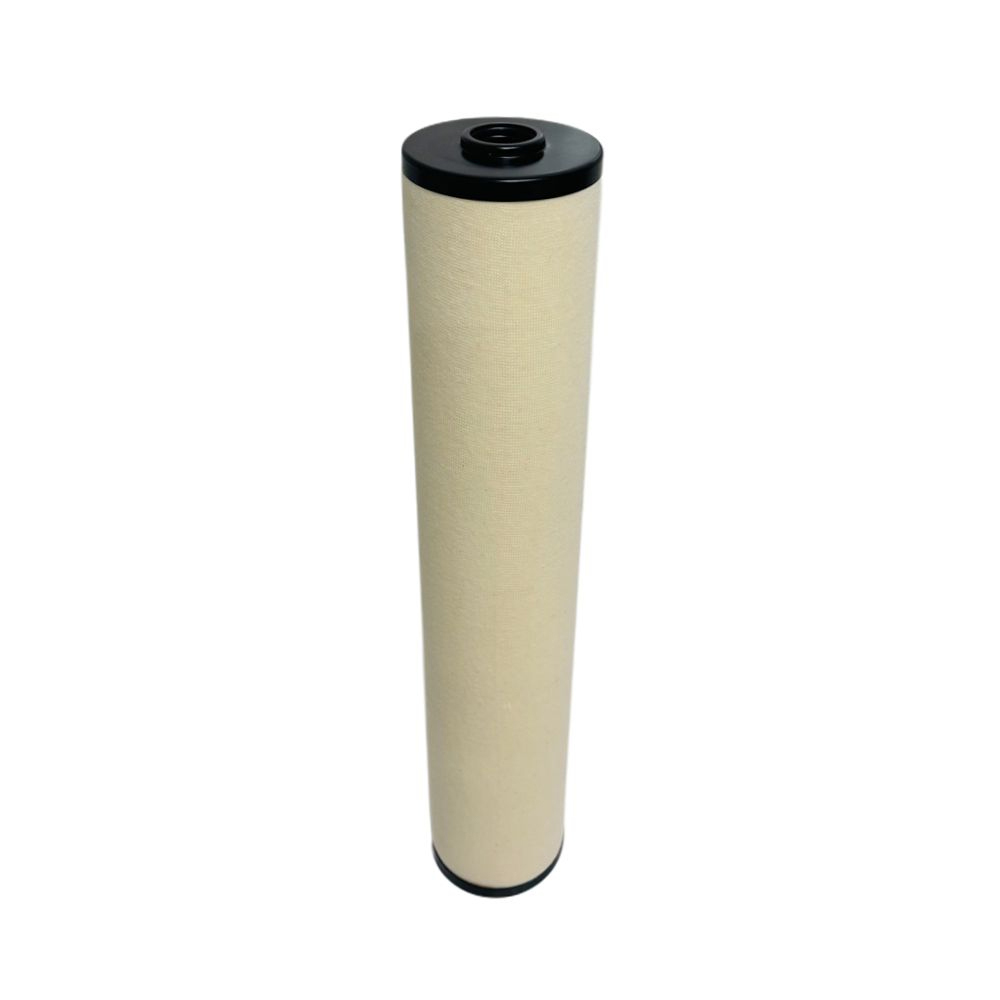

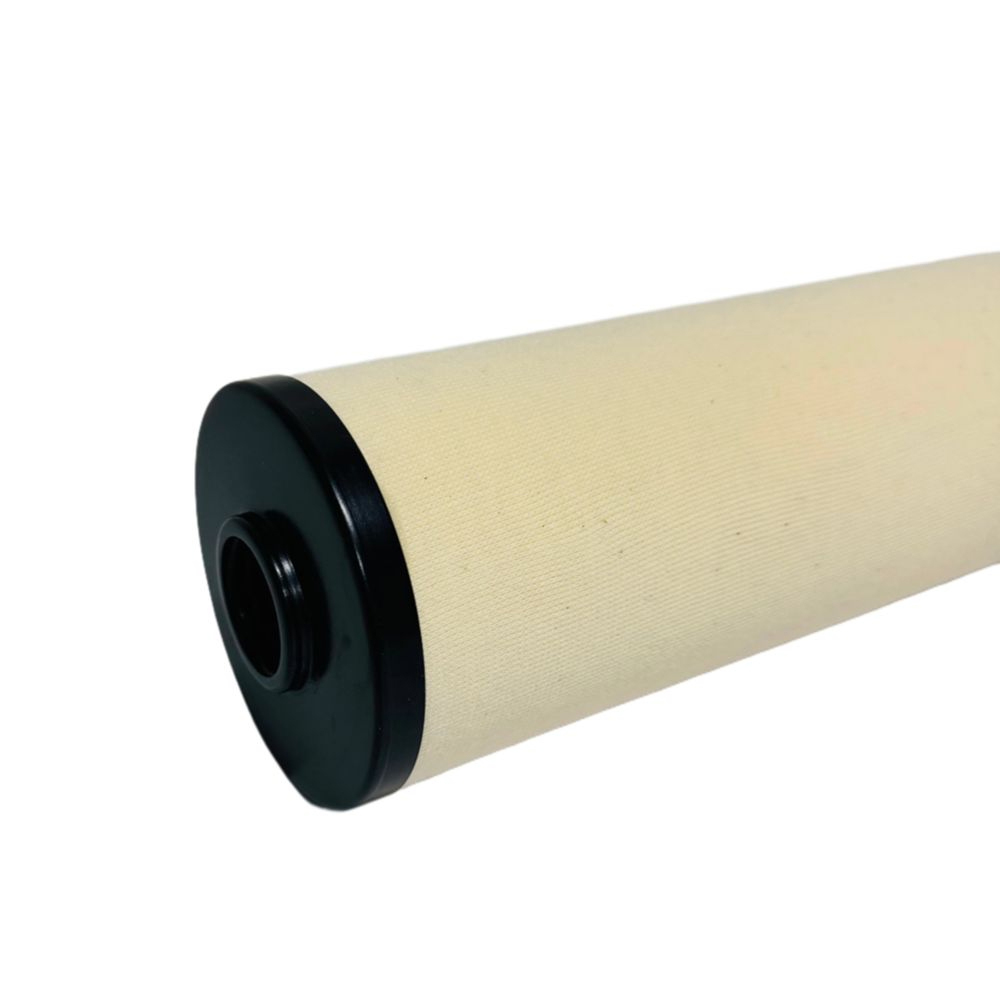

CDS508 coalescing filter cartridge

The CDS508 coalescing filter element is a high-efficiency separation element for aviation fuel filtration. The following is its basic information:

 Product Application

The CDS508 coalescing filter element is mainly used for aviation ground refueling operations and can efficiently separate moisture and particulate impurities in aviation fuel.

 Structure and Material

-Filter Material: It usually adopts a multi-layer composite structure, and the core part is a specially treated glass fiber.

-Support Structure: There is a high-strength support skeleton inside, which is usually made of stainless steel and other materials to ensure that the filter element remains stable under high pressure.

-Outer Layer Protection: The outer layer has a protective net to prevent mechanical damage.

 Performance Characteristics

-Filter Accuracy: The filter accuracy range is usually 1-100 microns.

-Coalescing Efficiency: It can coalesce tiny water droplets into larger water droplets and separate them by gravity sedimentation.

-Pressure Difference: The initial pressure difference is less than 0.05MPa, and the maximum working pressure difference is 0.1MPa.

-Temperature resistance: The temperature resistance range is generally -40℃ to 80℃.

 Application areas

CDS508 coalescing filter element is widely used in the purification of aviation fuel to ensure the cleanliness of aviation fuel and flight safety.
