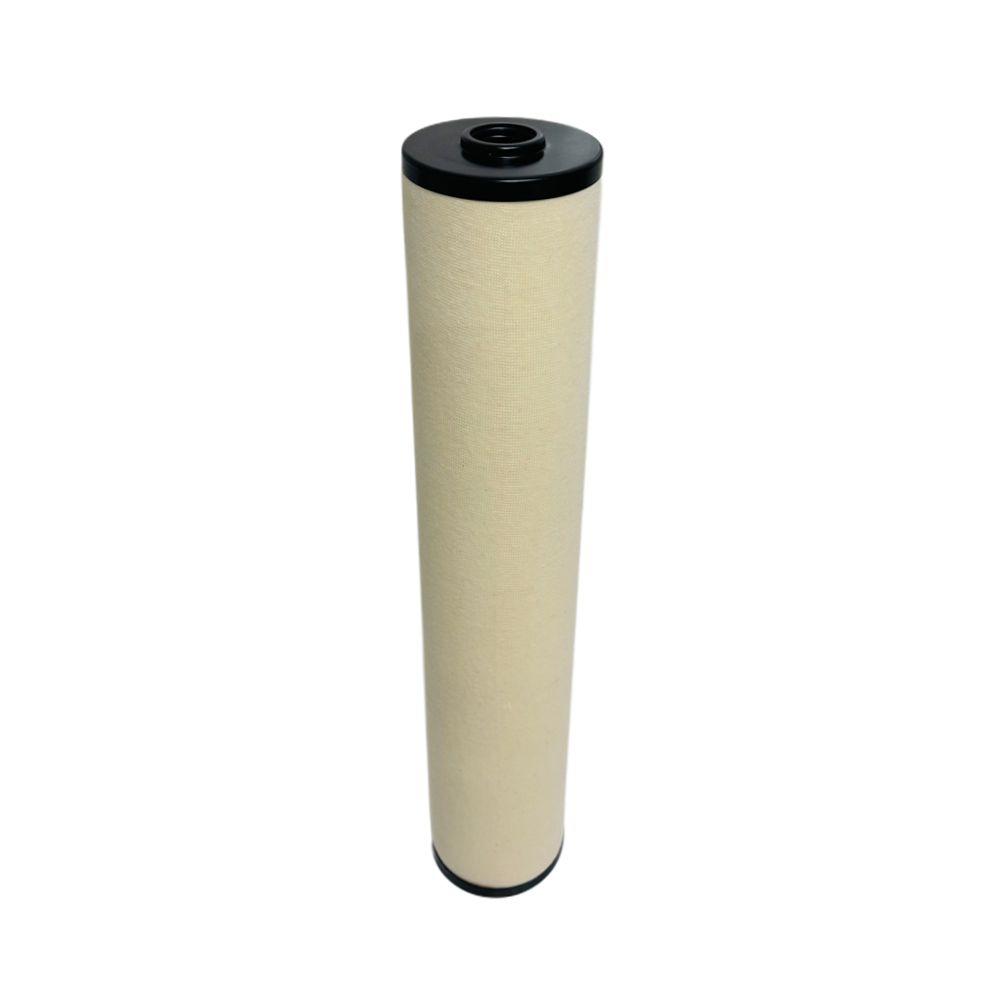

The CDS508 coalescing filter element is a high-efficiency separation element for aviation fuel filtration. The following is its basic information:
Product Application
The CDS508 coalescing filter element is mainly used for aviation ground refueling operations and can efficiently separate moisture and particulate impurities in aviation fuel.
Structure and Material
-Filter Material: It usually adopts a multi-layer composite structure, and the core part is a specially treated glass fiber.
-Support Structure: There is a high-strength support skeleton inside, which is usually made of stainless steel and other materials to ensure that the filter element remains stable under high pressure.
-Outer Layer Protection: The outer layer has a protective net to prevent mechanical damage.
Performance Characteristics
-Filter Accuracy: The filter accuracy range is usually 1-100 microns.
-Coalescing Efficiency: It can coalesce tiny water droplets into larger water droplets and separate them by gravity sedimentation.
-Pressure Difference: The initial pressure difference is less than 0.05MPa, and the maximum working pressure difference is 0.1MPa.
-Temperature resistance: The temperature resistance range is generally -40℃ to 80℃.
Application areas
CDS508 coalescing filter element is widely used in the purification of aviation fuel to ensure the cleanliness of aviation fuel and flight safety.
