Basic Product Information

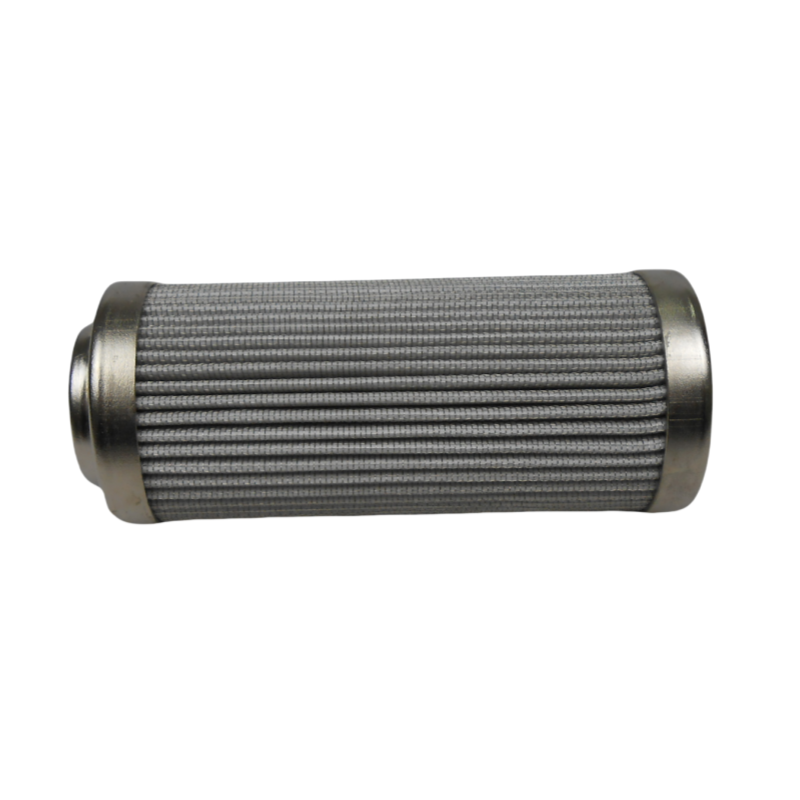

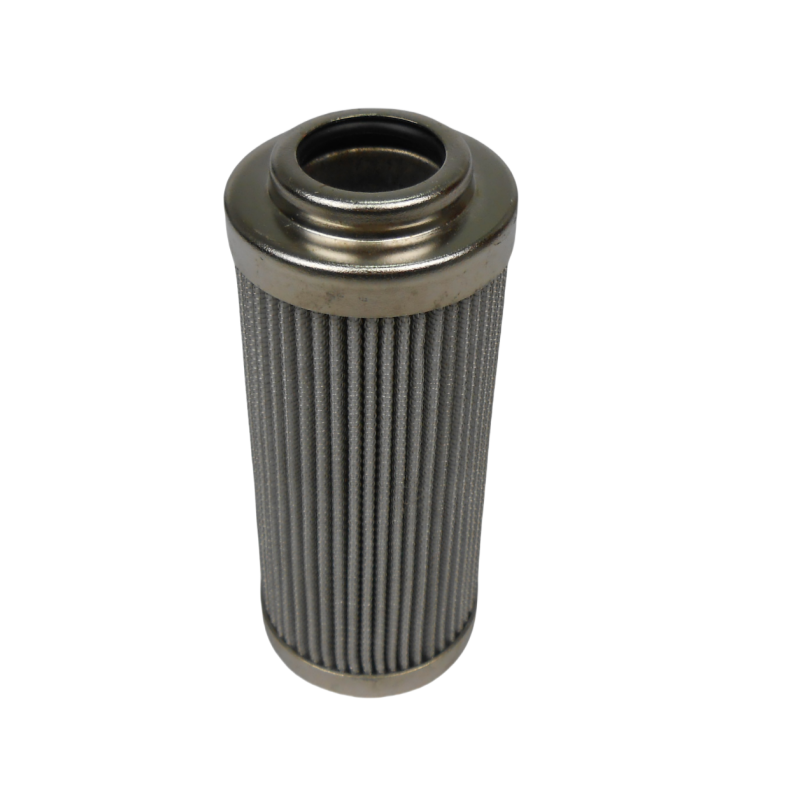

 Product Type  Hydraulic Oil Filter Element / Hydraulic Station Filter Element

 Primary Function  Filters out solid particles and colloidal contaminants from hydraulic systems; controls fluid cleanliness levels.

 Common Applications  Steel mills, power plants, tunnel boring machines (TBMs), mining, paper manufacturing, petroleum, chemical processing, construction machinery, etc.

Technical Parameters

 Parameter Item  Parameter Value / Range

 Filter Media Type  Glass fiber, 304 stainless steel mesh, imported HV glass fiber, oil filter paper, etc.

 Filtration Precision  1–100 μm (Filtration Ratio X ≥ 100); Glass Fiber: 1–70 μm

 Operating Pressure  21 bar ~ 210 bar (approx. 2.1–21 MPa)

 Operating Temperature  -30°C ~ +100°C

 Operating Medium  Hydraulic oil, lubricating oil, fuel, etc.

 Structural Strength  1.0 MPa, 2.0 MPa, 16.0 MPa, 21.0 MPa

 End Cap Material  Zinc-plated carbon steel, stainless steel, nylon plastic, machined aluminum

 Support Core Material  Zinc-plated perforated carbon steel, perforated stainless steel

 Testing Standards

This filter element typically complies with the following international standards:

 Standard No.  Content

 ISO 2941  Filter element collapse/burst resistance test method

 ISO 2942  Filter element structural integrity test method

 ISO 2943  Filter element material/fluid compatibility test method

 ISO 3723  Filter element end-load test

 ISO 3724  Filter element fatigue characteristics determination

 ISO 3968  Filter element pressure drop/flow characteristics

 ISO 4572 / ISO 16889  Determination of Filtration Characteristics (Multi-Pass Method)
