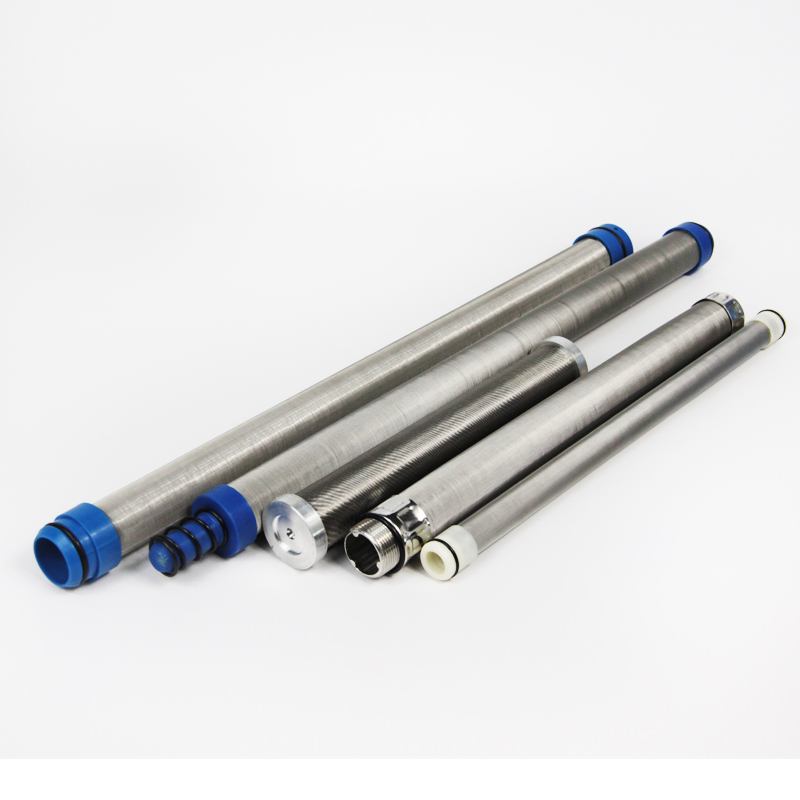

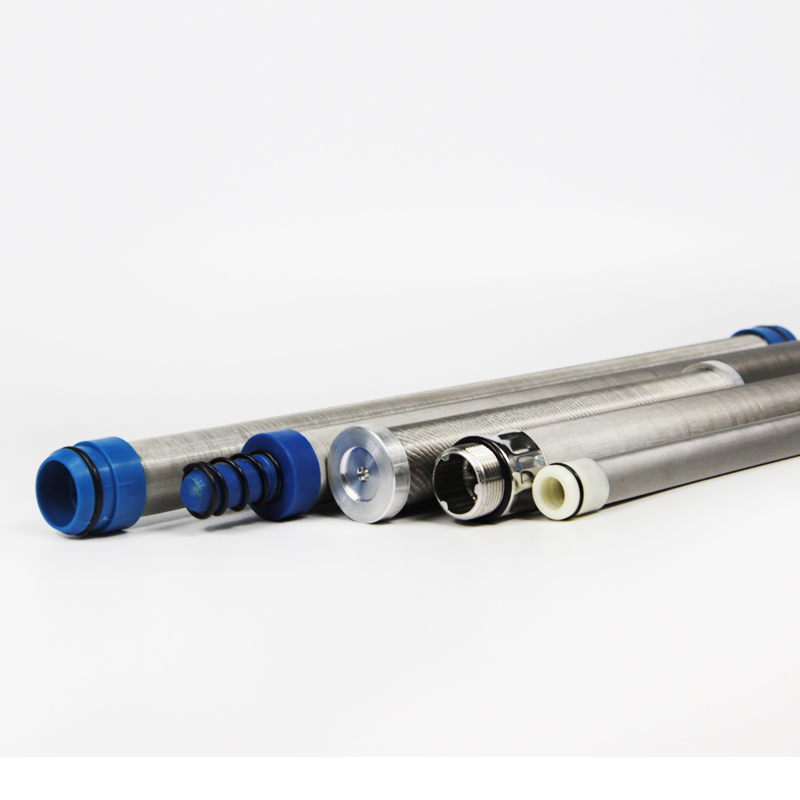

BADHHI-2107-1-A40 marine candle filter cartridge

The following is the basic information of BADHHI-2107-1-A40 marine candle filter:

 Technical parameters

- Filtration accuracy: 20μm, 35μm, 40μm, 60μm, 80μm.

- Working pressure: 16bar, special requirements can be customized.

- Maximum working temperature: 120℃.

- Working flow: 2-2600L/min.

- Pressure difference alarm: 1bar, 3bar, 3.5bar.

- Filter material: glass fiber, stainless steel.

- Sealing material: nitrile rubber, fluororubber.

- Connection method: thread M261.5.

- Filter element diameter: standard 30mm.

- Filter element length: common standard specifications 223mm, 400mm, 440mm, 723mm, 245mm, 422mm, 462mm, 745mm.

 Test standards

- ISO 2941 Test method for filter element rupture resistance.

- ISO 2942 Test method for hydraulic filter element structural integrity.

- ISO 2943 Test method for compatibility of hydraulic filter element materials and liquids.

- ISO 3723 End-to-end compliance test for filter element.

- ISO 3724 Determination of filter element fatigue characteristics.

- ISO 3968 Pressure differential flow characteristics of filter element.

- ISO 4572 Multiple pass method for determining filtration characteristics of filter element.

 Product features

- High filtration efficiency: High-quality and high-efficiency filter material is used to effectively remove impurities in the oil.

- High strength: The metal wire mesh is used as the filter medium, which has high strength and can be repeatedly cleaned and backwashed.

- Easy to install: The filter element and the fixed plate are fixed with bolts or threaded, which is easy to install, disassemble and clean.

 Application areas

- Ship: Used for purification and filtration in ship lubrication systems.

- Metallurgy: used for filtering the hydraulic system of rolling mills and continuous casting machines and filtering various lubrication equipment.

- Petrochemical: separation and recovery of products and intermediate products in the process of oil refining and chemical production, liquid purification, oil field injection water and natural gas particle removal filtration.

- Textile: purification and uniform filtration of polyester melt in the wire drawing process, protective filtration of air compressors, deoiling and dewatering of compressed gas.

- Electronics and Pharmaceuticals: pre-treatment filtration of reverse osmosis water and deionized water, pre-treatment filtration of cleaning liquid and glucose.

- Thermal and Nuclear Power: purification of oil in the lubrication system, speed control system, bypass control system of gas turbines and boilers, purification of water supply pumps, fans and dust removal systems.
