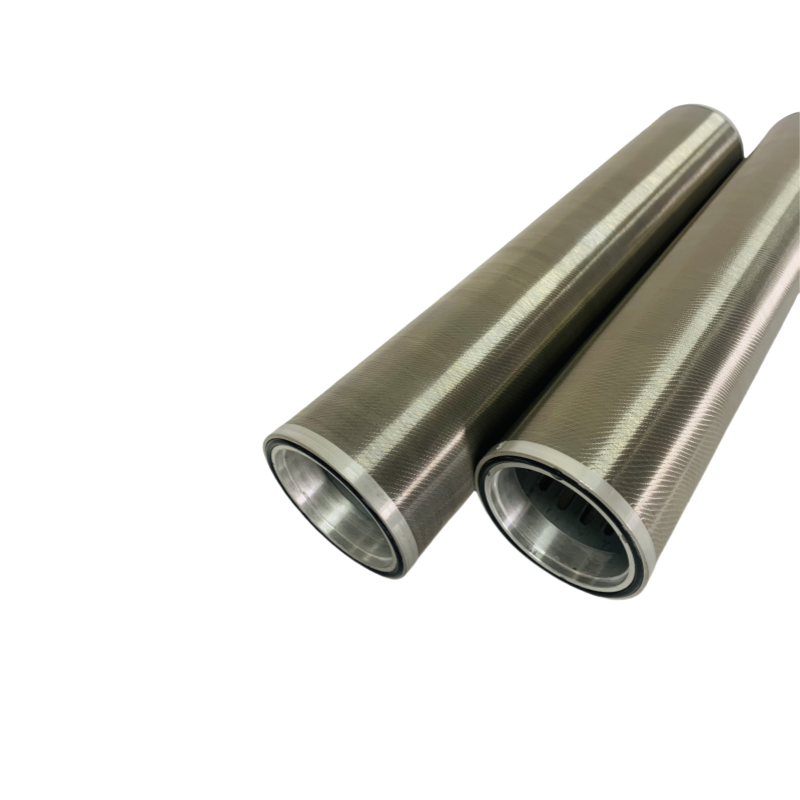

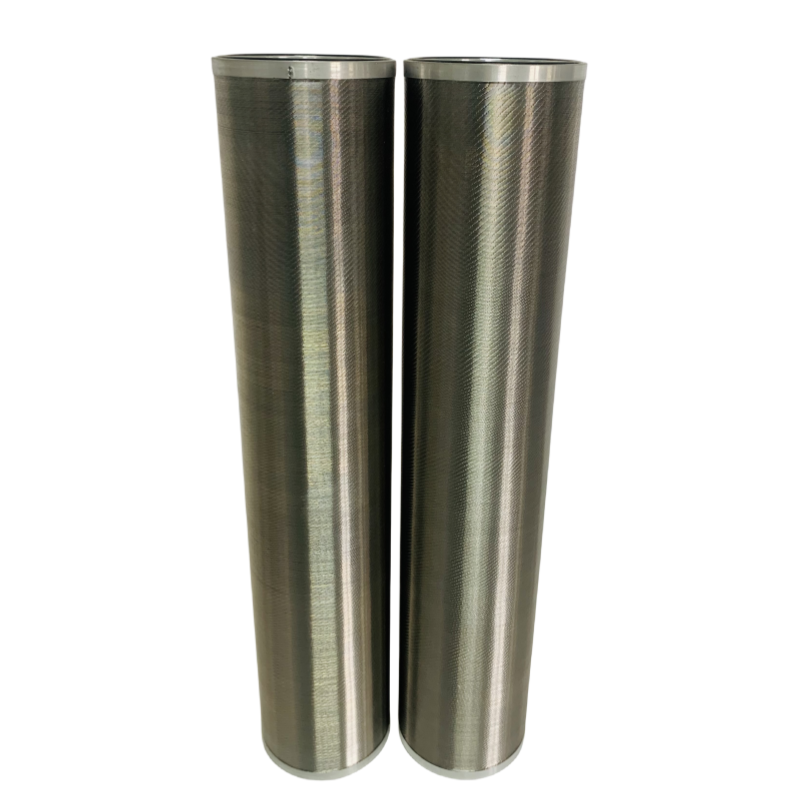

AF232SP Marine Line Gap Filter

The following is the basic information of AF232SP marine line gap filter element:

 Technical parameters

- Working pressure: 16bar, special requirements can be customized.

- Maximum working temperature: 120℃.

- Working flow: 2-2600L/min.

- Pressure difference alarm: 1bar, 3bar, 3.5bar.

- Filter material: glass fiber, stainless steel.

- Sealing material: nitrile rubber, fluororubber.

- Filtration accuracy: glass fiber filter material: 1-70μm; metal mesh filter material: 3-400μm; filter paper filter material: 5-40μm.

- Rated flow: 6~9100L/min.

- Working pressure: ≤450 kg.

- Working temperature: -30~120℃.

 Testing standards

- ISO 2941 filter element rupture resistance test method.

- ISO 2942 Hydraulic filter element structural integrity test method.

- ISO 2943 Hydraulic filter element material and liquid compatibility test method.

- ISO 3723 Filter element end-to-end compliance test.

- ISO 3724 Filter element fatigue characteristic determination.

- ISO 3968 Filter element pressure difference flow characteristic.

- ISO 4572 Filter element multiple pass method for determining filtration characteristics.

- ISO 16889 Filtration ratio/pollution holding capacity.

 Product Features

- Large pollution holding capacity: High-quality imported filter materials are selected, and the quality of the particulate pollution that the filter material can accommodate per unit area is high, the pollution holding capacity is large, and the service life is long.

- Stable filtration accuracy: Advanced processing technology reduces the damage of the filter material due to mechanical force during the folding process, thereby causing filtration failure, and ensures stable and uniform filtration accuracy of the filter element.

- High structural integrity: Passed the standard ISO2942:2004 test many times, the initial bubbling point of the filter element did not drop, and the filter element did not have structural defects that would affect the results of its filtration accuracy assessment. The required accuracy is consistent with the actual accuracy level.

- Strict factory inspection: Complete and strict factory inspection process for raw materials, semi-finished products, and finished products, 100% full inspection of factory products to ensure worry-free product quality.

 Application areas

- Metallurgy: Used for filtration of hydraulic systems of rolling mills and continuous casting machines and filtration of various lubrication equipment.

- Petrochemical: Separation and recovery of products and intermediate products in the process of oil refining and chemical production, liquid purification, oilfield injection water and natural gas particle removal filtration.

- Textile: Purification and uniform filtration of polyester melt in the wire drawing process, protective filtration of air compressors, deoiling and dewatering of compressed gas.

- Electronics and pharmaceuticals: Pre-treatment filtration of reverse osmosis water and deionized water, pre-treatment filtration of detergents and glucose.

- Mechanical processing equipment: lubrication systems and compressed air purification of papermaking machinery, mining machinery, injection molding machines and large precision machinery, dust recovery and filtration of processing equipment and spraying equipment.

- Railway internal combustion engines and generators: filtration of lubricating oil and engine oil.

- Automobile engines and engineering machinery, ships, trucks: various hydraulic oil filters.

- Thermal power and nuclear power: purification of lubrication systems, speed control systems, bypass control system oils of gas turbines and boilers, purification of feed pumps, fans and dust removal systems.

- Shipbuilding: painting, riveting hammers, sandblasting, welding, air separation to produce O₂, CO₂.

- Glass: blowing bottles and glassware, blowing lamps and electron tubes, combustion gas, transmission of raw materials, glass etching, polishing and drilling, conveying glass, pneumatic control, vacuum hangers; air separation to produce N₂: float glass.

- Refinery: Combustion gas, emptying and cleaning oil circuits, lifting and hoisting machines, drive control systems, catalyst recycling, sandblasting, painting.

- Electronic precision: Painting, assembly, cleaning, electroplating.

- Fiber: Automatic machinery, wire suction gun, drying, dyeing.

- Foundry: Iron car positioning, cleaning equipment, sand conveying, driving pneumatic tools, sanding machines, grinding machines, lifting hoists and hoists, pneumatic picks, compactors, steel ratio brushes, sandblasting, sand screening, mud spraying cores.

- Forging: Blowing oxide scale, furnace door air curtain, lifting hoists and hoists, driving bending and straightening machines, driving clutch brakes and clamping devices, driving forging hammers, oil burners.

- Sheet Metal: stirring solutions, transporting chips, jet cleaning, driving packaging presses, driving platen chuck clutches and positioners, pneumatic tools, finishing hammers, pneumatic picks, drills, grinders, hoists and lifts, combination tools, riveters, sandblasting, spraying lubricants, spraying paint, container leak detection.
