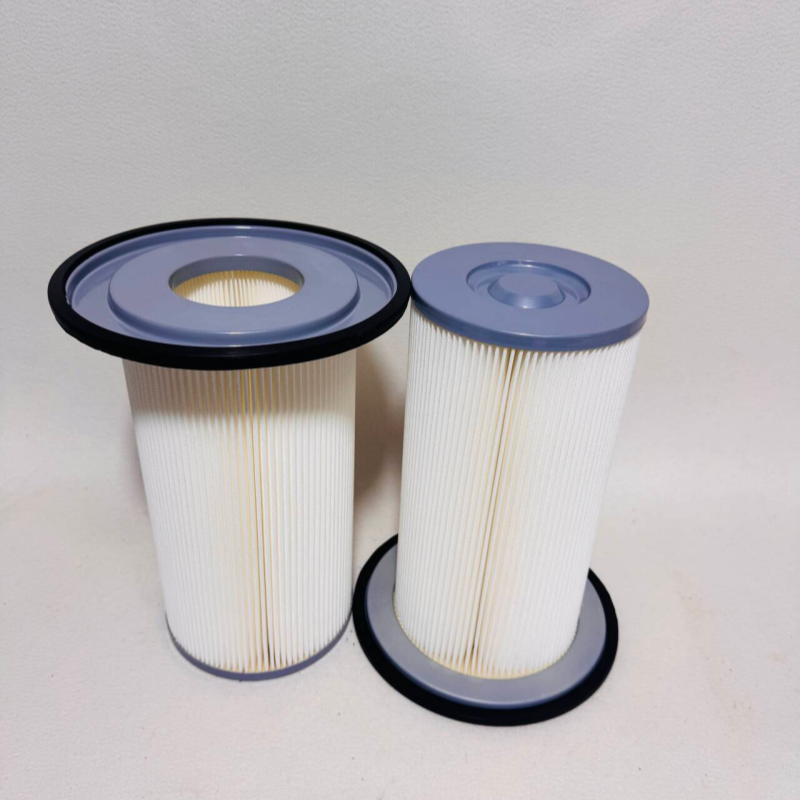

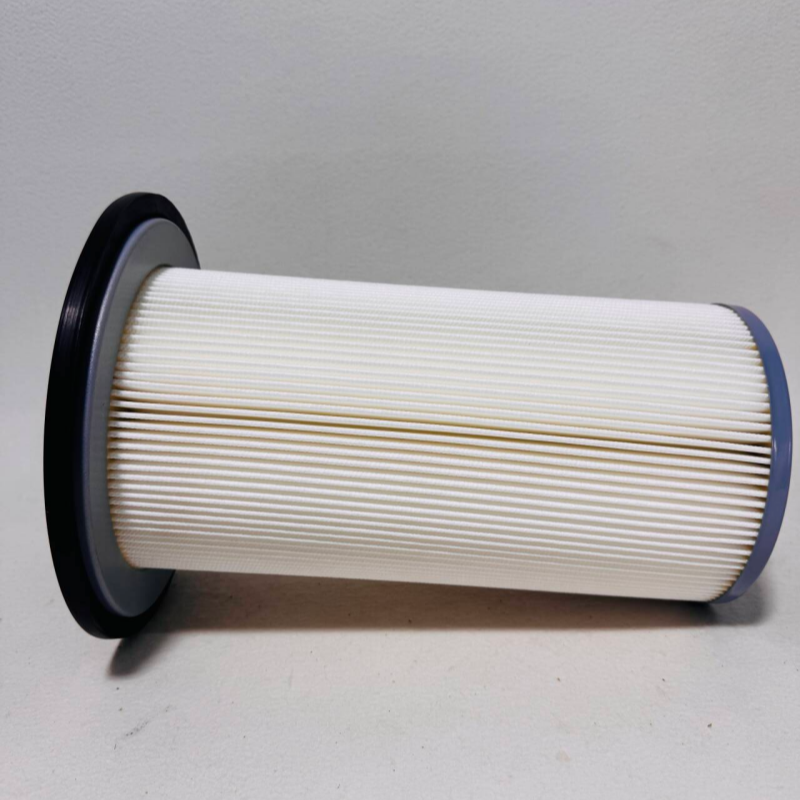

The basic information for the 79-82-045-981 air dust collector filter element (also written as 7982045981 or SOMOS 79-82-045-981) is as follows:

1. Main Applications

Used at the air inlet of equipment such as vacuum pumps, vacuum feeders, pharmaceutical powder conveyors, and centrifugal air compressors, it filters out dust, pharmaceutical powder, carbon powder, and other particles from the air, providing a clean air source for downstream pneumatic systems and preventing wear on rotors, impellers, and valves.

2. Structure and Materials

Commonly a cylindrical filter cartridge, with an outer diameter of approximately 29.5 cm, a height of approximately 28.5 cm, and a fold depth of 4 cm (dimensions for reference only, actual product may vary); the filter media is mostly polyester fiber non-woven fabric, but glass fiber, PP, PTFE membrane coatings, etc., are also available to meet different precision and temperature resistance requirements.

3. Filtration Performance

- Filtration accuracy: 0.1–500 µm selectable, commonly used grades 1–10 µm;

- Rated flow rate: 6–9100 L/min (related to filter cartridge length and number of folds);

- Operating temperature: -30 ℃～+120 ℃;

- Initial differential pressure: ≤ 200 Pa (clean condition), recommended replacement differential pressure 800–1200 Pa.

4. Applicable Industries

Pharmaceutical, food vacuum conveying, centrifugal air compressors, power plants, steel mills, tunnel boring machines, papermaking, chemical, textile, engineering vehicles, and other applications requiring continuous dust removal.
