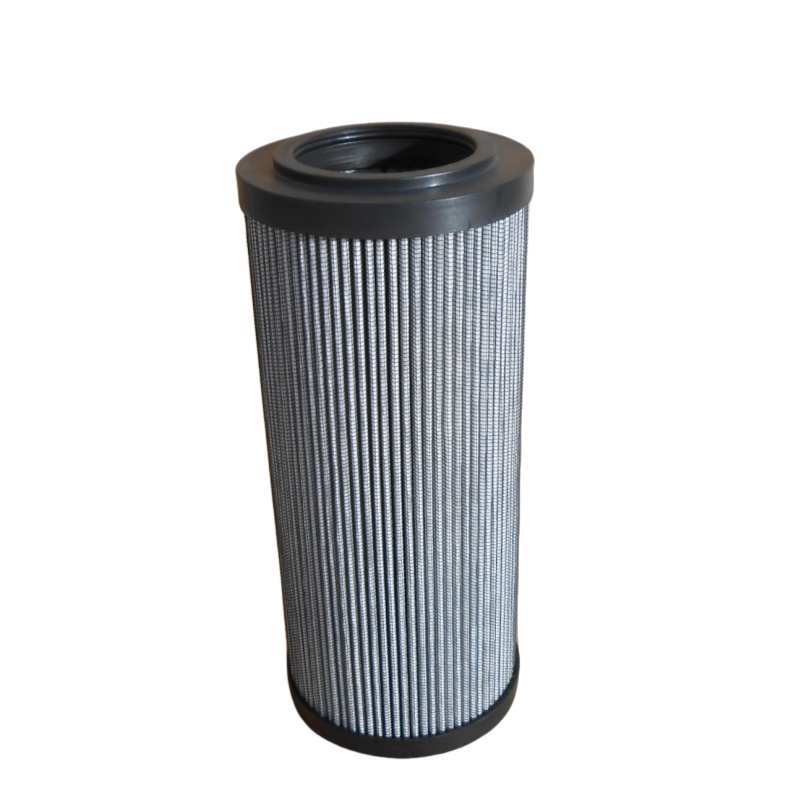

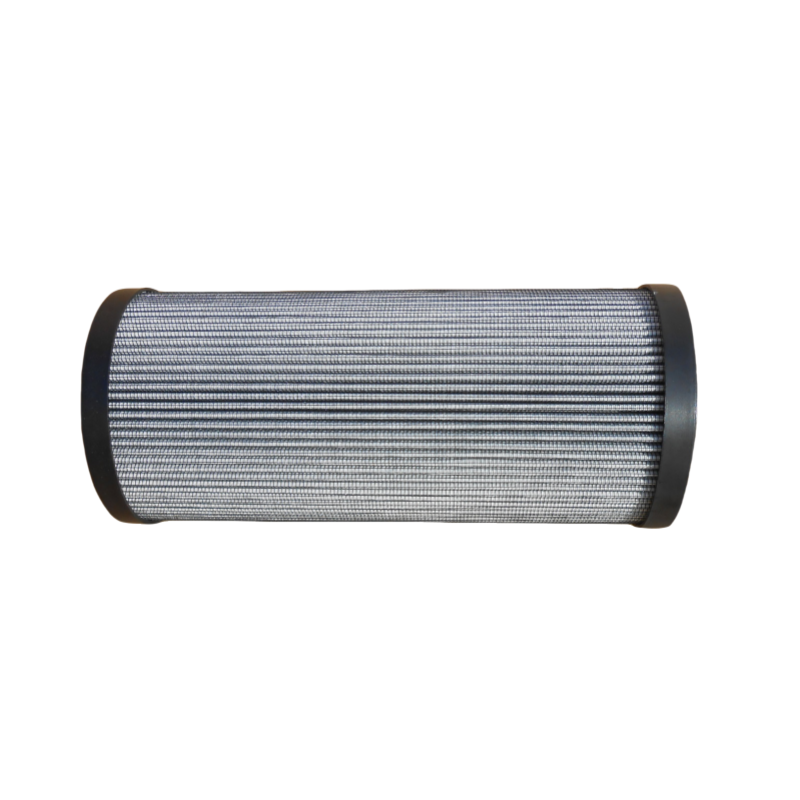

Product Model: 6.225 P10S0000 / R928019340

   Primary Function: Serves as the fine filtration element within steam turbine lubrication oil purification units. It is utilized in hydraulic or lubrication oil systems to continuously remove solid particles, colloidal substances, and trace amounts of moisture from the fluid, thereby ensuring the clean and reliable operation of the system.

   Typical Applications: Primarily employed in steam turbine lubrication systems at power plants, and also widely utilized across various sectors including steel manufacturing, marine vessels, paper production, tunnel boring machines, and heavy construction machinery. Technical Specifications

 Parameter  Typical Value / Range

 Filter Media Type  Glass Fiber, Metal Mesh, Filter Paper, Sintered Felt, etc.

 Filtration Precision  Glass Fiber: 1–70 μm; Metal Mesh: 3–400 μm; Filter Paper: 5–40 μm (Specifics depend on the filter media)

 Max. Operating Pressure  ≤ 450 kg (approx. 45 MPa); Lowpressure version also available at 16 bar

 Operating Temperature  30°C ~ +120°C

 Rated Flow Rate  Ranging from 6 to 9100 L/min, depending on the specific filter housing design

 Applicable Media  Hydraulic Oil, Lubricating Oil, Gear Oil, WaterGlycol, etc.

Testing Standards

This filter element complies with the testing requirements of the following international standards:

 ISO 2941  Filter Element Collapse/Burst Resistance Test Method

 ISO 2942  Hydraulic Filter Element Structural Integrity Test Method

 ISO 2943  Hydraulic Filter Element Material and Fluid Compatibility Test Method

 ISO 3724  Determination of Flow Fatigue Characteristics of Filter Elements

 ISO 3968  Filter Element Pressure Drop vs. Flow Rate Characteristics

 ISO 16889  Determination of Filtration Ratio / DirtHolding Capacity (MultiPass Method)
