I. 0500R010BN4HC (Return Line Filter Element – R Series)

 Model Breakdown

 0500: Size Series (Flow Rating)

 R: Return Line Filter Element

 010: 10 μm Absolute Filtration

 BN4HC: Betamicron Glass Fiber, Medium Collapse Resistance (≈25 bar)

 Basic Parameters

 Filtration Rating: 10 μm (Absolute)

 Filter Media: Pleated Glass Fiber (BN4HC)

 Outer Diameter × Length: Approx. φ95 mm × 276 mm

 Operating Pressure: ≤25 bar (Lowpressure return line)

 Collapse Pressure Rating: 25 bar

 Operating Temperature: −30°C to +110°C

 Seals: NBR (Nitrile); FKM (Fluorocarbon) optional

 Flow Direction: OutsidetoInside

 Bypass Valve: Opens at approx. 3 bar

 Media: Mineral hydraulic oil, lubricating oil, emulsions, waterglycol mixtures

 Applications

Return line filtration in hydraulic systems; protects the reservoir and reduces system contamination. Commonly used in the return lines of hydraulic power units, construction machinery, injection molding machines, and wind turbine gearboxes.

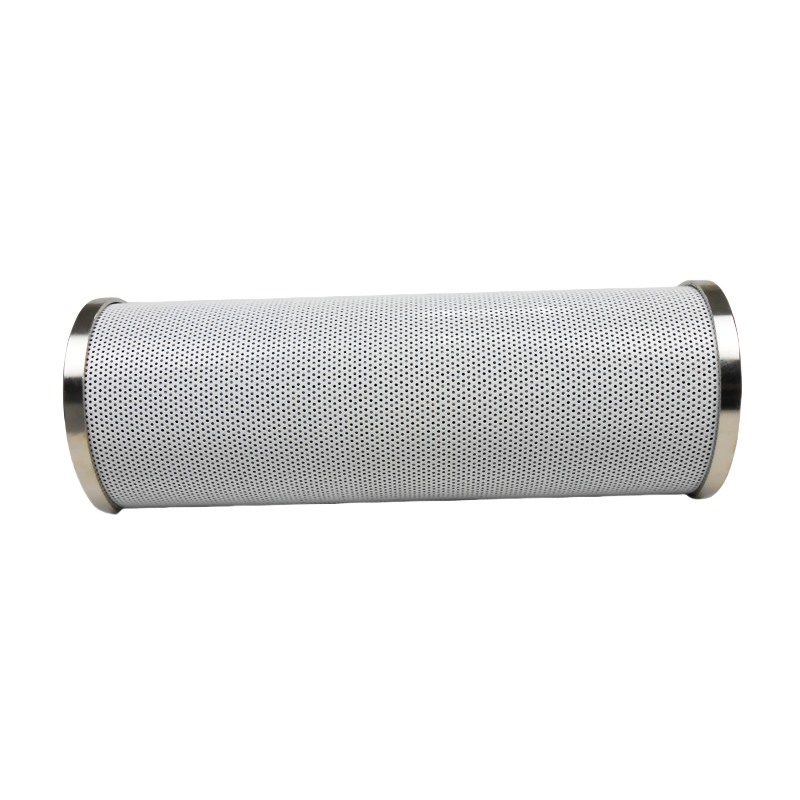

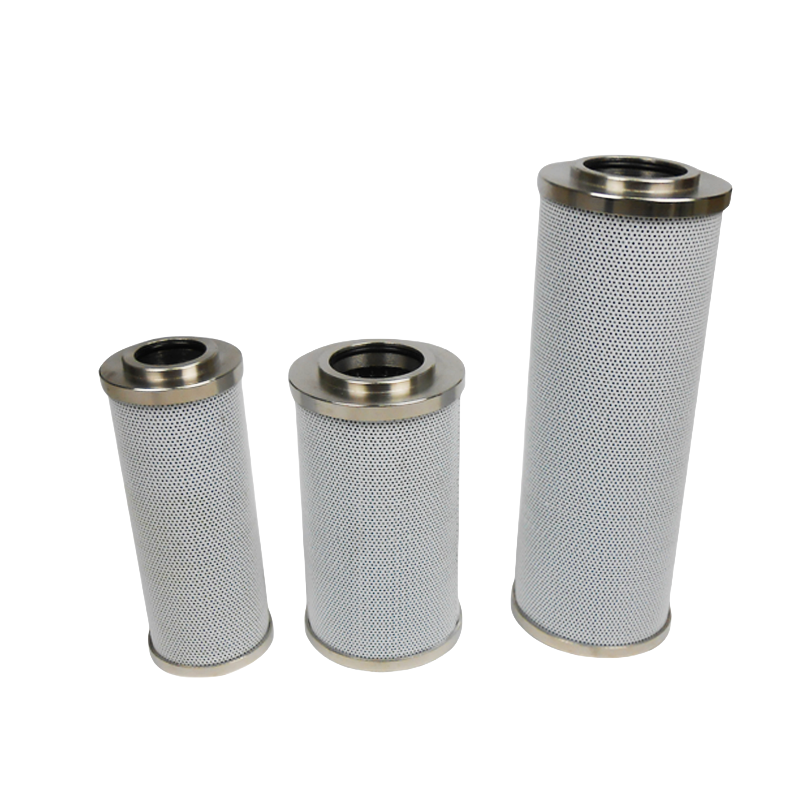

 II. 0067D005BH4HC (HighPressure Filter Element – ​​D Series)

 Model Breakdown

 0067: Size Dimensions (67 Series)

 D: Pressure Line (Highpressure line)

 005: 5 μm Absolute Filtration

 BH4HC: Betamicron High Collapse; High Collapse Resistance (210 bar)
