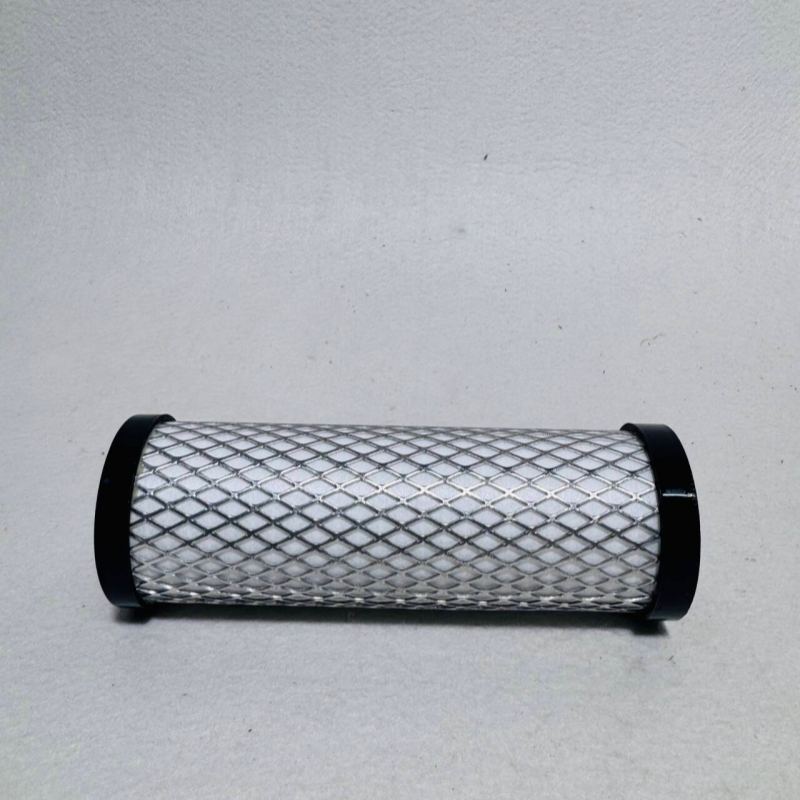

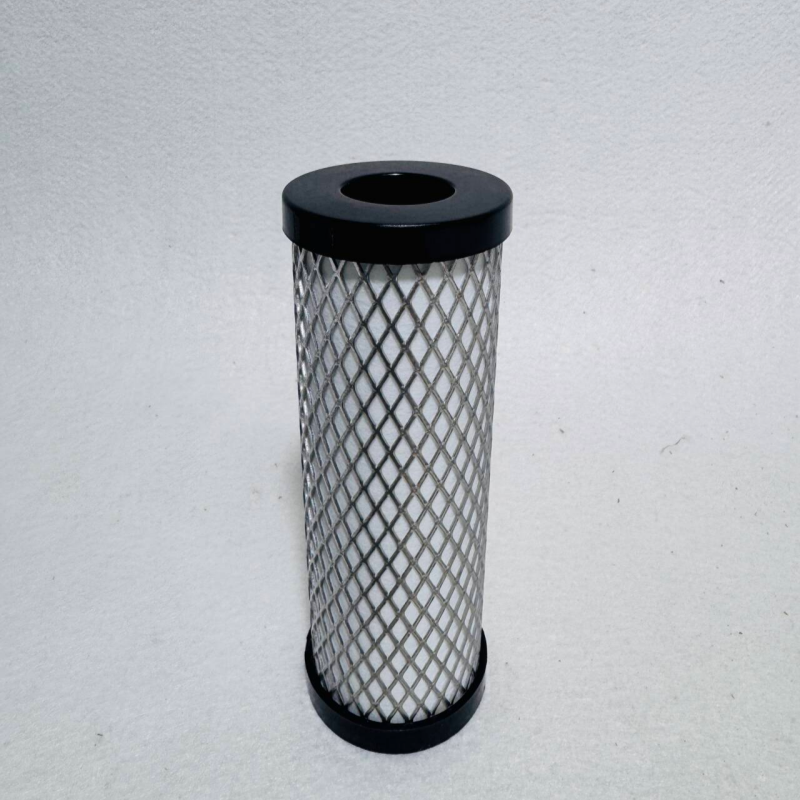

I. 3PU15060 (Parker Finite Compressed Air Precision Filter Cartridge)

Series: H Series (For HN3S/HN4S Filters)

Type: Compressed Air Dust Collector Filter Cartridge (Q Grade)

 1. Dimensions

 Outer Diameter: 2.0 in (approx. 51 mm)

 Height: 6.0 in (approx. 152 mm)

 Interface: 1.37 in standard end cap

 2. Filtration Parameters

 Accuracy: 3 μm (particles)

 Filter Media: Cellulose/Glass Fiber Composite

 Maximum Operating Temperature: 79℃

 Suitable Pressure: ≤10 bar

 3. Applications

 Prefilter for compressed air, protecting downstream precision filter cartridges

 Compatible Models: Finite HN3S3PU, HN4S3PU Filters

 Alternative Models: OF150603PU/P, EF15060PU, P6015

 II. ELT2010ZP (Pleated Precision Filter Cartridge, Water/Gas Treatment Universal)

Type: 20" Pleated Microporous Filter Cartridge (Liquid/Gas Precision Filtration)

 1. Model Analysis

 ELT: Series Code

 20: Length 20" (508 mm)

 10: Accuracy 1.0 μm

 ZP: End Cap + Sealing Ring Configuration (222 Interface, EPDM Ring)

 2. Specifications

 Filter Media: PP Polypropylene Pleated Membrane

 Accuracy: 1 μm (Absolute)

 Outer Diameter: 69 mm; Inner Diameter: 33 mm

 Interface: 222/226 Optional

 Operating Temperature: ≤60℃; Pressure Resistance: ≤6 bar

 3. Applications

 Pure water/ultrapure water, chemical, electronics, food and beverage

 Prefiltration for removing particles, colloids, and bacteria

 Replacement: Same specification 20" 1μm PP pleated filter cartridge (such as EPE, 3M alternatives)
