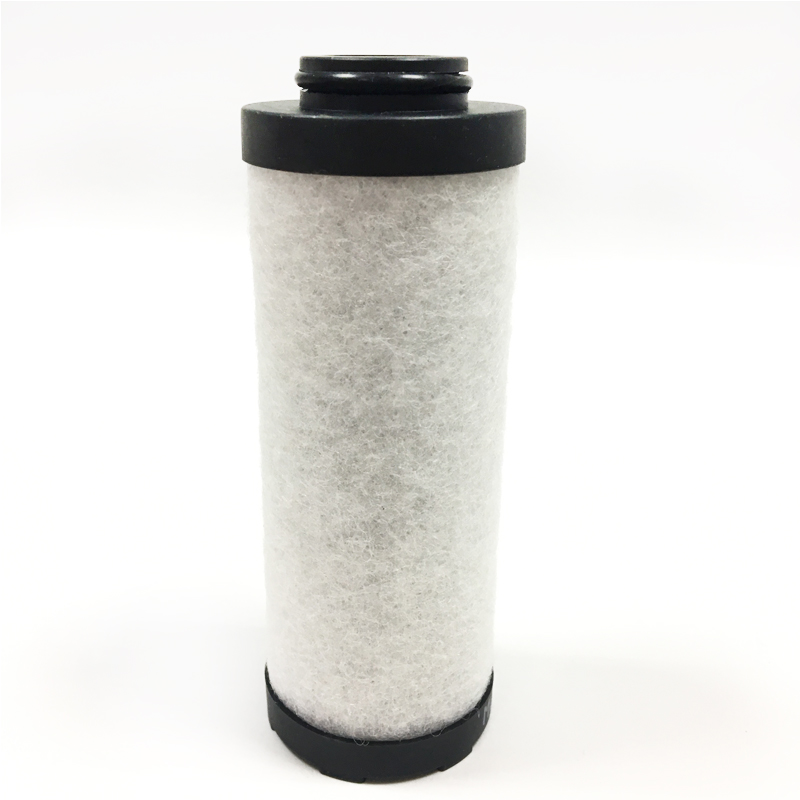

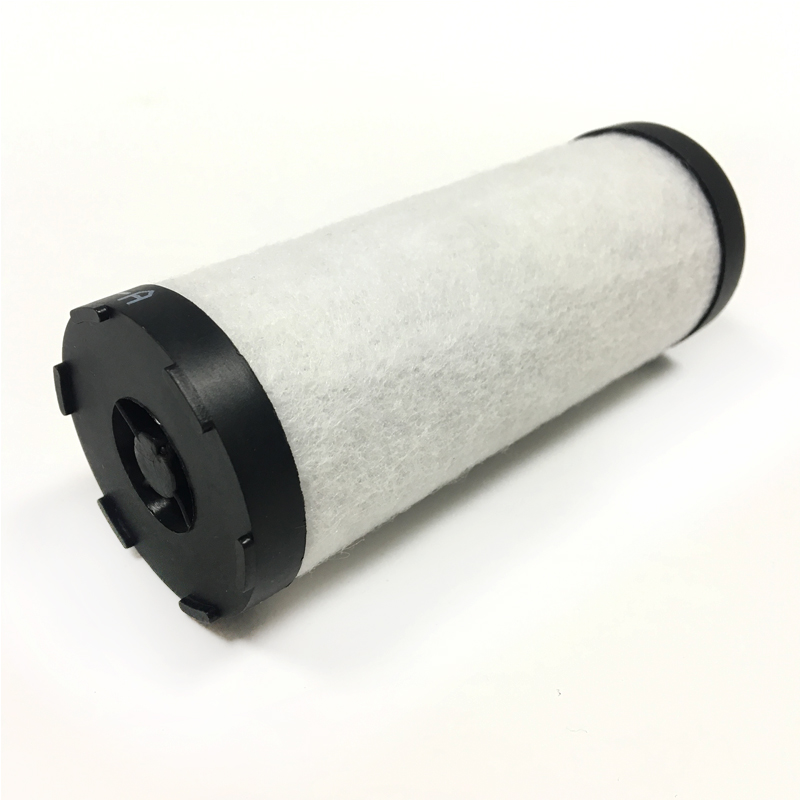

3M, 24013641, 2401361715, 1829207031 Precision Filter Cartridges
3M, 24013641, 2401361715, 1829207031 Precision Filter Cartridges
.jpg)
.jpg)
1. 24013641
Model Alias: HF40PP005A01 / 70024013641
Length: 40" (1016 mm)
Outer Diameter: 152 mm (6")
Filtration Accuracy: 5 μm Absolute (β₅≥1000)
ORing Material: A = Silicone Rubber
Flow Rate (Water): Approx. 48 m³/h (40")
Replacement Pressure Drop: Recommended 2.4 bar
2. 2401361715
Model Alias: HF60PP010C01 / 7002401361715
Length: 60" (1524 mm)
Outer Diameter: 152 mm (6") Filtration Accuracy: 10 μm Absolute (β₁₀≥1000)
ORing Material: C = Ethylene Propylene Rubber (EPR)
Flow Rate (Water): Approx. 69 m³/h (60")
Replacement Pressure Drop: Recommended 2.4 bar
3. 1829207031
Model Alias: HF40PP020B01 / 7001829207031
Length: 40" (1016 mm)
Outer Diameter: 152 mm (6")
Filtration Accuracy: 20 μm Absolute (β₂₀≥1000)
ORing Material: B = Fluorocarbon Rubber (FKM/Viton)
Flow Rate (Water): Approx. 54 m³/h (40")
Replace differential pressure: Recommended 2.4 bar
Leah Sales Manager
Email: [email protected]
Mob & WhatsApp & Wechat & Skype: (+86)19937372138
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
