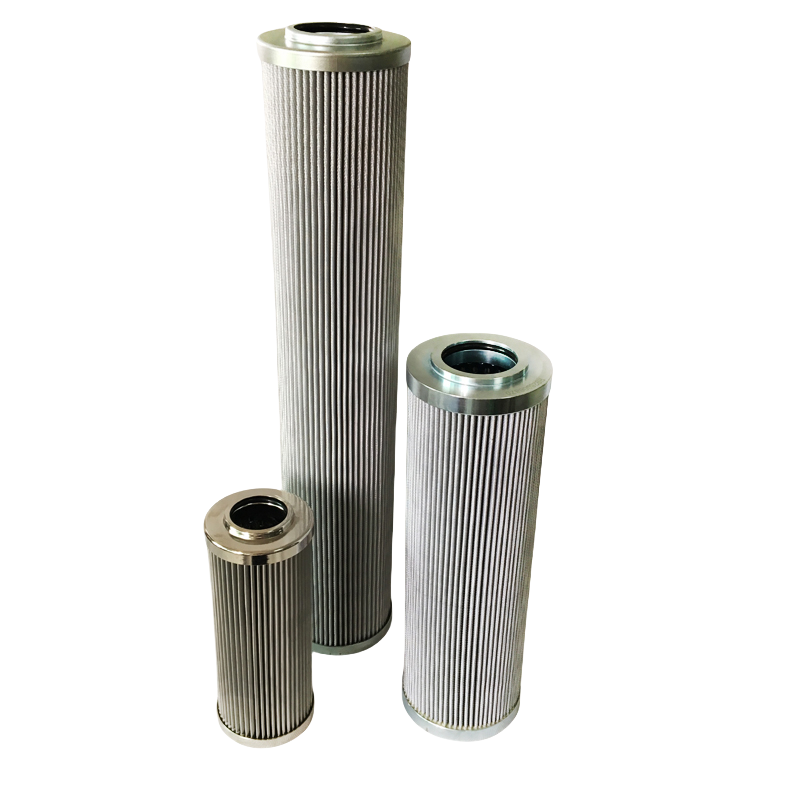

The basic information for the high-pressure oil filter element 3830-12-133 is as follows:

1. Filtration Accuracy

Glass fiber: 1–70 µm; Metal mesh: 3–400 µm; Filter paper: 5–40 µm; Customizable 0.01–500 µm.

2. Operating Pressure and Temperature

- Rated pressure: ≤420 bar (420 kg·f/cm²), customizable up to 450 bar.

- Operating temperature: -30 ℃～+115 ℃ (general type), high-temperature type 120 ℃.

3. Flow Characteristics

Rated flow rate: 2–2600 L/min; Initial pressure differential ≤0.2 MPa; Recommended replacement pressure differential of 1 bar, maximum allowable 3.5 bar.

4. Filter Media and Structure

Pleated fiberglass / stainless steel mesh / sintered felt / powder sintering / polypropylene / filter paper; iron housing, screw-on or flange mounting; optional bypass valve and blockage indicator (alarm values ​​1 bar, 3 bar, 3.5 bar optional).

5. Testing Standards

ISO 2941–2943, 3723, 3724, 3968, 4572, 16889 (bursting resistance, structural integrity, material compatibility, fatigue, differential pressure-flow rate, multiple passes).

6. Typical Applications

High-pressure hydraulic systems in rolling mills, continuous casting machines, coal mills, tunnel boring machines, power plants, steel mills, shipbuilding, chemical, textile, and mining industries.
